Ebaa Iron 2012pv Megalug Retainer Gland Mj X C900 Pvc 12 in

Product Description

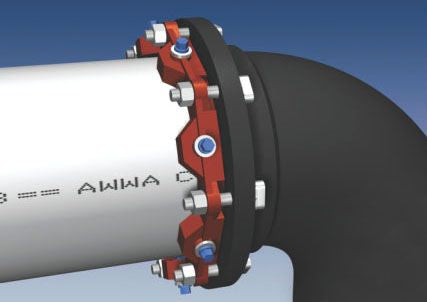

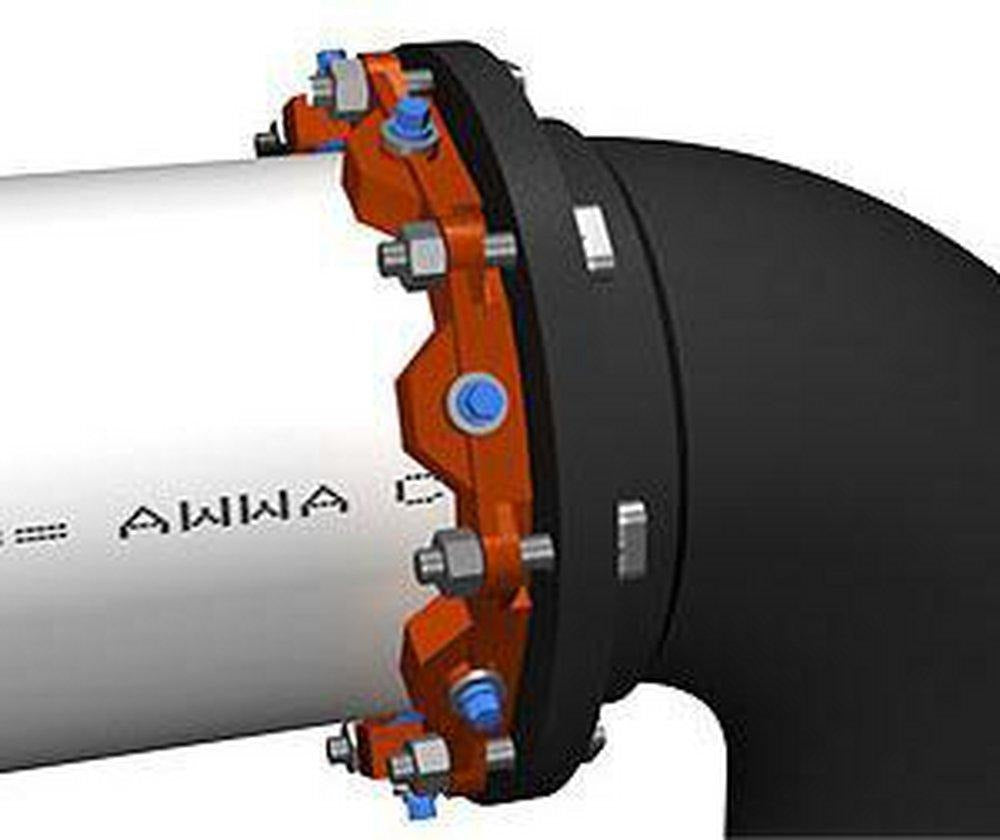

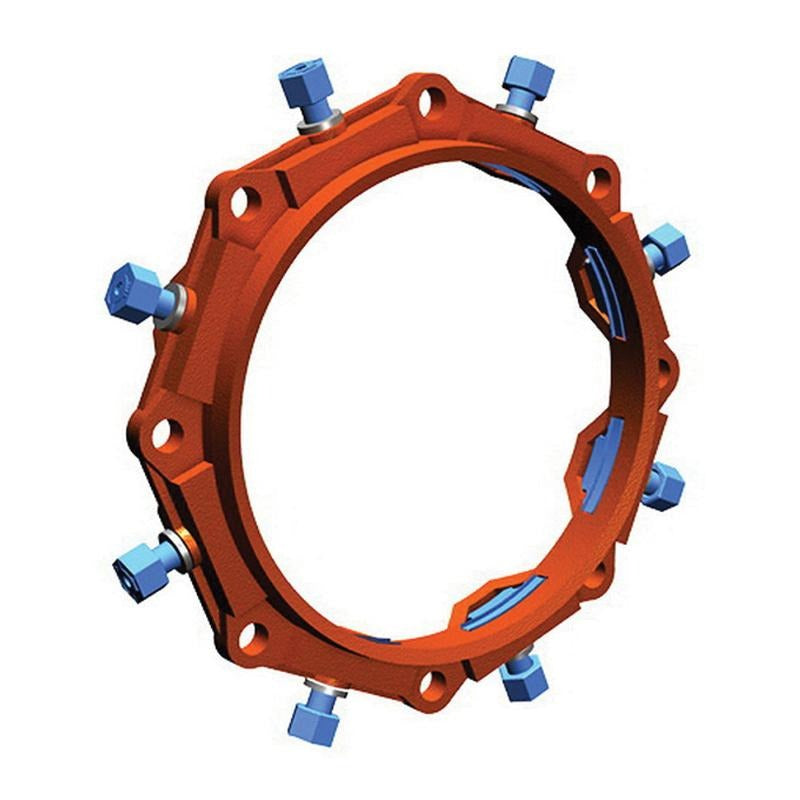

The EBAA IRON 2012pv MegaLug Retainer Gland is a mechanical joint restraint fitting designed to secure 12-inch AWWA C900 PVC pipe at mechanical joint connections. It provides thrust restraint by transferring pipe end loads through the gland to the bell of the fitting or valve, eliminating the need for thrust blocks in many installations. Weighing 28.90 pounds, this unit is sized for 12-inch pipe and is installed by water and wastewater utility crews, municipal contractors, and licensed plumbing or utilities professionals working on pressurized distribution systems.

This retainer gland is used on 12-inch C900 PVC pressure pipe installations in water distribution, transmission mains, and related municipal or industrial piping systems. The mechanical joint interface mates with standard MJ fittings and valves conforming to AWWA specifications. It is commonly installed at tees, elbows, reducers, valves, and dead ends where unrestrained joints would otherwise require concrete thrust blocking.

Key Features

• Restrains 12-inch AWWA C900 PVC pipe at mechanical joint connections
• Eliminates dependence on concrete thrust blocks in qualifying soil and pressure conditions
• Mechanical joint interface conforms to AWWA standards for interchangeability with standard MJ fittings
• 28.90-pound unit weight consistent with full-size ductile iron construction
• Designed for pressurized water distribution and transmission applications

Compatibility

Designed for use with 12-inch AWWA C900 PVC pipe at standard mechanical joint fittings and valves. Verify compatibility with applicable AWWA pressure class and system operating pressure before installation.

Installation Notes

Installation is performed by qualified water and wastewater utility mechanics or licensed contractors. Depressurize and isolate the pipeline section before assembly. Follow AWWA C600 installation guidelines for mechanical joint assembly, including proper gasket seating and fastener torque sequencing using manufacturer torque tables. Do not over-deflect the pipe joint beyond allowable limits specified for the pipe class in use.

Technical Specifications

• Fitting Size: 12 inches
• Item Weight: 28.90 pounds
• Pipe Standard: AWWA C900 PVC
• Joint Type: Mechanical Joint (MJ)

Standard Information

• Brand: EBAA IRON
• Manufacturer Part Number: 2012pv
