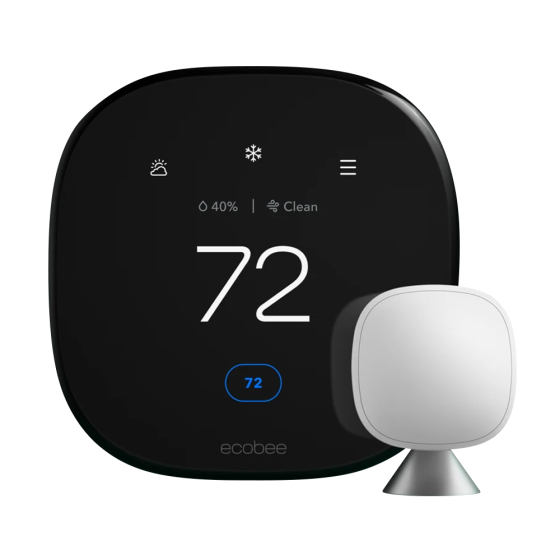

EB-STATE6PB-01 ecobee Smart Thermostat Premium Builder Edition

Product Description

The EB-STATE6PB-01 ecobee Smart Thermostat Premium Builder Edition is suitable for many 24VAC HVAC systems, including gas, oil, electric, and dual fuel setups. It can support both conventional and heat pump configurations. This thermostat features a four-inch full-color touchscreen display, providing detailed system information. It is equipped with various sensors that monitor temperature, humidity, occupancy, air quality, and more. The device connects via dual-band Wi-Fi and Bluetooth, offering flexibility in network connection.

• Compatible with various HVAC systems, including conventional and heat pumps.
• Includes a built-in air quality monitor for VOC and eCO2 levels.
• Can be controlled remotely through iOS, Android apps, and Apple Watch.

Product Highlights

The EB-STATE6PB-01 enhances home comfort through smart technology while ensuring energy efficiency.

Product Information

Standard Information

• Brand: ecobee
• MPN: EB-STATE6PB-01

Technical Specifications

• Compatibility: Works with most 24VAC HVAC equipment including gas, oil, electric, dual fuel, forced air, boilers, and PTACs.
• Display: 4-inch full-color touchscreen LCD with a resolution of 540 x 540 pixels.
• Connectivity: Dual-band Wi-Fi (2.4GHz and 5GHz), Bluetooth 5.0.
• Powering Method: Hardwired with optional Power Extender Kit for systems without C-wire.
• Occupancy Sensors: Radar sensing for occupancy and proximity detection.
• Temperature Range: Desired range from 45°F to 92°F.
• Humidity Range: Operating from 5% to 95% RH (non-condensing).
• Dimensions: Length of 4.09 inches, width of 4.09 inches, and depth of 1.02 inches.
