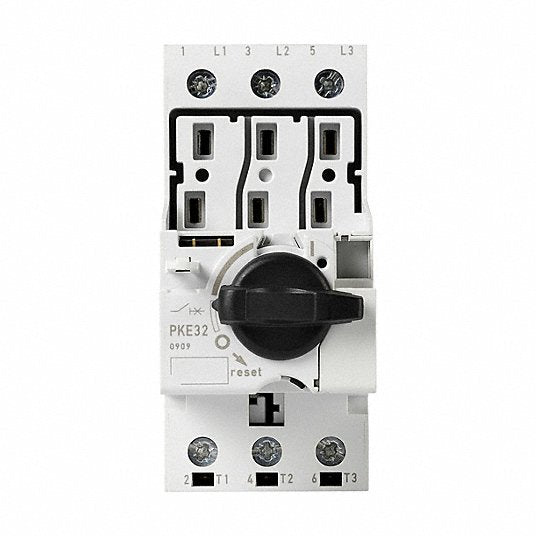

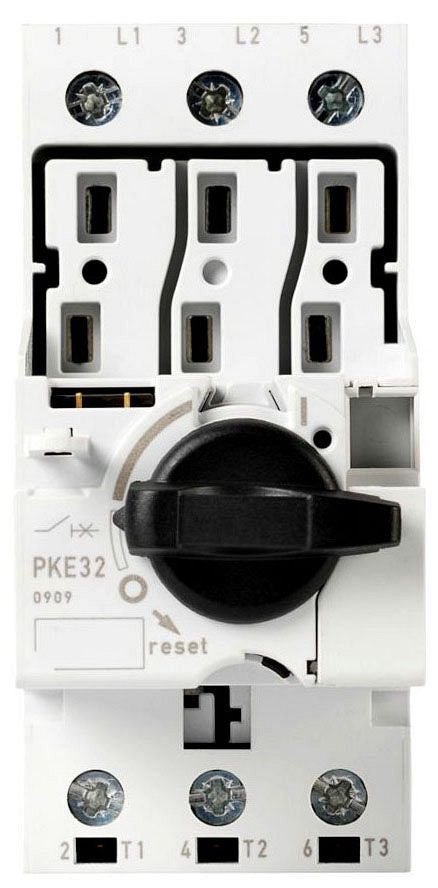

Eaton XTPE032B motor protector base, 32A

Product Description

The EATON XTPE032B is a motor protector base. It is part of the XT IEC Power Control Family and is designed for use with XT products. This base is rated for a maximum of 32A and is compatible with Eaton contactors and motor starters. It has a maximum voltage rating of 600V AC.

• For use with XT products
• Maximum current: 32A
• Maximum voltage rating: 600V AC

Product Highlights

The EATON XTPE032B motor protector base is designed to work with XT series contactors and motor starters, providing reliable motor protection.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTPE032B
• Country of Origin: Germany

Technical Specifications

• Brand: Eaton - Cutler Hammer
• Family Name: XT IEC Power Control Family
• Manufacturer Part Number: XTPE032B
• Series: XT IEC Series
• Special Features: For use with XT products
• Type: Base
• Compatible with Series: XT
• Accessory Type: Manual Motor Protector Base
• Number of Poles: 3
• Current AC: 32 A
• Maximum Voltage Rating: 600V AC
• Horsepower @ Three Phase - 240V AC: 7-1/2 hp
• Horsepower @ Three Phase - 480V AC: 15 hp
• Frame Size: B
• Overall Depth: 2 in
• Overall Height: 4 in
• Overall Width: 4.5 in
• Standards: CSA C22.2; UL 508
• Current Type: AC
• Maximum Amperage: 32 A
• Voltage: 600 V
• Model: PKE32
• MPN: PKE32
