Eaton XTPAXSATR20 Indicating Auxiliary Contact 2NO

Product Description

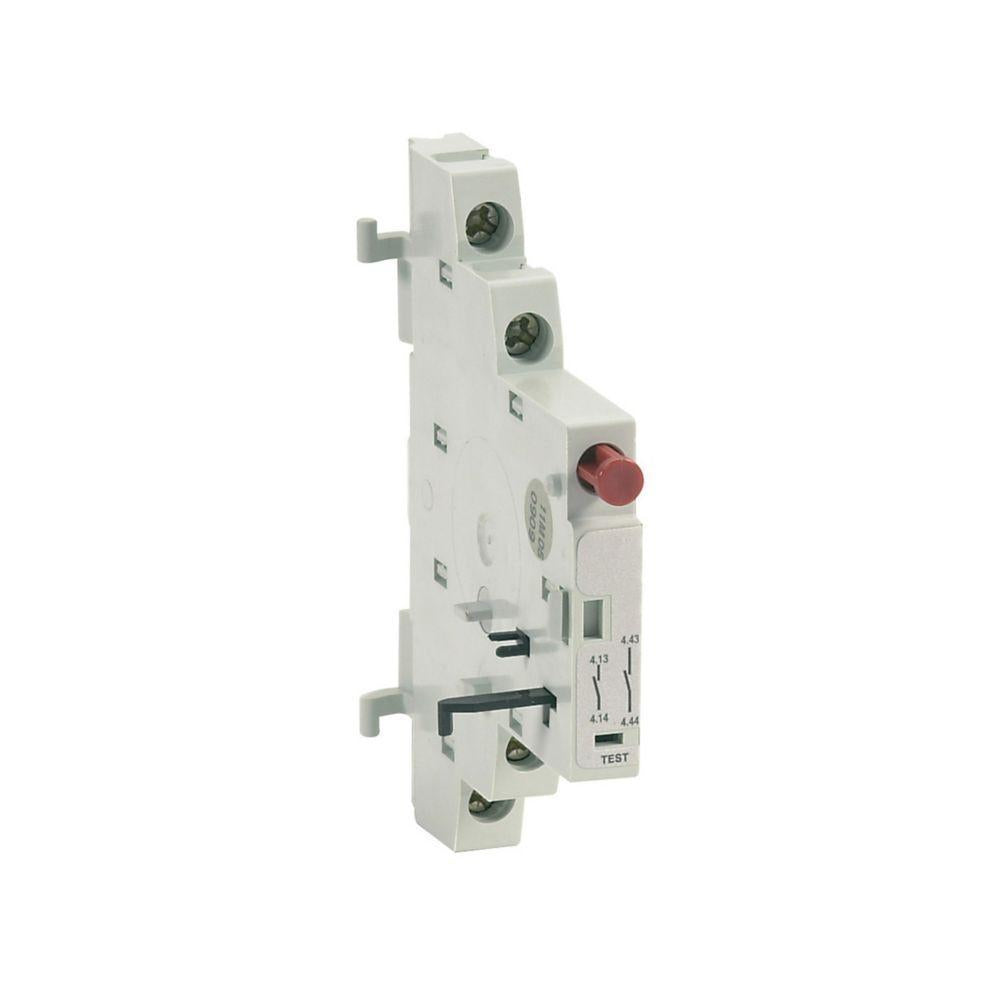

The EATON XTPAXSATR20 is an indicating auxiliary contact with a 2NO contact configuration. It can be fitted on the right side of manual motor protectors and combined with standard auxiliary contacts. It features general trip indication for overload and short-circuit trip with a manually resettable red indicator.

• 2NO contact configuration
• Can be fitted on the right side of manual motor protectors
• Trip indication for overload and short-circuit

Product Highlights

The EATON XTPAXSATR20 indicating auxiliary contact is designed for use with manual motor protectors, providing trip indication and easy integration.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTPAXSATR20
• Country of Origin: United States

Technical Specifications

• Type: Indicating
• Accessory Type: Auxiliary Contact
• Alternate Mfr Part Number: XTA292090
• Brand: Eaton - Cutler Hammer
• Contact Configuration: 2NO
• Contact Form: 2 NO
• Current Rating: 3.5 A
• Family Name: XT IEC Power Control Family
• Indicator: Trip indicator
• Manufacturer Part Number: XTPAXSATR20
• Mounting Type: Side
• Numeric ID: 4079255
• Series: XT Series
• Special Features: Side
• Supply Voltage: 500 VAC, 250 VDC V
• UPC Code: 4015080728986
• UNSPSC: 39121529
• Used On: Manual Motor Protector (XTPB/XTPR/XTPM) and Manual Transformer Protector (XTPT)
• Model: XTPAXSATR20
• Poles: 2
• Amps: 10
• Main function: Auxiliary contact
• Product series / family name: XT IEC power control
• Functions: Side-Mounting trip Indicating auxiliary Contact block
• Normally Open (NO) auxliary contacts: 2 NO contacts
• Type of terminals: Screw-clamp
• Manufacturer product status: Commercialized
