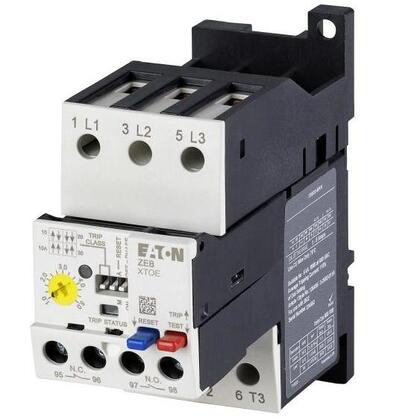

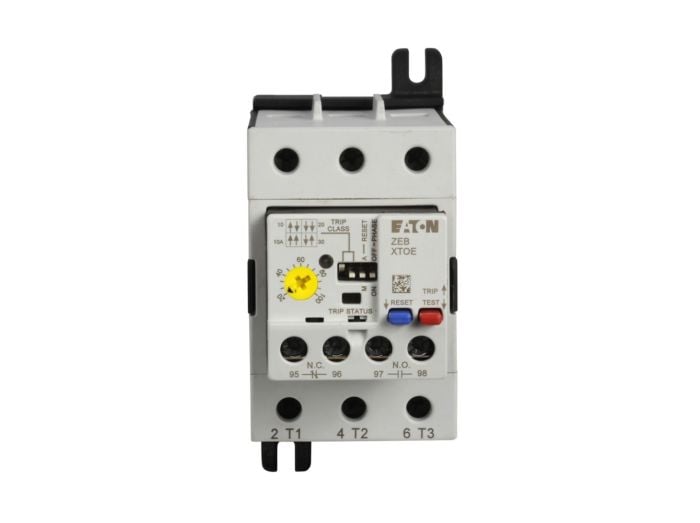

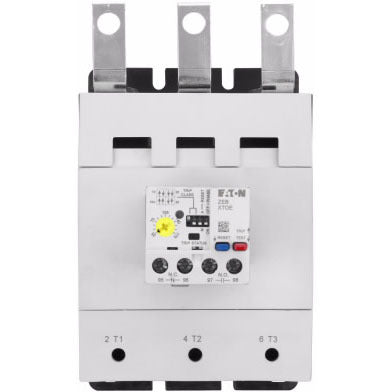

Eaton XTOE100GCSS Overload Relay 20-100A

Product Description

The Eaton XTOE100GCSS is an electronic overload relay from the XT series, designed for IEC power control. It features a selectable trip class of 10A, and is suitable for a 105mm frame. This overload relay provides reliable and accurate protection with communications capabilities. It is a flexible choice for applications requiring easy-to-use, reliable protection.

• Electronic programmable Overload Protection Relay (EOR)
• Rated Current 20A - 100A (Overload Release)
• Selectable 10, 20 or 30 Trip Class

Product Highlights

Compact, space saving, and easy to install, the Eaton electronic overload relay is an efficient and effective solution for customer applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTOE100GCSS
• Country of Origin: United States

Technical Specifications

• Catalog Number: XTOE100GCSS
• UPC: 786685412603
• Product Length/Depth: 6.2 in
• Product Height: 6 in
• Product Width: 2.33 in
• Compliances: CE Marked
• Certifications: CSA Certified UL Listed
• Product Type: Electronic overload relay
• Overload range: 20-100A
• Type: IEC, Overload Relay, Electronic
• Frame size: 105 mm
• Mounting method: Separate
• Trip type: Selectable 10 A, class 10 ,20, 30
• Primary brand: Eaton
• Secondary brand: Klockner-Moeller
• Main function: Electronic Overload Relay (EOR)
• Product series / family name: XT IEC power control
• Sub-range name: XTOE
• Functions: Electronic programmable Overload Protection Relay (EOR)
• Rated current: 20A - 100A (Overload Release)
• Trip unit type: Electronic
• Protection settings: (Thermal Overload) 20A - 100A
• Degree of protection: IP20
• Net Width (mm): (Contactor Frame) 105 mm
• Minimum current: 20 A
• Maximum current: 100 A
• Manufacturer product status: Commercialized
• Rated Voltage (AC) - Phase-to-phase: 690 V
• UPC code: 78668541260
• Compliant with standard(s): NEMA ICS1
• UL991: UL991
• IEC60536: IEC60536
• IEC60068-2-27: IEC60068-2-27
• IEC60068-2-30: IEC60068-2-30
• IEC60068-2-6: IEC60068-2-6
• IEC60947-4-1: IEC60947-4-1
• IEC61000-4-2: IEC61000-4-2
• IEC61000-4-3: IEC61000-4-3
• IEC61000-4-4: IEC61000-4-4
• IEC61000-4-5: IEC61000-4-5
• IEC61000-4-6: IEC61000-4-6
• IEC61000-4-8: IEC61000-4-8
• EN55011: EN55011
• EN61131-2: EN61131-2
• IEEE519: IEEE519
• Mounting mode: Separate
• Protection functions: Thermal overload Class 10A
• Thermal overload Class 10: Thermal overload Class 10
• Thermal overload Class 20: Thermal overload Class 20
• Thermal overload Class 30: Thermal overload Class 30
• Product Series: XT
• Family Series: Eaton Overload Relays, XT Series
• Description: Eaton C440 electronic overload relay, XT Electronic Overload Relay - IEC, 20-100A, Selectable 10A, Class 10 ,20, 30, 105mm frame
• Current Rating: 20-100 A
• Poles: 3
• Output Contacts: 1NO, 1NC
• Trip Class: Class 10, Class 20, Class 30
• Reset Type: Automatic, Manual
• Connection Type: Screw Terminals
• Ambient Temperature: -13-149 00b0F
• Approvals: CE, CSA, UL
• Net Weight: 1.525 lbs
• Gross Weight: 1.91 lbs
• Amps: 100
• Amps Range: 20 - 100
• Model: XTOE100GCSS
