Product Description

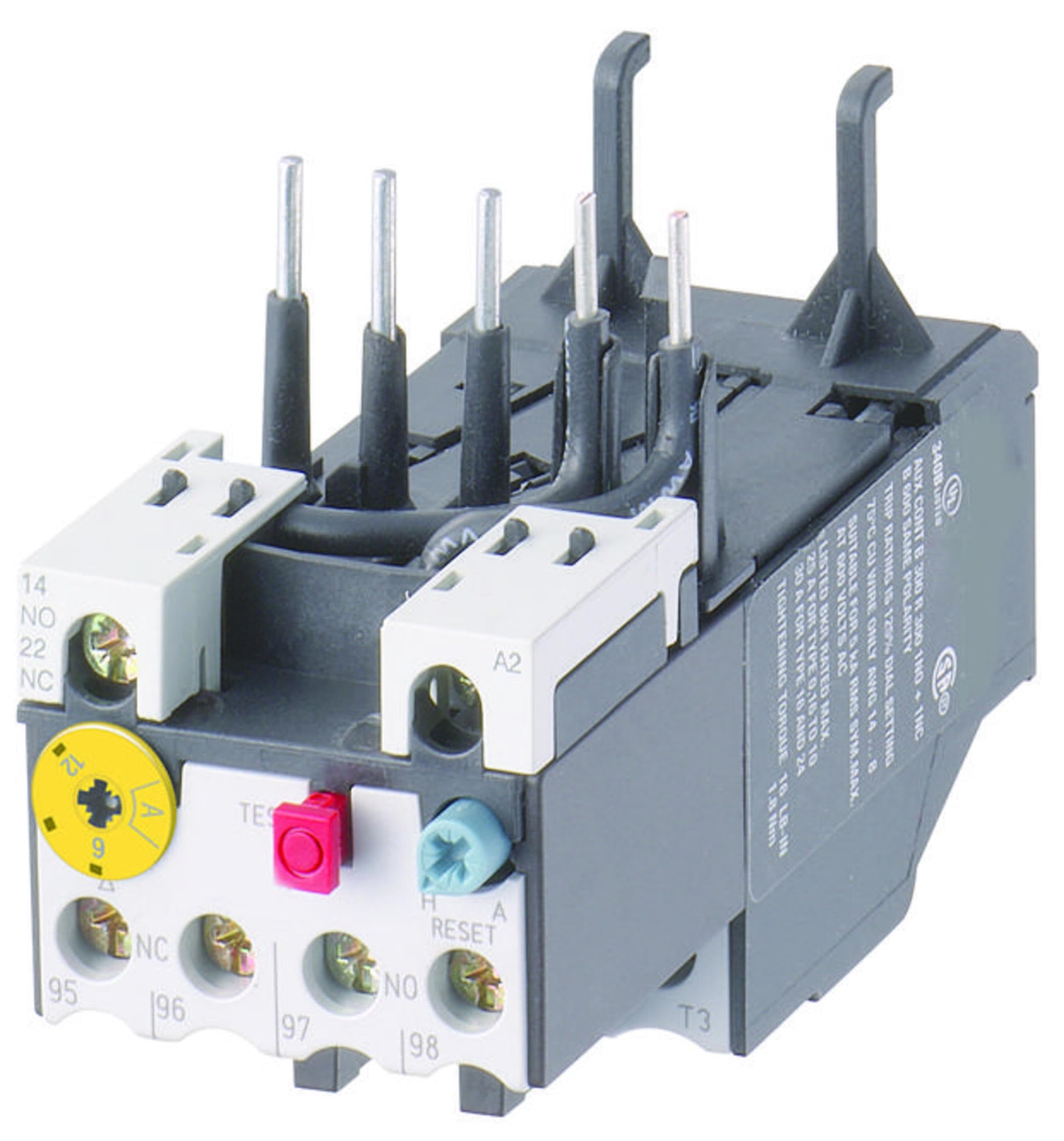

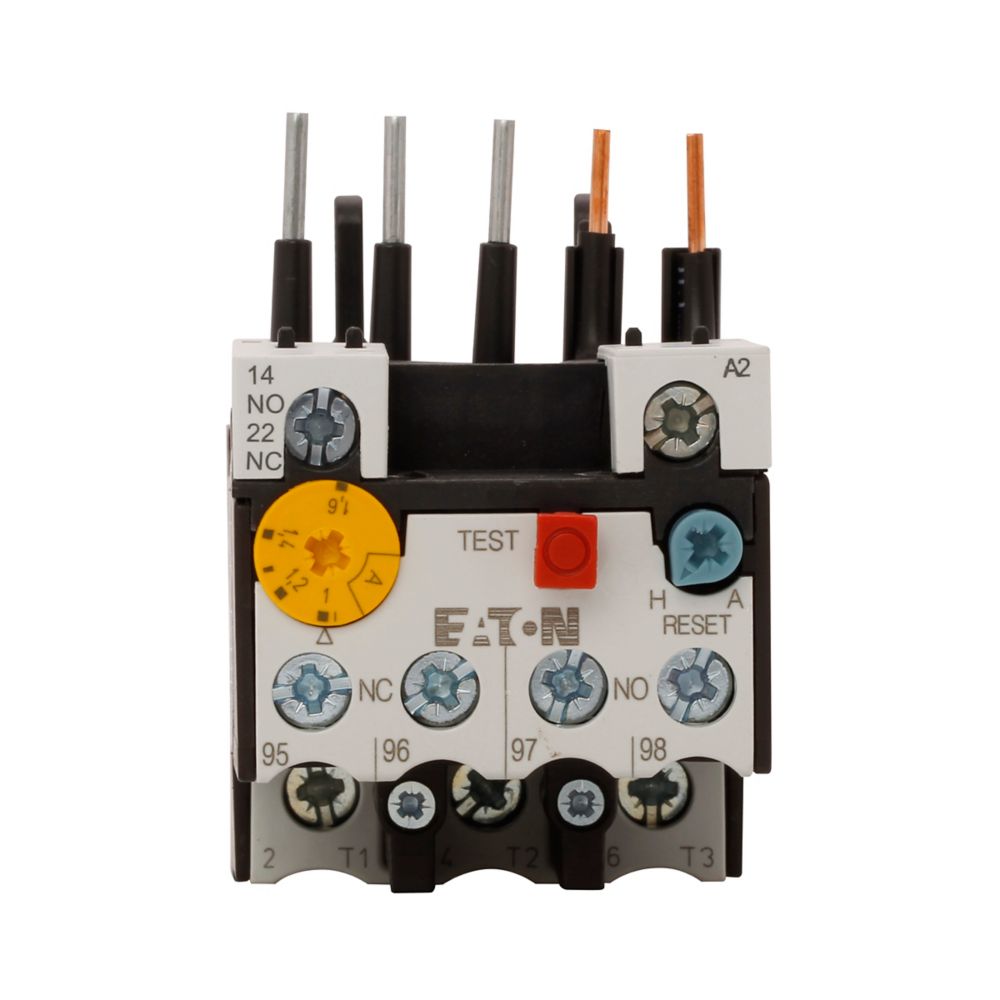

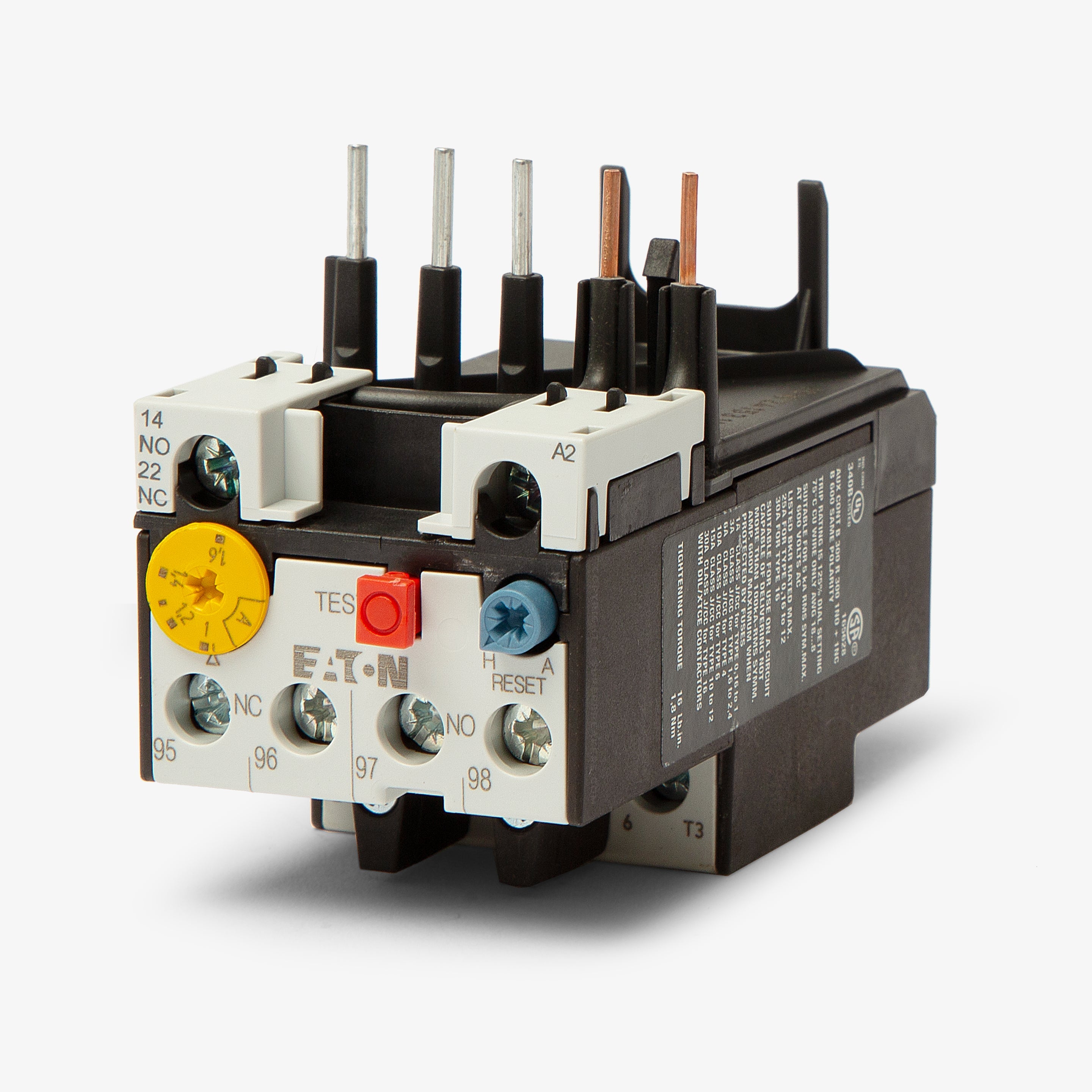

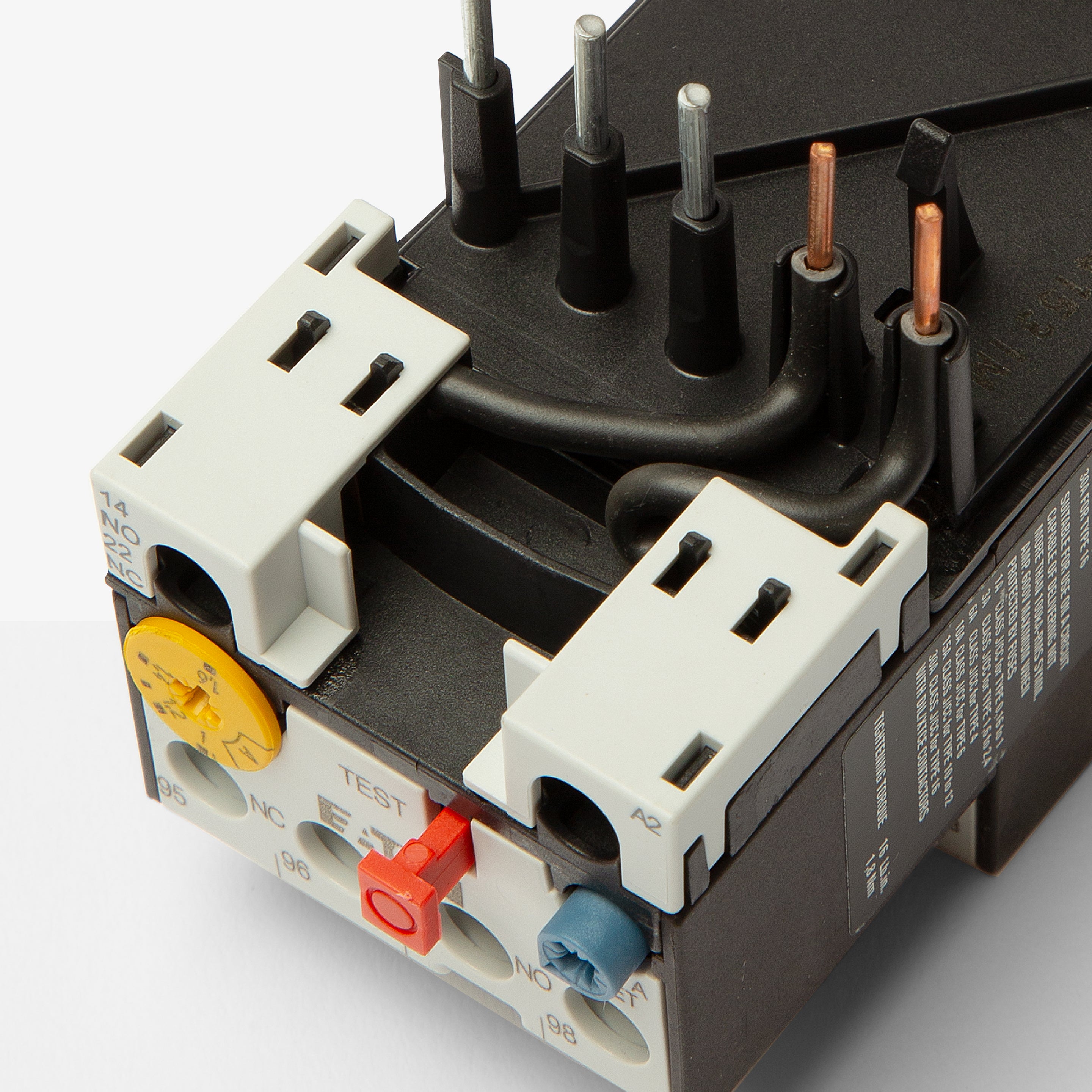

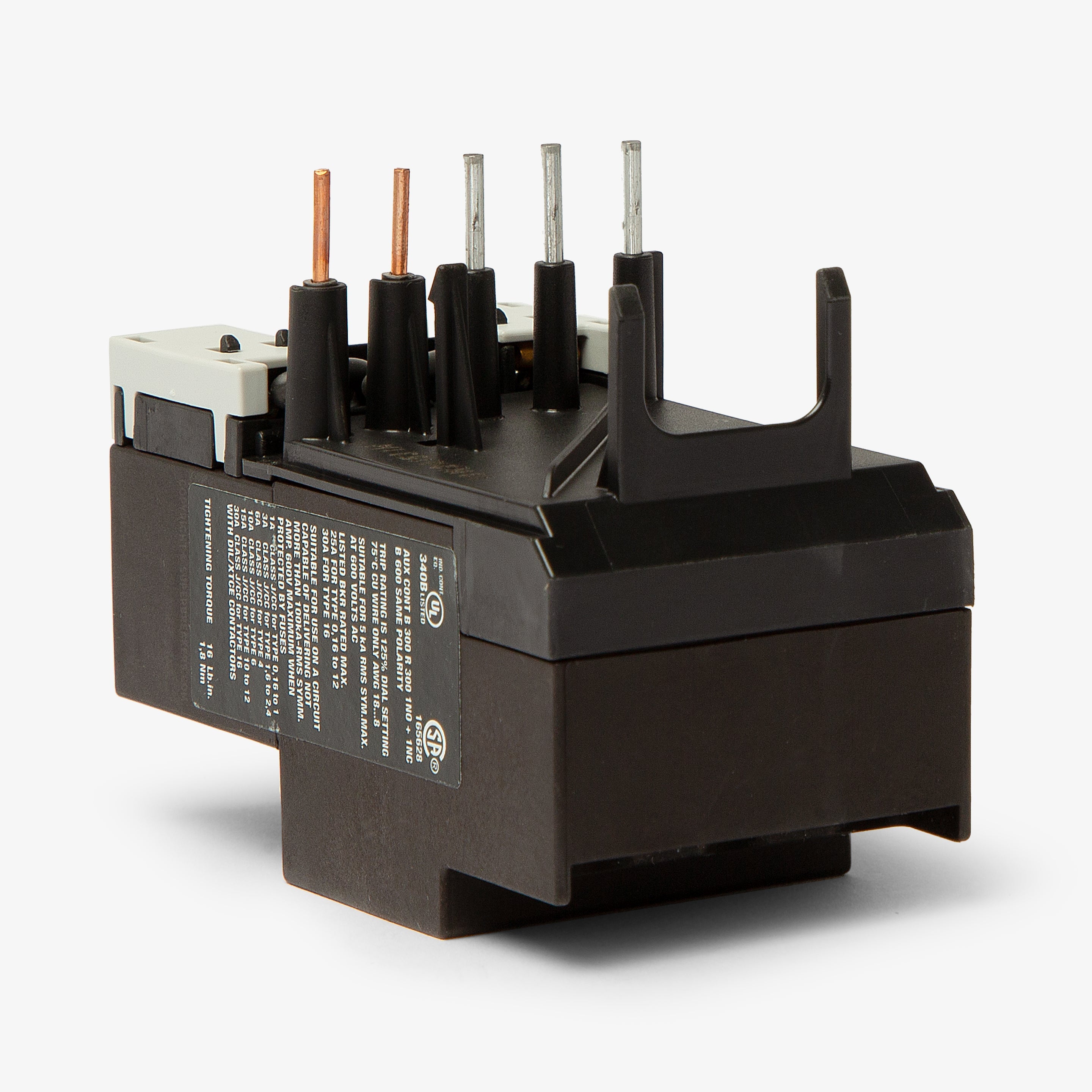

The EATON XTOB1P6BC1 is an IEC rated thermal overload relay designed for protecting three-phase motors. It reliably safeguards against overload, phase asymmetry, and phase failure. This bimetallic overload relay features a 1.0-1.6A overload range and direct contactor mounting, and is used with 7-15A contactors.
- Protects three-phase motors
- Selectable Auto/Manual Reset
- Ambient Temperature Compensation
Product Highlights
Provides efficient motor protection with Class 10 tripping and manual/automatic reset options.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: XTOB1P6BC1
-
Country of Origin: United States
Technical Specifications
-
Brand: Eaton
-
Manufacturer: Eaton - Cutler Hammer
-
Model / MPN: XTOB1P6BC1
-
MPN: XTOB1P6BC1
-
Product Type: Bimetallic overload relay
-
Product Length/Depth: 3.27 in
-
Product Height: 1.89 in
-
Product Width: 1.77 in
-
Product Weight: 0.7 lb
-
Compliances: RoHS Compliant ATEX Compliant CE Marked
-
Certifications: UL Listed CSA Certified IEC 60947 EN 60947
-
Used with: 7-15A contactor
-
Overload range: 1.0-1.6 A
-
Type: XT IEC Bimetallic Overload Relay
-
Frame size: 45 mm
-
Contact configuration: 1 NO, 1 NC
-
Mounting: Direct
-
Trip type: 10 A
-
Class: 10
-
For Contactor: XTCE007, XTCE009, XTCE012, XTCE015
-
Minimum Operating Temperature: -5 °C
-
Maximum Operating Temperature: 50 °C
-
UNSPSC Code: 39120000
-
Unit of Measure: EA
-
Mounting Type: Direct
-
Mounting Style: Panel Mount
-
Series: XT IEC Series
-
UPC Code: 4015082784362
-
Special Features: Test Button, Manual or Automatic Selectable Reset, Class 10A (to 250A), Class 30 (CT type)
-
Supply Voltage: 690 VAC
-
Terminal Type: Screw
-
Temperature Operating Range: -5 to 50 °C °C
-
Relay Type: Electromechanical
-
Power Rating: 0.37 kW W
-
Overload: 1.0-1.6A
-
Approvals: CSA Certified, EN 60947, IEC 60947, UL listed
-
Alternate Mfr Part Number: XTA291419
-
Function: Overload
-
Current Rating: 0.1-1.6 A
-
For Use With: 7 to 15 A Contactor
-
Family Name: XT IEC Power Control Family
-
Contact Current Rating: 15 Amp
-
Overview: Assembles directly to the XT family of Contactors to form a starter.
-
AMP Range: 1 to 1.6 AMPS
-
Connects to: XTCE007B / XTCE009B
XTCE012B / XTCE015B
-
Auxiliaries: 1 N.O. / 1 N.C.
-
Reset: Manual or Automatic
-
Trip Class: 10 (10 seconds or less)
-
Amperage: 1.0-1.6
-
Voltage: 600/690VAC
-
Poles: 3
-
Approval: ATEX, CE, CSA, UL, IEC, EN
-
Frame Type: XTO
-
Terminal Connection: Screw
-
Standards: RoHS
-
Temperature Rating: -5 to 50 °C
-
SKU: XTOB1P6BC1
-
Category: Definite Purpose Contactors
