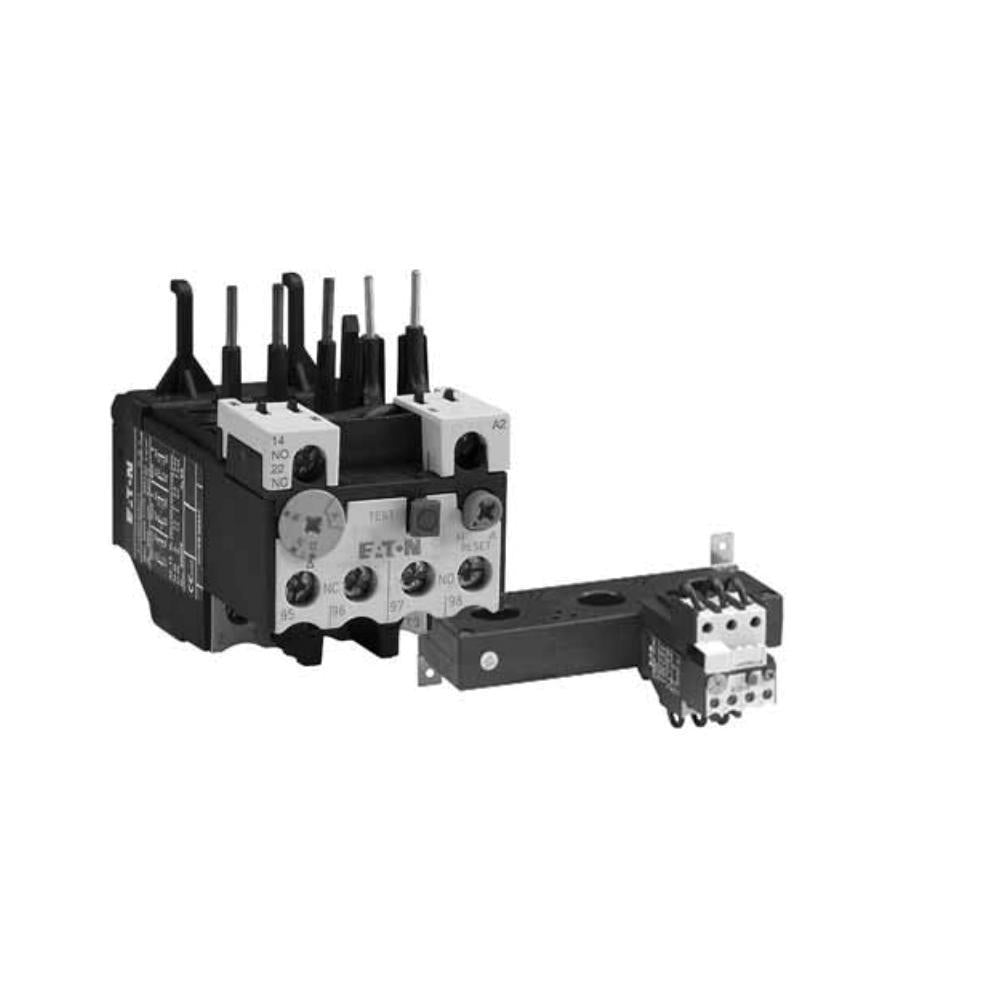

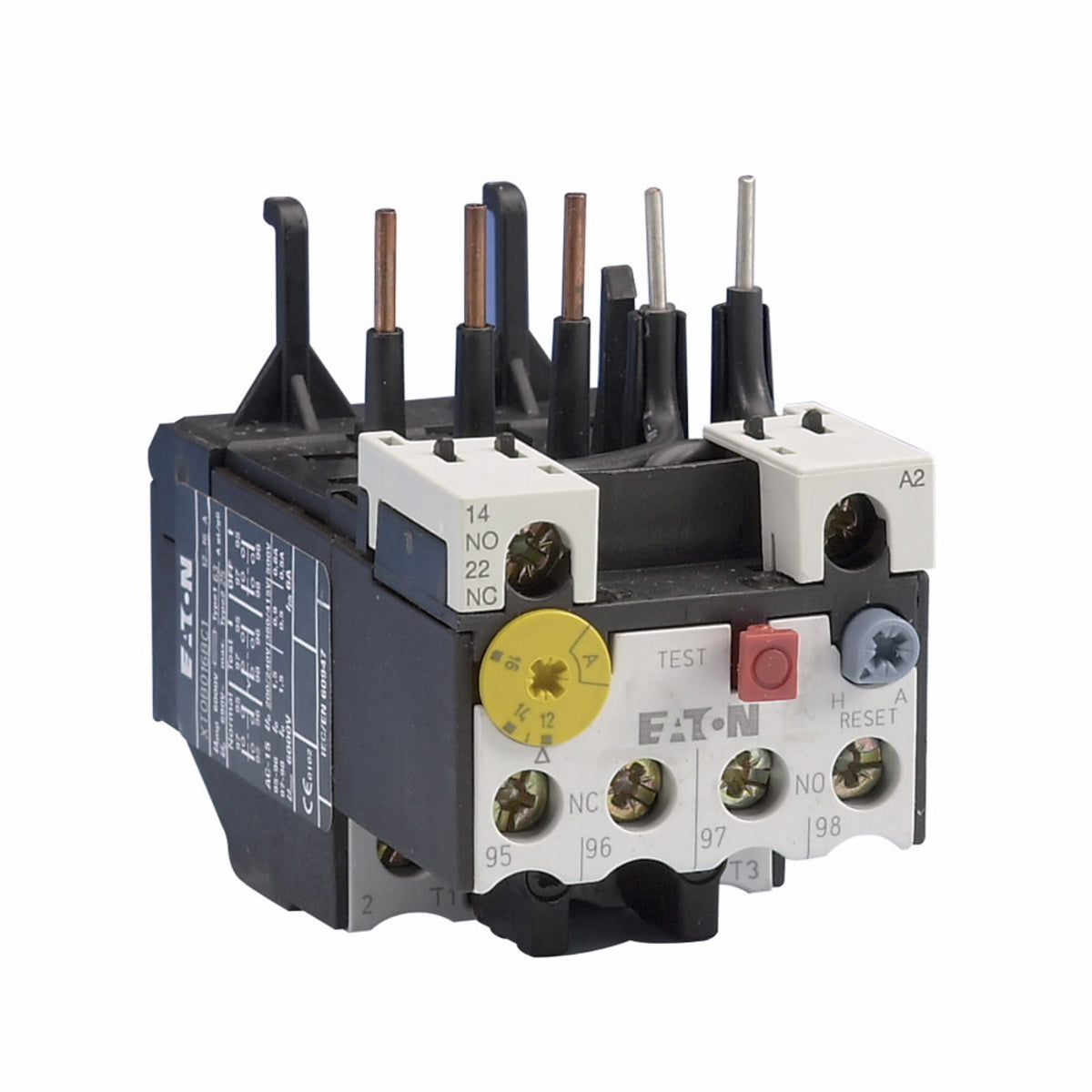

Eaton XTOB016BC1 XT IEC bimetallic overload relay 12-16A 45 mm

Product Description

The Eaton XTOB016BC1 is a bimetallic overload relay from the XT IEC series, designed to bring IEC power control to a new level. This overload relay has a 12-16A overload range and is suitable for stationary machinery and equipment outside factory environments. It saves space and engineering design time.

• Direct connect up to 250 A
• Stand alone and CT type up to 630 A
• Large thermal overcurrent range

Product Highlights

The Eaton XTOB016BC1 overload relay offers efficient and versatile control for various applications, with a focus on space-saving design and reliable performance.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTOB016BC1
• Country of Origin: Canada

Technical Specifications

• Catalog Number: XTOB016BC1
• Manufacturer: Eaton
• Brand: Eaton
• Country of Origin: Germany
• Made in USA: No
• Application: Stationary Machinery and Equipment Outside Factory - Pumps and Compressors
• Contact Configuration: 1 NO, 1 NC
• Mounting: Direct
• Standard: CSA Certified,IEC 60947,UL Listed,EN 60947,ATEX Compliant,RoHS Compliant,CE Marked
• GTIN: 04015082901684
• Item Type: Bimetallic overload relay
• Mounting Type: Surface
• Number of Poles: 3
• Series: XTOB
• Temperature Rating: -13 to 131 deg F
• Type: Bi-Metallic Thermal
• Amperage Rating: 12 to 16 A
• Contact Form: 1NO-1NC
• Product Name: Eaton XT IEC motor control
• Certifications: UL 508 CSA Std. C22.2
• Size: 45 mm
• Contact rating: 16 A
• Trip Class: 10
• Power Rating: 4 kW at 230 V, 7.5 kW at 400 V
• Terminal Connection: Screw
• Standards: CSA Std. C22.2,UL 508
• Short-Circuit Current: 224 A
