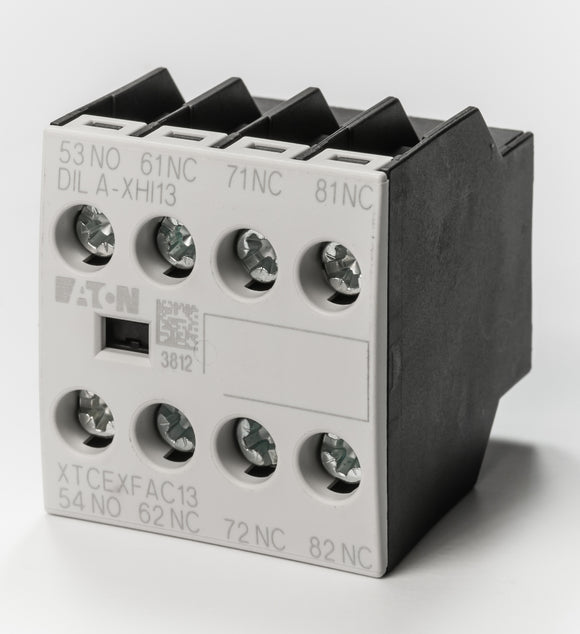

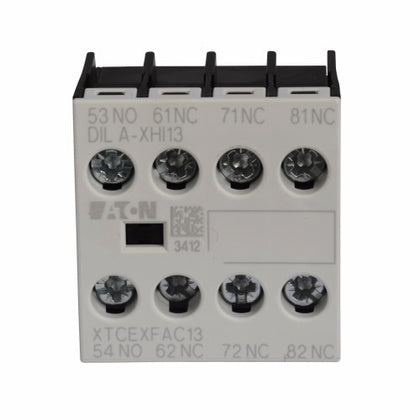

Eaton XTCEXFAC13 Auxiliary Contact Block

Product Description

The EATON XTCEXFAC13 is an auxiliary contact block with interlocked opposing contacts. It is a four-pole auxiliary contact block with 1 normally open and 3 normally closed contacts and screw terminals. It operates at 500 VAC and supports 1.5 to 6 A. It is designed for front mounting.

• Auxiliary contact block
• Interlocked opposing contacts
• Front Mounting

Product Highlights

The EATON XTCEXFAC13 auxiliary contact block is designed to enhance control systems with reliability. It is ideal for various applications and compatible with a range of EATON contactors and relays.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: XTCEXFAC13
• Country of Origin: Romania

Technical Specifications

• Number of Poles: 4
• Mounting: Front
• Contact arrangement: 1 normally open 3 normally closed
• Terminals: Screw
• Brand: Eaton
• Manufacturer Part Number: XTCEXFAC13
• Series: XT Series
• Voltage Rating: 500
• Amperage Rating: 1.5 to 6
• Number of Contacts: 4
• Suitable For Use With: DILA/DILM7/DILM9/DILM12/DILM15/DILM17/DILM25/DILM32/DILM38/DILMP20/DILMP32/DILMP45/DILL/DILMF8/DILMF11/DILMF14/DILMF17/DILMF25/DILMF32 Contactor and XTRE Control Relay
• Type: Auxiliary Contact
• Application: Electrical Assemblies, Panels and EOEMs Applications
