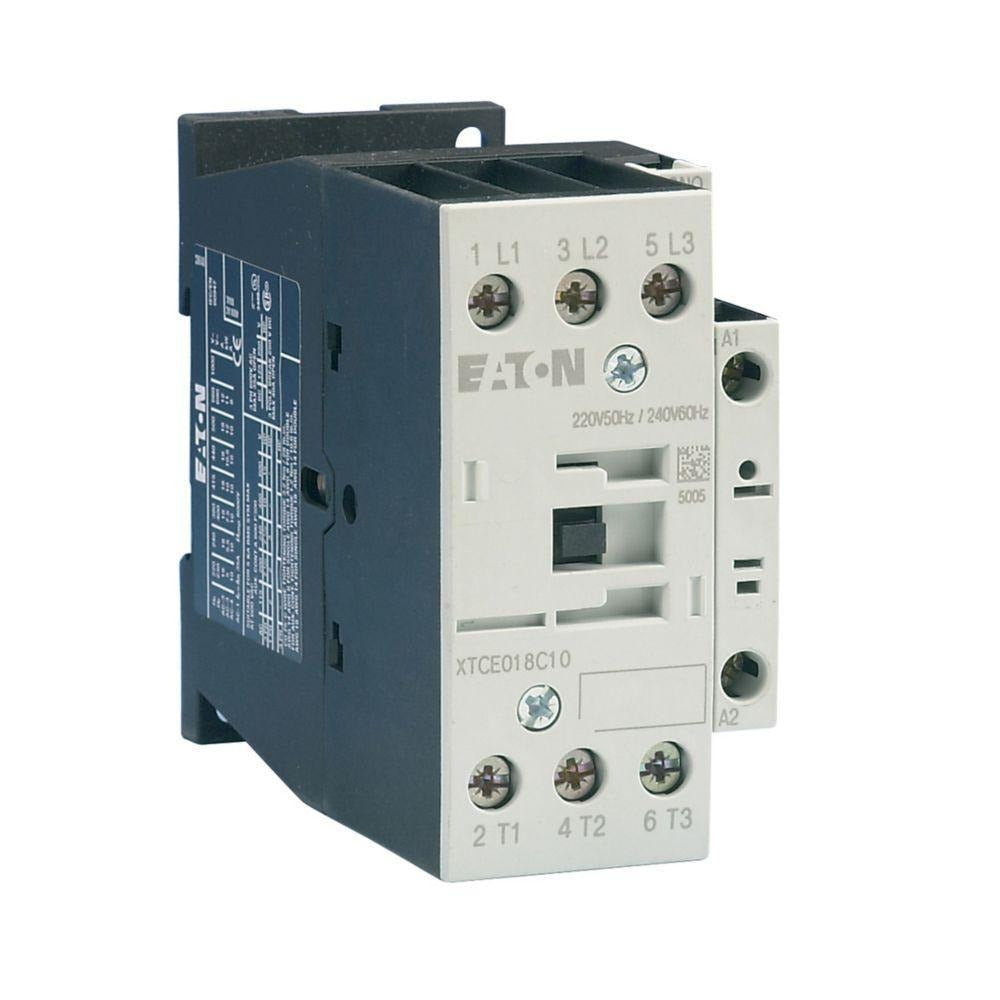

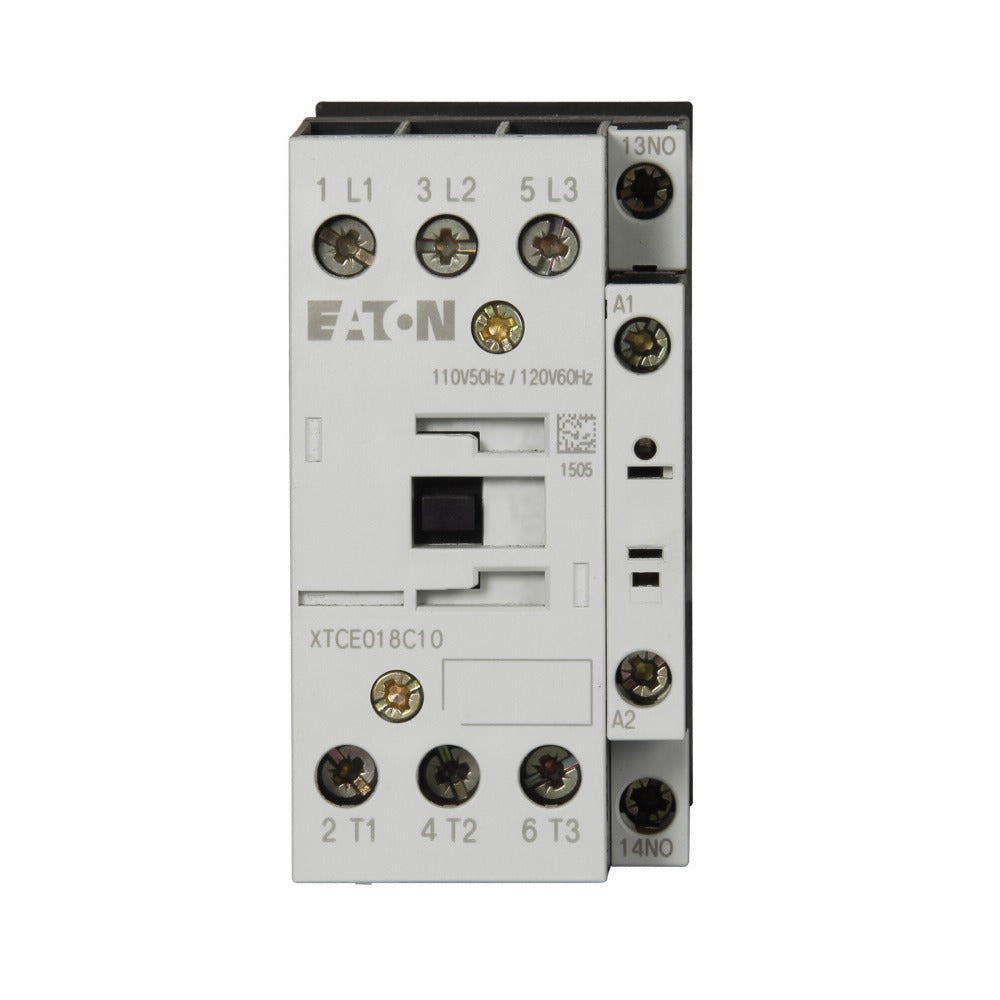

EATON Eaton XTCE018C10C C-Frame Full Voltage Non-Reversing IEC Contactor 18 A (45 mm)
EATON Eaton XTCE018C10C C-Frame Full Voltage Non-Reversing IEC Contactor 18 A (45 mm)
EATON Eaton XTCE018C10C C-Frame Full Voltage Non-Reversing IEC Contactor 18 A (45 mm)
EATON Eaton XTCE018C10C C-Frame Full Voltage Non-Reversing IEC Contactor 18 A (45 mm)

Eaton XTCE018C10C C-Frame Full Voltage Non-Reversing IEC Contactor 18 A (45 mm)

EATON
Brand: EATON
SKU: XTCE018C10C
Availability: In Stock

Ships same day if ordered by 12 pm
$315.33
$315.33
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Eaton XTCE018C10C is a C-frame full-voltage non-reversing IEC contactor with a coil rating of 415 VAC at 50 Hz and 480 VAC at 60 Hz. It provides an 18 A continuous load rating in a three-pole, 1 NO configuration and supports motor ratings up to 15 hp depending on voltage. The device measures 3.425 in x 1.85 in x 3.898 in, is 45 mm frame size, and mounts on DIN rail or panel using screw terminals.

  • Coil voltage: 415 VAC at 50 Hz, 480 VAC at 60 Hz; frequency rating 50/60 Hz
  • Electrical rating: 18 A continuous, three-pole with 1 NO contact; motor ratings to 2–15 hp depending on supply
  • Mechanical: 45 mm frame, screw terminals, DIN rail or panel mount; dimensions 3.425 in L x 1.85 in W x 3.898 in H

Product Highlights

3-pole IEC contactor, 18 A rating, coil 415–480 VAC 50/60 Hz, 45 mm frame, screw terminals, DIN rail or panel mount

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: XTCE018C10C
Technical Specifications
Brand
Eaton
Manufacturer Part Number
XTCE018C10C
Series
XTCE
Type
C-Frame Full Voltage Non-Reversing Contactor
Coil Voltage
415 VAC at 50 Hz, 480 VAC at 60 Hz (corrected; original listed 412 VAC at 50 Hz)
Frequency Rating
50/60 Hz
Amperage Rating
18 A
Continuous Ampere Rating
18 A
Contact Configuration
1 NO
Number of Poles
3
Motor Ratings (HP)
2 hp at 115/200 VAC 1 ph; 3 hp at 230 VAC 1 ph; 5 hp at 200/230 VAC 3 ph; 10 hp at 460 VAC 3 ph; 15 hp at 575 VAC 3 ph
Frame Size
45 mm
Terminal Type
Screw
Mounting Type
DIN rail or panel
Dimensions
3.425 in L x 1.85 in W x 3.898 in H
Weight
0.9 lb
Operation
Non-reversing
Certifications
RoHS Compliant, CE Marked, UL Listed, CSA Certified, EN 60947, IEC 60947, BAA Compliant
