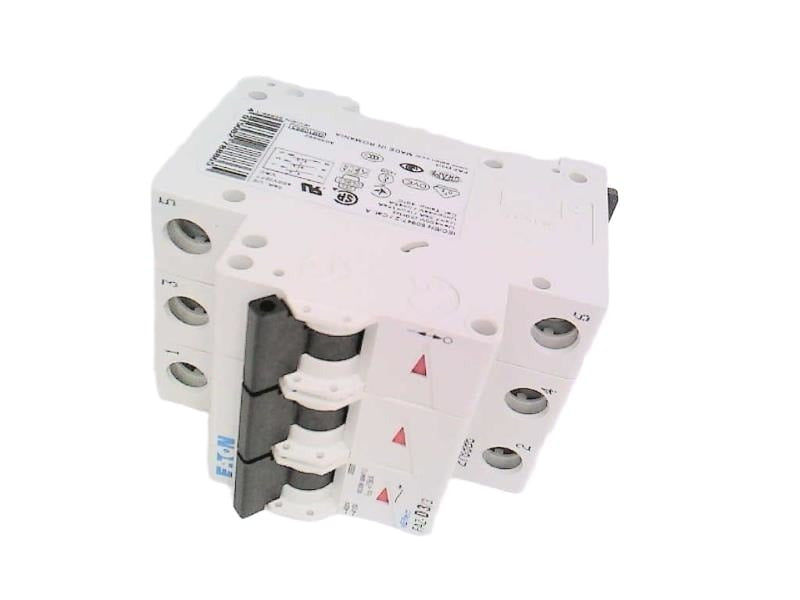

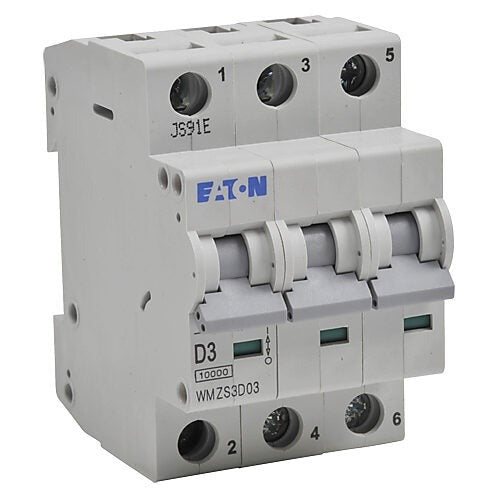

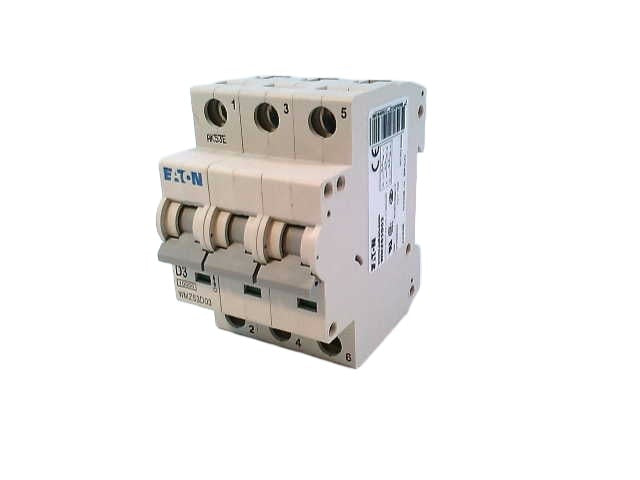

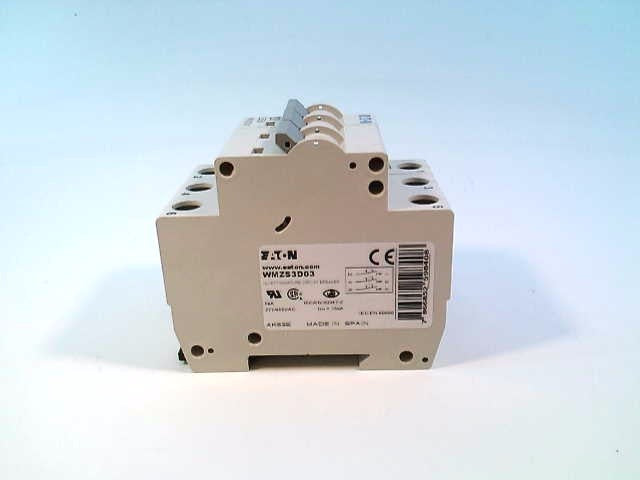

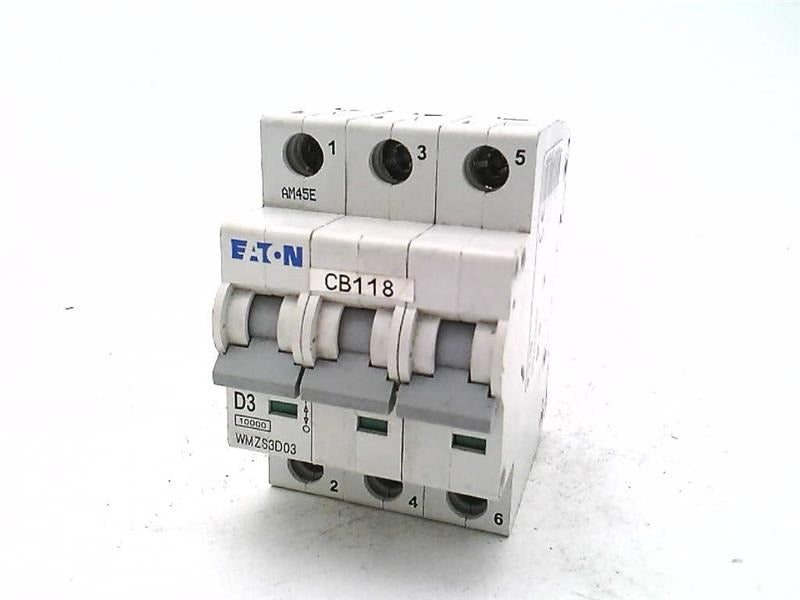

Eaton WMZS3D03 Miniature circuit breaker 3 A (3 Pole) FAZ-D3-3

Product Description

The Eaton WMZS3D03 is a 3 A, 3-pole thermal-magnetic miniature circuit breaker rated for 277/480 VAC. It provides supplementary overcurrent protection with a D trip curve and a 10 kA interrupting rating, and is recognized to UL 1077 and compliant with IEC 60947-2 and CSA C22.2. The unit mounts on DIN rail, uses standard box terminals for 18 to 4 AWG conductors, and has an IP20 nylon enclosure.

• 3 A current rating, 3-pole configuration, D trip curve (thermal-magnetic)
• Rated 277/480 VAC with 10 kA interrupting rating; meets UL 1077, IEC 60947-2, CSA C22.2
• DIN rail mounting, standard box terminal connections, accepts 18 to 4 AWG, IP20 nylon enclosure

Product Highlights

Supplementary protector, D-curve thermal-magnetic trip, direct replacement FAZ-D3-3

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: WMZS3D03
• Country of Origin: USA
