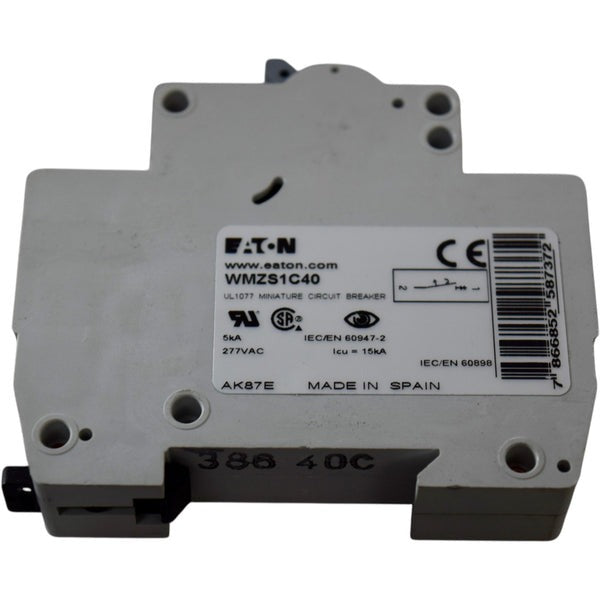

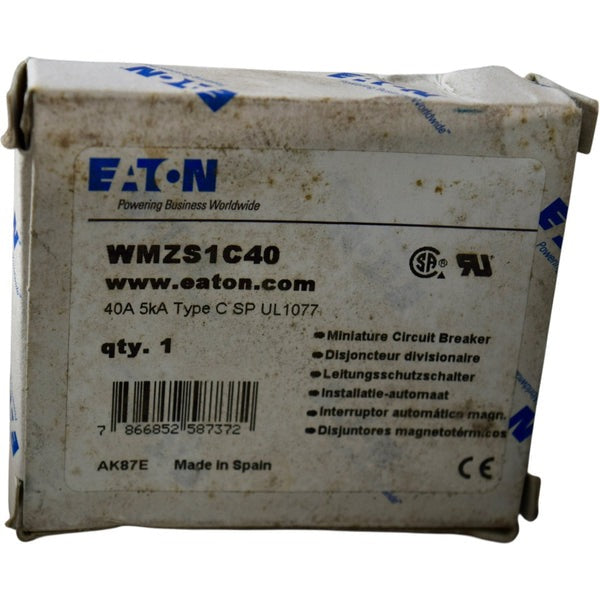

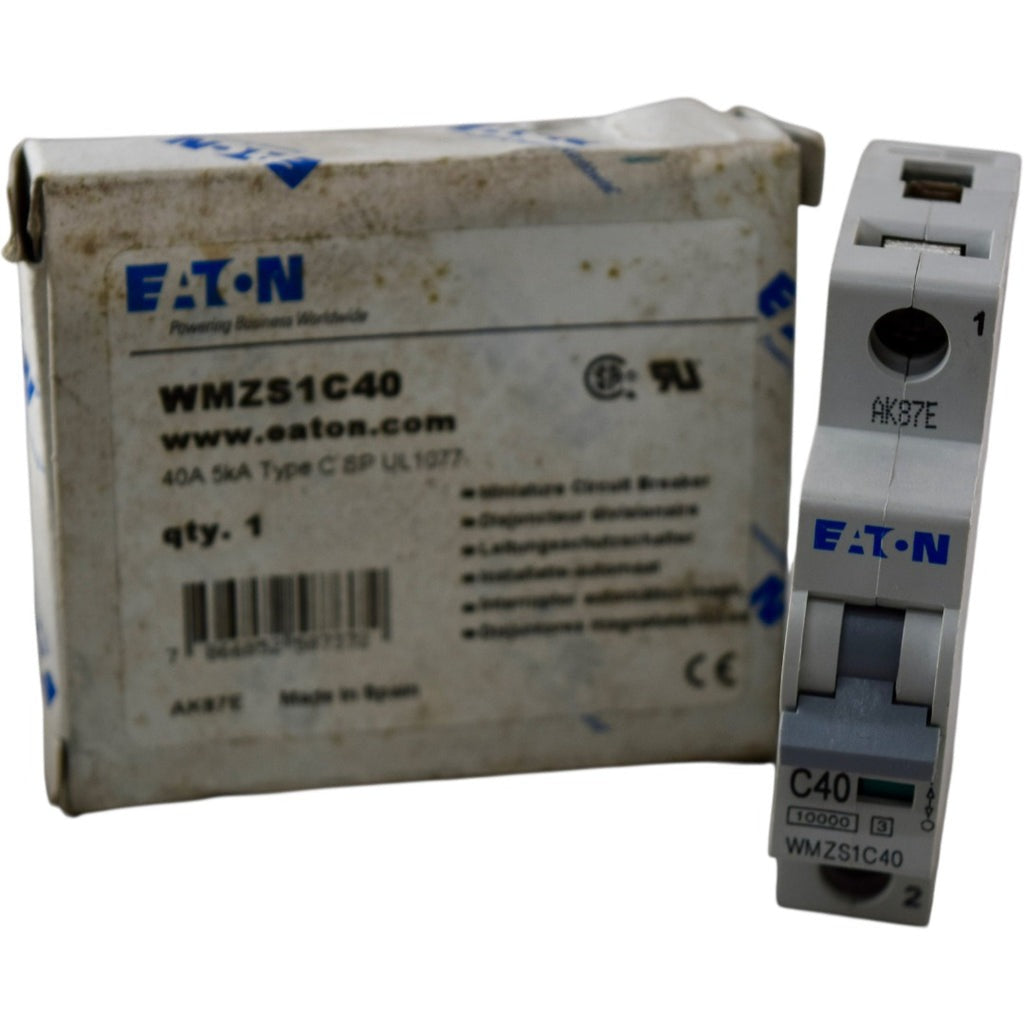

Eaton WMZS1C40 Miniature Supplementary Protector 40 A (1 Pole) FAZ-C40-1-SP

Product Description

Eaton WMZS1C40 is a 40 A miniature supplementary protector (MPN WMZS1C40) that provides single-pole thermal-magnetic overcurrent protection. The device features a C trip curve, a 10 kA interrupting rating, and DIN-rail mounting for panel applications. It is rated for 277/480 VAC with additional 48 VDC capability, uses standard box terminals for 18 to 4 AWG conductors, and has an IP20 enclosure.

• Rated current: 40 A, single-pole; trip characteristic: Type C thermal-magnetic
• Interrupting capacity: 10 kA; voltage rating: 277/480 VAC and 48 VDC
• Mounting: DIN rail (35 mm); connection: standard box terminal for 18 to 4 AWG; enclosure IP20

Product Highlights

40 A single-pole DIN-rail supplementary protector, C-curve thermal-magnetic trip, 10 kA interrupt rating; replacement part FAZ-C40-1-SP

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: WMZS1C40
• Country of Origin: Spain
