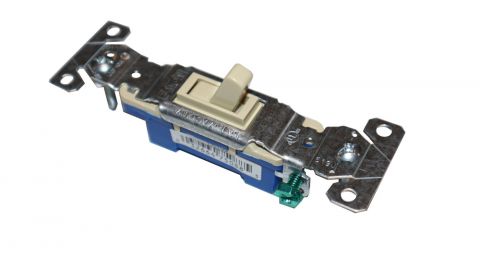

Eaton Wiring 1301-7V-BOX Toggle Switch 15A

Product Description

The Eaton Wiring 1301-7V-BOX is a single-pole toggle switch with a rating of fifteen amps. It is suitable for residential use and can handle various load types including motor control, fans, LEDs, and different types of light bulbs. This switch offers both side and push wiring methods and utilizes a screw connector for secure connections.

• Compatible with #14-10 AWG wire sizes.
• Features a flush mounting method for straightforward installation.
• Conforms to RoHS and NAFTA standards.

Product Highlights

The Eaton Wiring toggle switch is engineered for reliability and versatility, making it ideal for both light and heavy-duty applications.

Product Information

Standard Information

• SKU: 1301-7V
• Catalog Number: 1301-7V

Technical Specifications

• Amperage Rating: 15A
• Voltage Rating: 120 V
• Number of Poles: Single-pole
• Wiring Method: Side and push
• Switch Type: Toggle switch
• Connector Type: Screw
• Load Types Supported: MLV, Incandescent, Fan, CFL, Halogen, LED, ELV, Motor Control, Fluorescent
• Material: Polycarbonate
• Torque Rating: 14 lbf-inch
