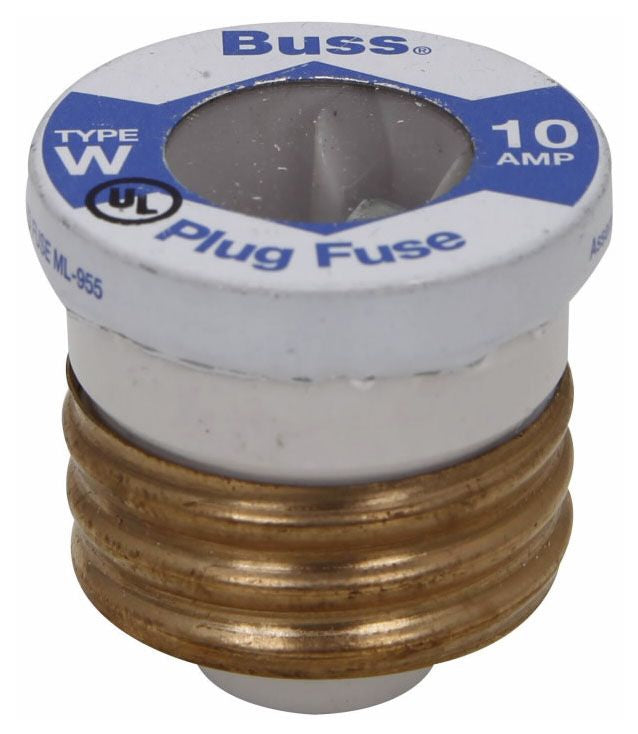

Eaton W-10 Bussmann Series W Plug Fuse 10 A (Edison Base)

Product Description

Eaton W-10 is a Bussmann Series W fast-acting plug fuse rated 10 A at 125 Vac with a 10 kAIC interrupt rating. It uses a plastic body with a brass thread and an Edison (screw-in) base for threaded mounting. Typical applications include lighting, heating and general purpose circuit protection where a fast-acting overcurrent device is required.

• Fast-acting fuse: 10 A current rating, 125 Vac voltage rating, 10 kAIC interrupting rating
• Construction: plastic body, brass thread, threaded Edison base mounting with single element
• Approvals and use: UL 248-11 and CE listed; suitable for lighting, heating and general purpose circuits

Product Highlights

10 A, 125 Vac fast-acting Edison-base plug fuse with 10 kA interrupt rating and threaded mounting

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: W-10
• Country of Origin: Mexico

Technical Specifications

• Brand: EATON
• Manufacturer Part Number: W-10
• Type: Plug fuse (W Series)
• Acting Type: Fast acting
• Current Rating: 10 A
• Voltage Rating: 125 Vac
• Interrupt Rating: 10 kAIC (RMS symmetrical)
• Short Circuit Rating: 10 kA
• Body Material: Plastic
• Thread Material: Brass
• Base Type: Edison base (screw-in)
• Mounting Type: Threaded (Edison screw)
• Element: Single
• Indicating: Non-indicating
• Rejection: Non-rejection
• Approvals/Certifications: UL 248-11; CE
• Series: W Series
• Application: Lighting, heating and general purpose circuit protection (not time-delay; not intended for motor starting circuits unless specifically allowed by motor/fuse application guidelines)
• Country of Origin: Mexico
• UPC: 51712101004
