Eaton V48M28T75NV CH General-Purpose Transformer 75 kVA (EATON V48M28T75NV)

Product Description

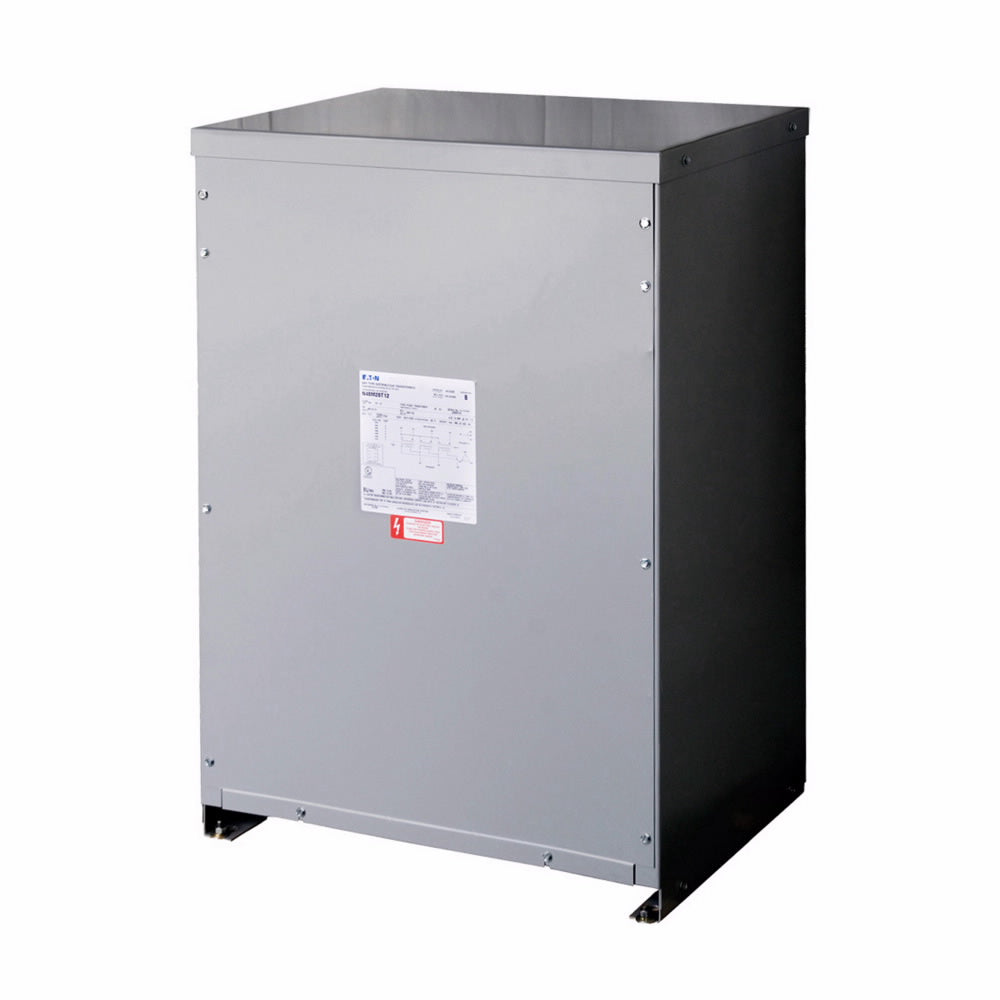

The Eaton V48M28T75NV is a type DT-3 dry non-ventilated totally enclosed distribution transformer. This transformer features a primary voltage of 480 VAC and a secondary voltage of 208Y/120 VAC, with a power rating of seventy-five kVA. It operates at a frequency of sixty Hz and has a three-phase design.

• Suitable for general purpose and both indoor and outdoor applications.
• Includes a bonding and grounding bar for compliance with NEC 450.10(A).
• Short-term overload capability as required by ANSI standards.

Product Highlights

This transformer is ideal for environments with conductive, corrosive, or combustible materials. As it is totally enclosed with no ventilation openings, it efficiently dissipates heat through its surface area.

Product Information

Standard Information

• Manufacturer: Eaton
• Type: DT-3 Dry Non-Ventilated Totally Enclosed

Technical Specifications

• Power Rating: 75 kVA
• Primary Voltage: 480 VAC
• Secondary Voltage: 208Y/120 VAC
• Number of Taps: 6
• Phase: 3 ph
• Frequency Rating: 60 Hz
• Enclosure: NEMA 3R
• Dimensions: 23.42 in L x 28.22 in W x 46.58 in H
