Eaton V48M28T7516CU CH V48M28T7516CUDOE 2016 Efficient Transformer 75 kVA

Product Description

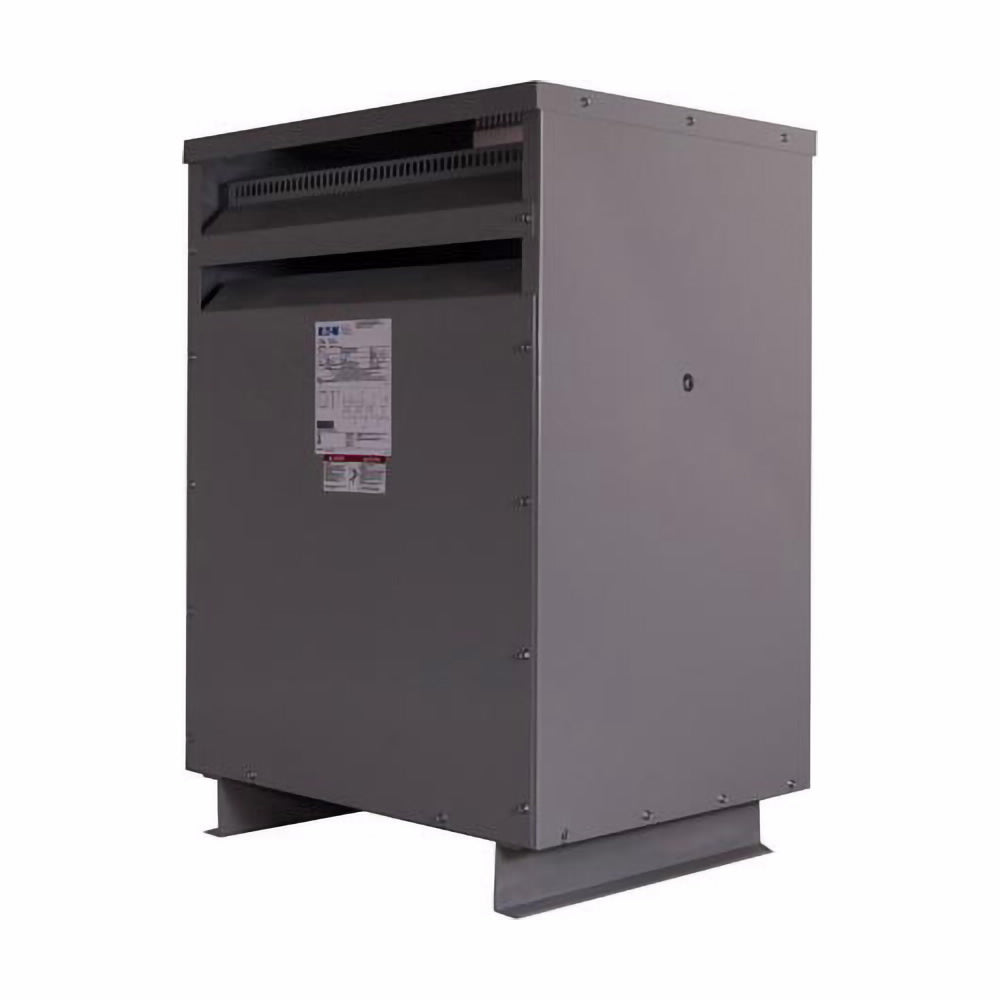

The EATON V48M28T7516CU general purpose transformer is a Type DT-3 dry distribution energy efficient ventilated transformer. It features a 480 VAC primary, 208Y/120 VAC secondary, and 75 kVA power at 60 Hz frequency. Designed with 3 phases and 6 taps, it uses lug connections and a 942 frame circuit, suitable for floor, upright, or wall mounting.

• Efficiency verified by UL and includes the UL energy efficiency verification mark
• Factory installed bonding ground bar
• Approved to be installed indoors with 2 in clearance on the sides and rear

Product Highlights

This transformer has copper windings, is 10 CFR part 431-2016 (DOE 2016) efficient, and has a fungus-resistant varnished core and coil.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: V48M28T7516CU
• Country of Origin: United States

Technical Specifications

• Application: Indoor Applications
• Circuit Type: 942 Frame
• Connection Type: Lug
• Efficiency: 10 CFR Part 431-2016 (DOE 2016)
• Enclosure: NEMA 2
• Frequency Rating: 60 Hz
• Housing Material: Steel
• Includes: Bonding/Grounding Bar
• Insulation: 220 deg C
• Manufacturer Part Number: V48M28T7516CU
• Mounting Type: Floor/Upright/Wall
• Number of Taps: 6
• Phase: 3
• Power Rating: 75 kVA
• Secondary Voltage: 208Y/120 VAC
• Standards/Approvals: UL 156|UL File No. E78389|IEC 60726|ANSI Specified|IEEE Standard|NEMA Approved|UBC Certified|IBC Certified|California Code Title 24 Compliant|10 CFR Part 431-2016 DOE 2016 Efficient
• Temperature Rating: 150 deg C
• Type: Type DT-3 Dry Distribution Energy Efficient Ventilated
• Product Length/Depth: 24 in
• Product Height: 43 in
• Product Width: 30.5 in
• Compliances: DOE2016 Efficient
• Certifications: UL Listed
• Catalog Notes: 10 CFR Part 431 (2016) Efficient
• Product Type: Ventilated transformer
• Coil material: Copper
• Frame: FR942
• Material: Copper windings
• Mounting: Floor or wall, upright only
• Tap size: 2 at +2.5%, 4 at -2.5%
• Wiring connection: 280B
• Primary voltage: 480 V delta
• Sound Level: NEMA ST-20
• Temperature rise: 150 °C rise
• Volt ampere rating: 75 kVA
• Voltage rating: 480 Vac-208Y/120 Vac
• Enclosure Rating: NEMA 2
• Winding: Copper
