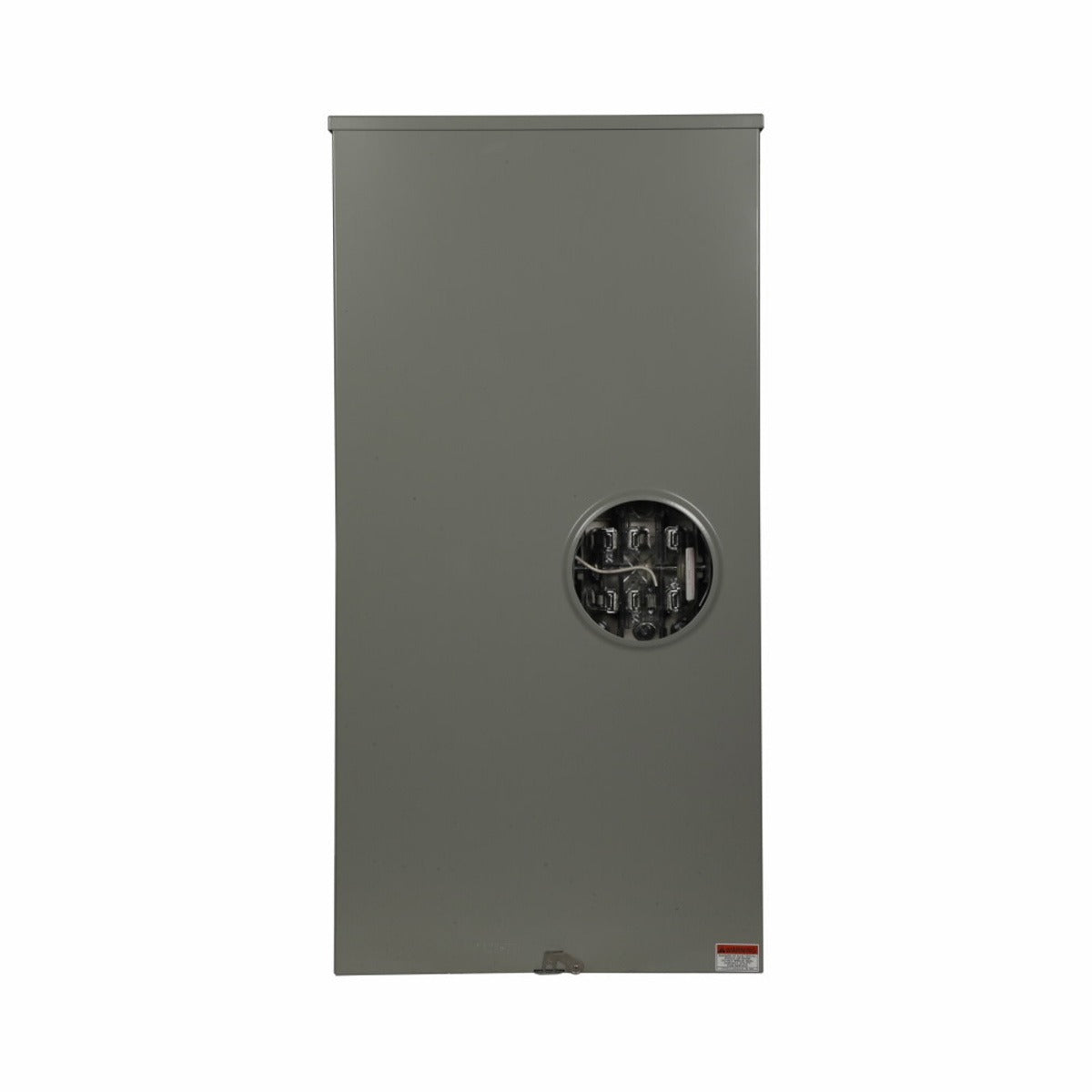

Eaton UTH73369THLCH Meter Socket 320A (1-Position)

Product Description

Eaton UTH73369THLCH is a single-position, self-contained meter socket rated 320 A and 600 V for three-phase, 4-wire service. It features a seven-jaw configuration, lever bypass, and a ringless, one-piece die-run enclosure with a 5 x 5 inch open hub. The socket accepts #4 to 600 kcmil line conductors and (2) #6 to 350 kcmil load conductors and supports top or bottom feed installations.

• 320 A, 600 V, 3-phase, 4-wire meter socket with seven-jaw configuration
• Accepts 4 AWG to 600 kcmil line and (2) 6 AWG to 350 kcmil load; 5 x 5 in open hub; lever bypass
• Ringless one-piece die-run enclosure, top/bottom feed, UL Listed; dimensions 6.5 in x 20 in x 39.88 in

Product Highlights

Single-position 320 A, 7-jaw ringless meter socket with lever bypass

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: UTH73369THLCH
• Country of Origin: United States
