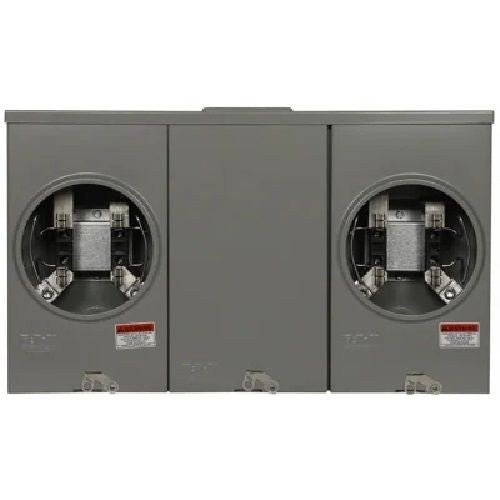

EATON UFHT2R2332TCH Meter Socket Multi Position 200 A 600 V

Product Description

The EATON UFHT2R2332TCH is a meter socket suitable for multiple position residential service applications. This unit is rated for 200 amperes and 600 volts, allowing for both overhead and underground feed types. It features a ringless design with four jaws that can accommodate single-phase, three-wire connections.

• Rated for 200A and 600V
• Includes horn bypass and ground connection
• UL Listed for safety and reliability

Product Highlights

The meter socket is built for durability and efficiency, ensuring a reliable connection for your electrical services.

Product Information

Standard Information

• Type: Multiple position residential service
• Amperage Rating: 200A

Technical Specifications

• Feed Type: Top/Bottom
• Number of Jaws: Four-jaw
• Phase: Single-phase
• Voltage Rating: 600 V
• Number of Wires: Three-wire
• Security: Ringless
• Number of Sockets: 2
• Bypass: Horn
• Certifications: UL Listed
• Line: #6-350 kcmil
• Load: #8-250 kcmil
• Hub Type: 5 x 5 hub opening
• Connection: Ground connection
• Product Length/Depth: 5.38 inches
• Product Height: 6.7 inches
• Product Width: 15 inches
• Product Weight: 27.85 lbs
