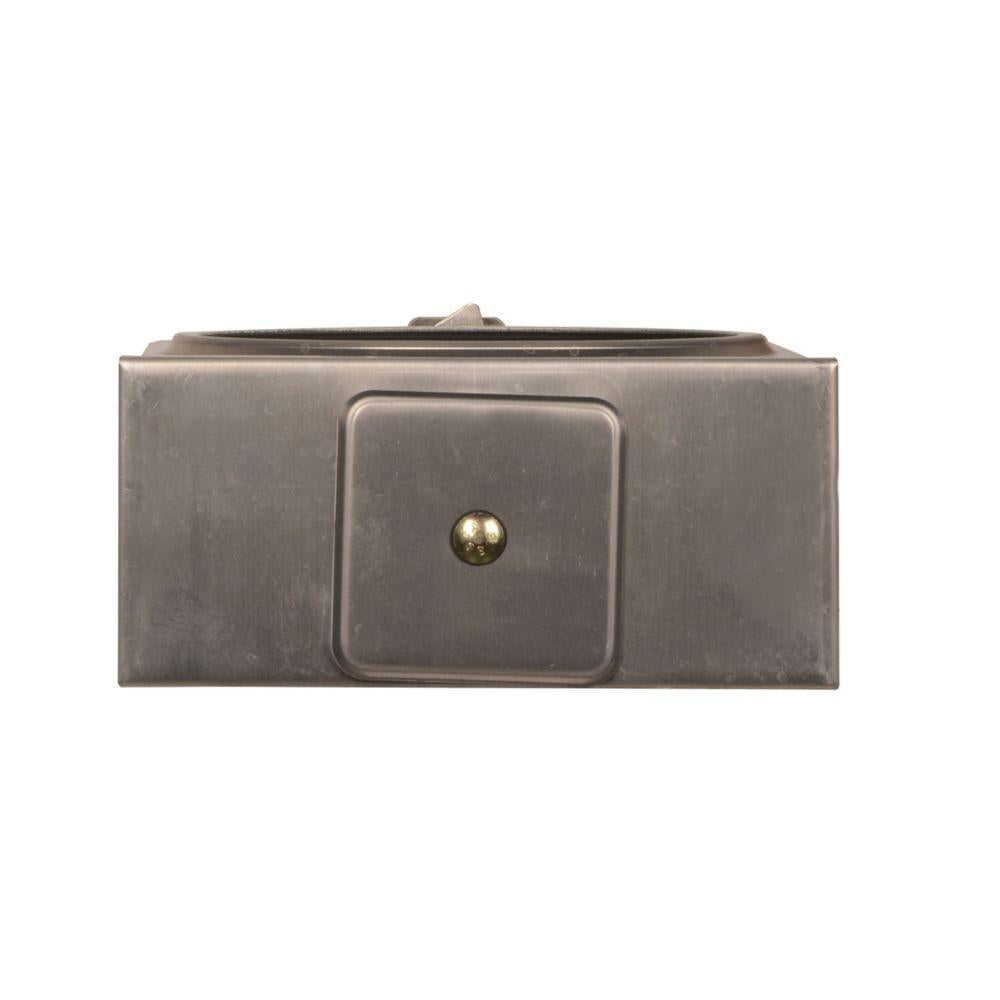

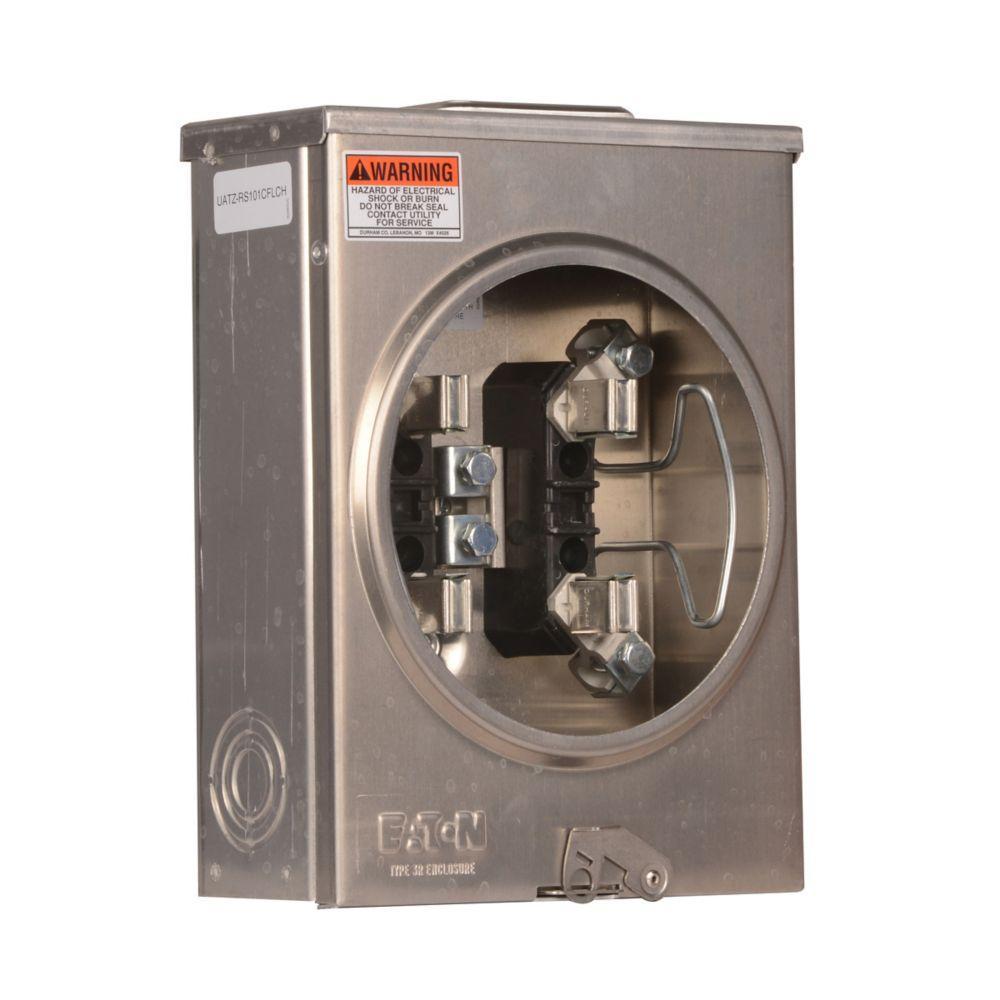

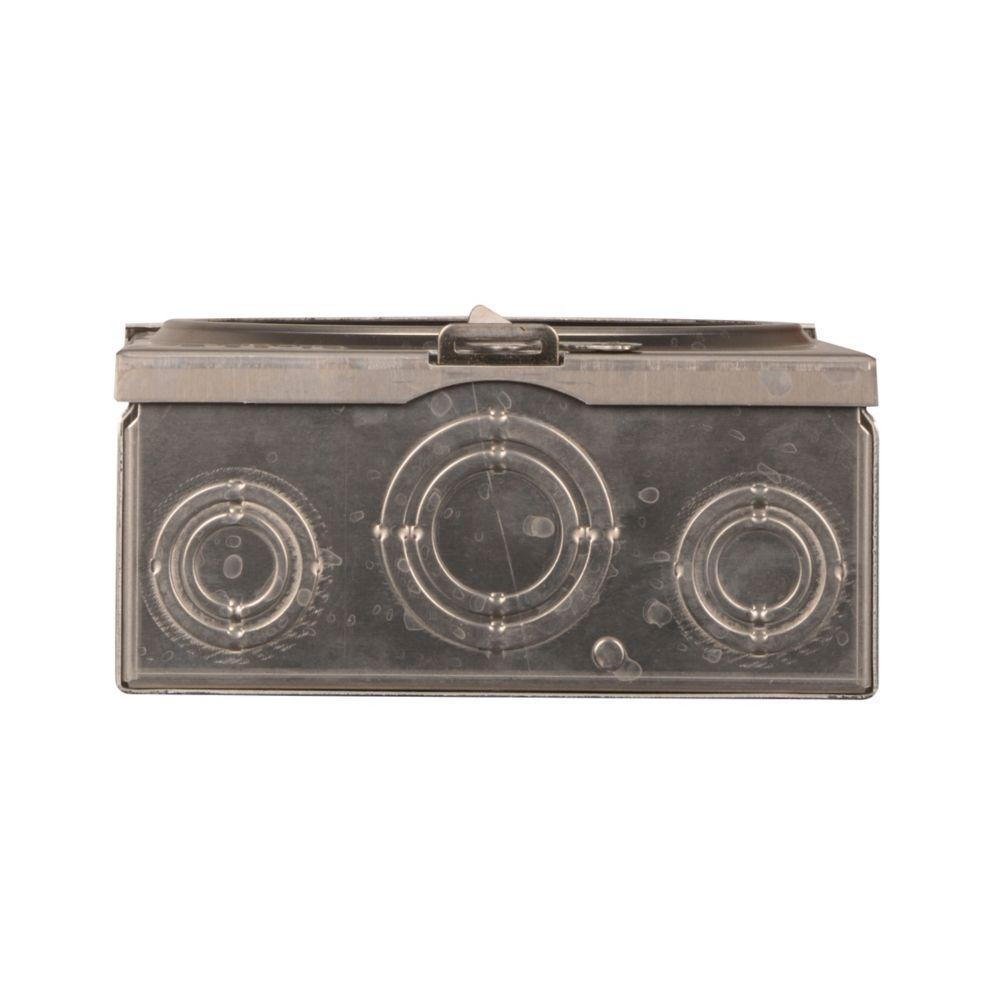

Eaton UATZRS101CFLCH Meter Socket 125A (3-5/16 Inch Hub)

Product Description

The Eaton UATZRS101CFLCH is a residential meter socket rated 125 A and 600 VAC designed for multi-position service. It is a four-jaw, single-phase, 3-wire (triplex) ringless socket with an aluminum enclosure and a 3-5/16 inch hub cover plate. The socket accepts #8 to 2/0 AWG conductors for line and load and includes a 5/16 inch hex head connection screw and a ground connection for #14 to #2 Cu.

• 125 A amperage rating, 600 VAC voltage rating; single-phase, 3-wire configuration
• Four-jaw copper-plated alloy jaws with steel reinforcing springs; accepts #8�2/0 AWG conductors
• Ringless aluminum enclosure with 3-5/16 in hub cover plate; 5/16 in hex head connection screw and #14�#2 Cu ground connection

Product Highlights

125 A, 600 VAC ringless meter socket; 4-jaw, single-phase 3-wire design; accepts #8�2/0 AWG; 3.5 x 8 x 10.88 in dimensions; aluminum enclosure.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: UATZRS101CFLCH
• Country of Origin: United States

Technical Specifications

• Catalog Number: UATZRS101CFLCH
• Manufacturer: Eaton
• Brand: Eaton
• Product Type: Meter socket
• Type: Multiple position residential service
• Amperage Rating: 125 A
• Voltage Rating: 600 VAC
• Phase: Single-phase
• Number of Wires: 3
• Number of Jaws: 4
• Wire Size (Accepted): #8 to 2/0 AWG
• Cover Type: Ringless
• Hub Size: 3-5/16 in
• Hub Type: Small closed/coverplate
• Connection Screw: 5/16 in hex head
• Ground Connection: #14 to #2 Cu
• Enclosure Material: Aluminum (063)
• Dimensions: 3.5 in L x 8 in W x 10.88 in H
• Weight: 8 lb
• Feed Type: Bottom, Top
• Mounting Type: Bolt-On
• Terminal Type: Line/Load
• Applications: Residential buildings and facilities
• Certifications: UL Listed
• Number of Sockets: 1
