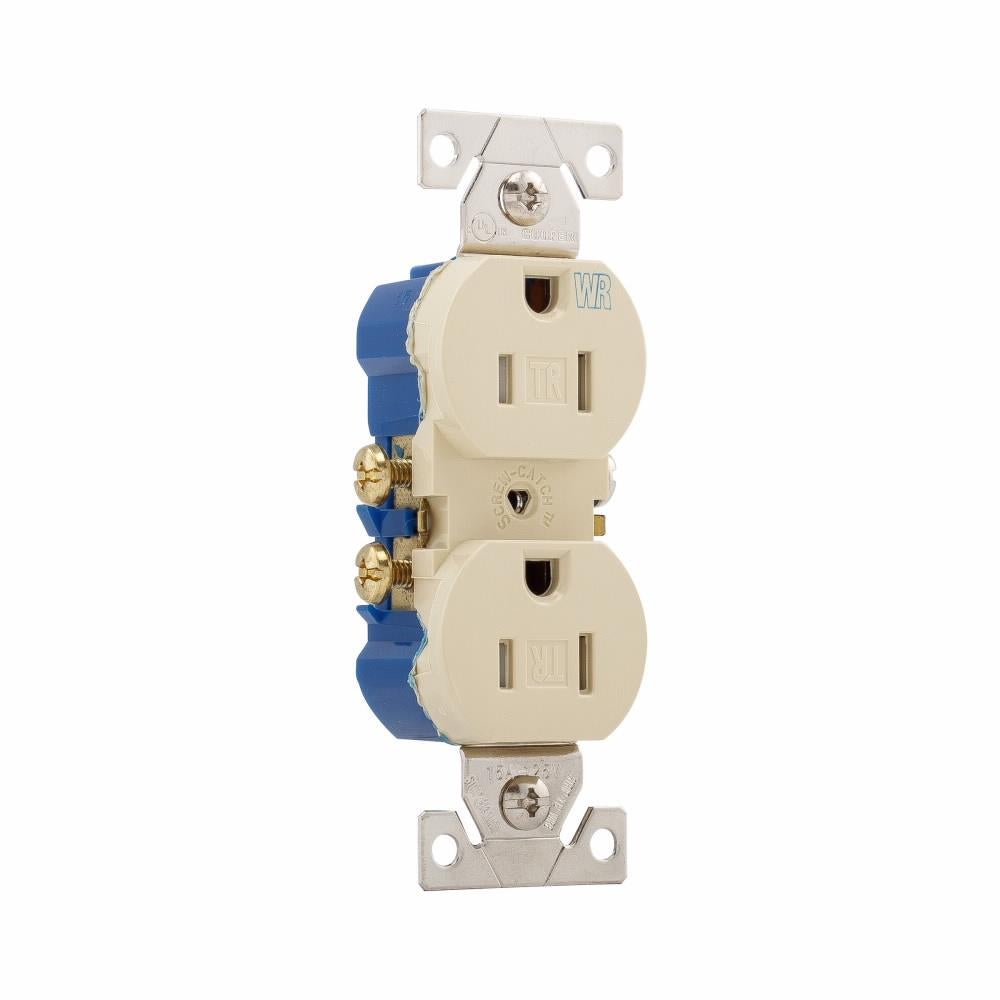

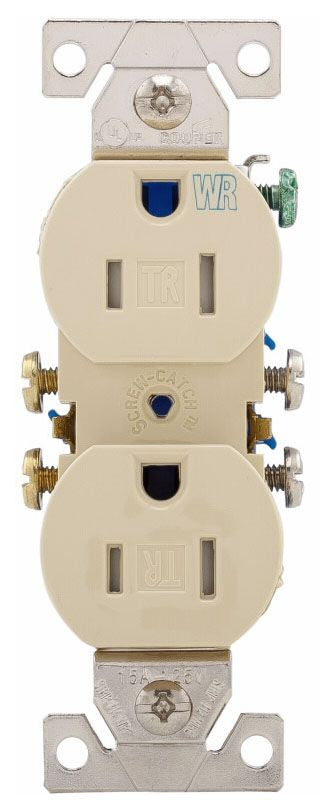

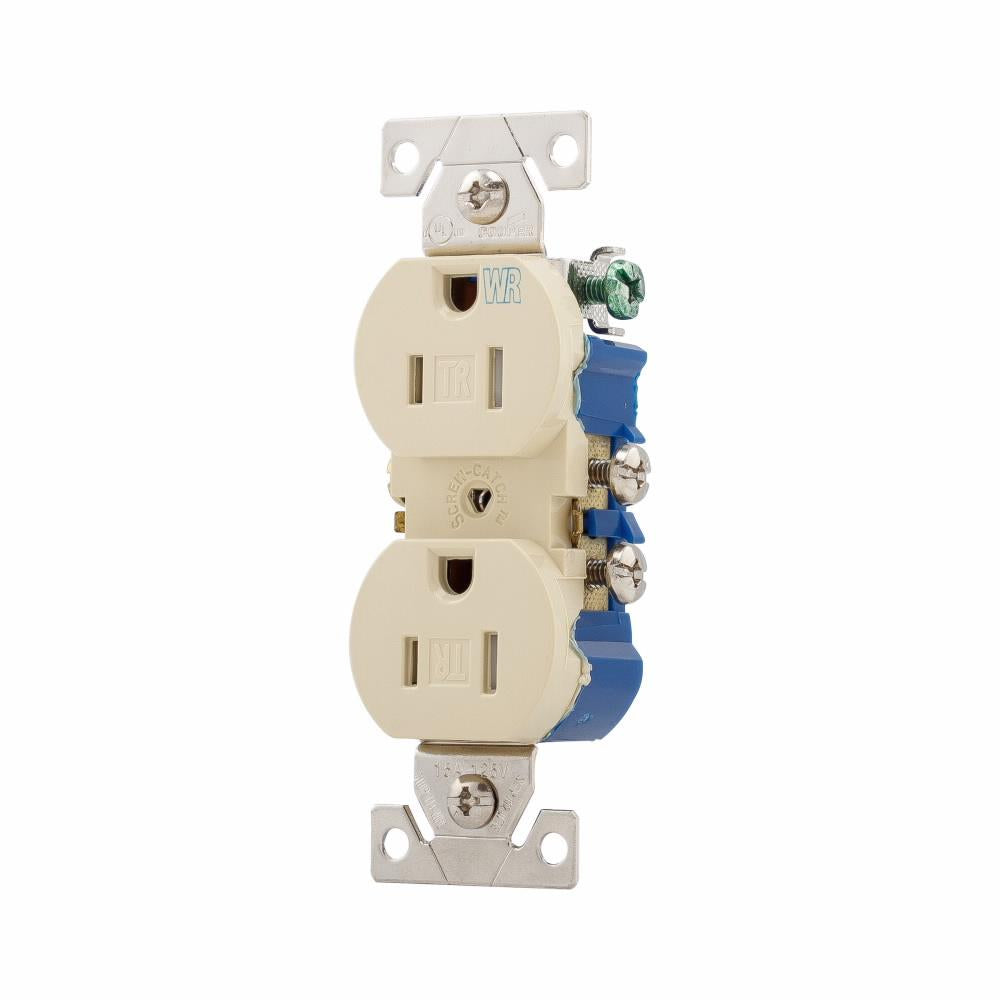

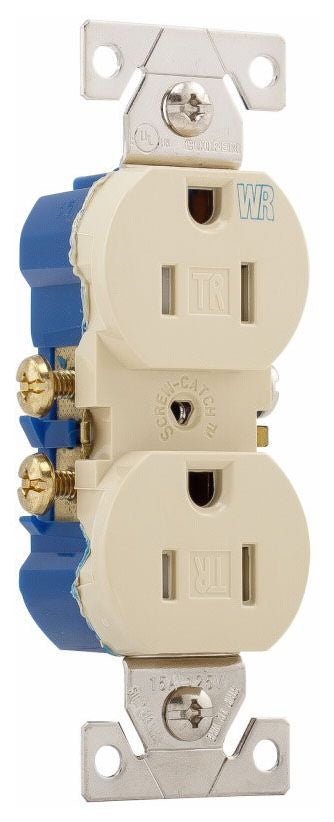

Eaton TWR270V Tamper Resistant Weatherproof Duplex Receptacle, 125 V, 15 A

Product Description

The Eaton TWR270V is a tamper-resistant, weatherproof duplex receptacle operating at 125 V and 15 A. This receptacle is designed to comply with 2011 NEC article 406.9, mandating weather resistance for receptacles in wet or damp locations. It features a built-in UL Listed safety shutter system to prevent foreign objects from being inserted.

• Tamper Resistant
• Weatherproof
• Compliant with 2011 NEC article 406.9

Product Highlights

This duplex receptacle is suitable for residential and commercial outdoor locations, offering protection against rain, snow, ice, moisture, and humidity.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TWR270V
• Country of Origin: MEX

Technical Specifications

• Color: Ivory
• Voltage: 125 V
• Material: Thermoplastic/PVC (Top/Bottom Body), Nickel Plated Steel (Strap)
• Certification: NEMA
• Special Features: Provides compliance with 2011 NEC article 406.9 that states that all receptacles that are placed in a wet or damp locations must be weather resistant., Tamper Resistant feature has built-in UL Listed safety shutter system that prevents the insertion of foreign objects into the receptacle openings
• Grade: Residential/Standard
• NEMA Rating: NEMA 5-15R
• Series: TWR270
• Temperature Rating: -4 to 158 deg F
• Terminal Type: Push-In/Screw
• Number of Poles: 2
• Number of Wires: 3
• Amperage Rating: 15 A
• Wiring: Push, Side
• Application: Commercial
• RoHS/NAFTA Compliant: True
• Wire Size: 14 to 10 AWG
• Design Type: Straight Blade
• Connection Type: Screw
• Mounting Type: Flush Mount
• Flammability Rating: UL 94-V0
• Voltage Rating: 125 Volt AC
• Current Rating: 15 Amp
• Ground Type: Grounding
• Environmental Conditions: Damp/wet
• Receptacle Type: Duplex
• Allowable Wire Size: Push-In Terminals Wiring: #14 AWG copper (CU) Only, Side Wiring: #10-14 Copper or Copper Clad Aluminum
• Torque Rating: 14 lbf-inch
• Face/Body Material: Impact-resistant thermoplastic
• Dielectric Strength: 2000 V
• Insulation: PVC
• AWG: 14 - 10
