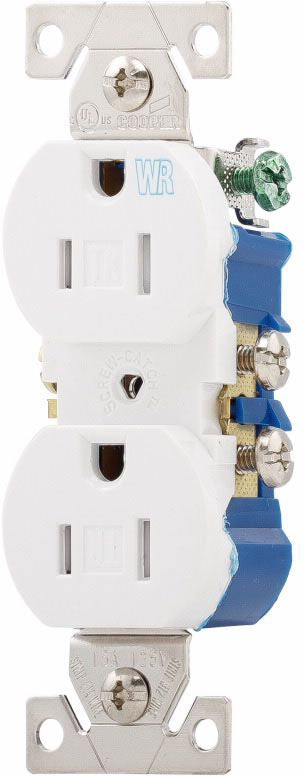

Eaton TWR270GY Duplex Receptacle 15A 125V

EATON
Brand: EATON
SKU: TWR270GY
Availability: In Stock

Ships same day if ordered by 12 pm
$32.37
$32.37
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The EATON TWR270GY is a residential grade duplex receptacle with a 5-15R configuration. Rated at 15A and 125V, it features a thermoplastic/PVC body and brass contacts. This receptacle is both weather and tamper-resistant, suitable for commercial and residential applications. It supports push and side wiring with screw connections for #14 to #10 AWG wire sizes.

  • Weather and Tamper Resistant
  • Suitable for residential and commercial applications
  • Supports both push and side wiring

Product Highlights

The EATON duplex receptacle is ideal for new residential or commercial construction. It is UL and CSA approved.

Product Information

Standard Information

  • Brand: EATON
  • Manufacturer Part Number: TWR270GY
  • Country of Origin: MEX
Technical Specifications
Type
Duplex receptacle
Constructional Feature
Weather Resistant, Tamper Resistant
Configuration
5-15R
Voltage Rating
125 Volt AC
Current Rating
15 Amp
Number of Poles
2
Number of Wires
3
Ground Type
Grounding
Material
Thermoplastic/PVC (Body), Brass (Contact)
Wiring
Push, Side
Grade
Residential
Approval
UL (Canada and US), UL 498, CSA C22.2, NOM 426
RoHS Compliant
True
Connection Type
Screw
Mounting Type
Flush
Flammability Rating
UL 94 V-0
Wire Size
14 to 10 AWG
Temperature Rating
-4 to 140 Deg F
Device type
Receptacle
Amperage Rating
15A
Voltage rating
125V
Contact material
Brass
Features
Tamper resistant Weather resistant
Application
Commercial/residential
Device grade
Standard grade
Wiring method
Side and push
Environmental conditions
Damp/wet
Number of poles
Two-pole
Style type
Standard
Packaging type
Core pack
Environmental resistance
Weather resistant
Allowable wire size
Push-In Terminals Wiring: #14 AWG copper (CU) Only, Side Wiring: #10-14 Copper or Copper Clad Aluminum
NEMA configuration
5-15R
Torque rating
14 lbf-inch
Design type
Straight blade
Face/body material
Impact-resistant thermoplastic
Receptacle type
Duplex
