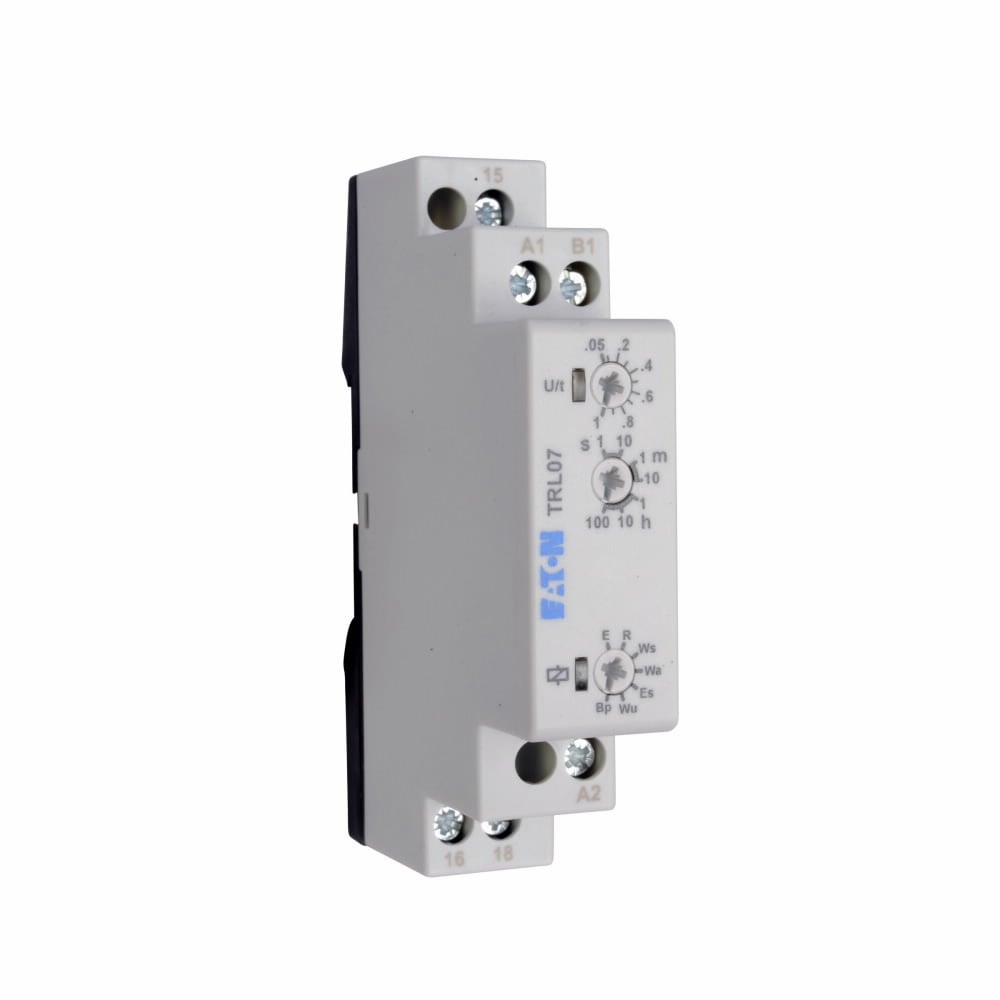

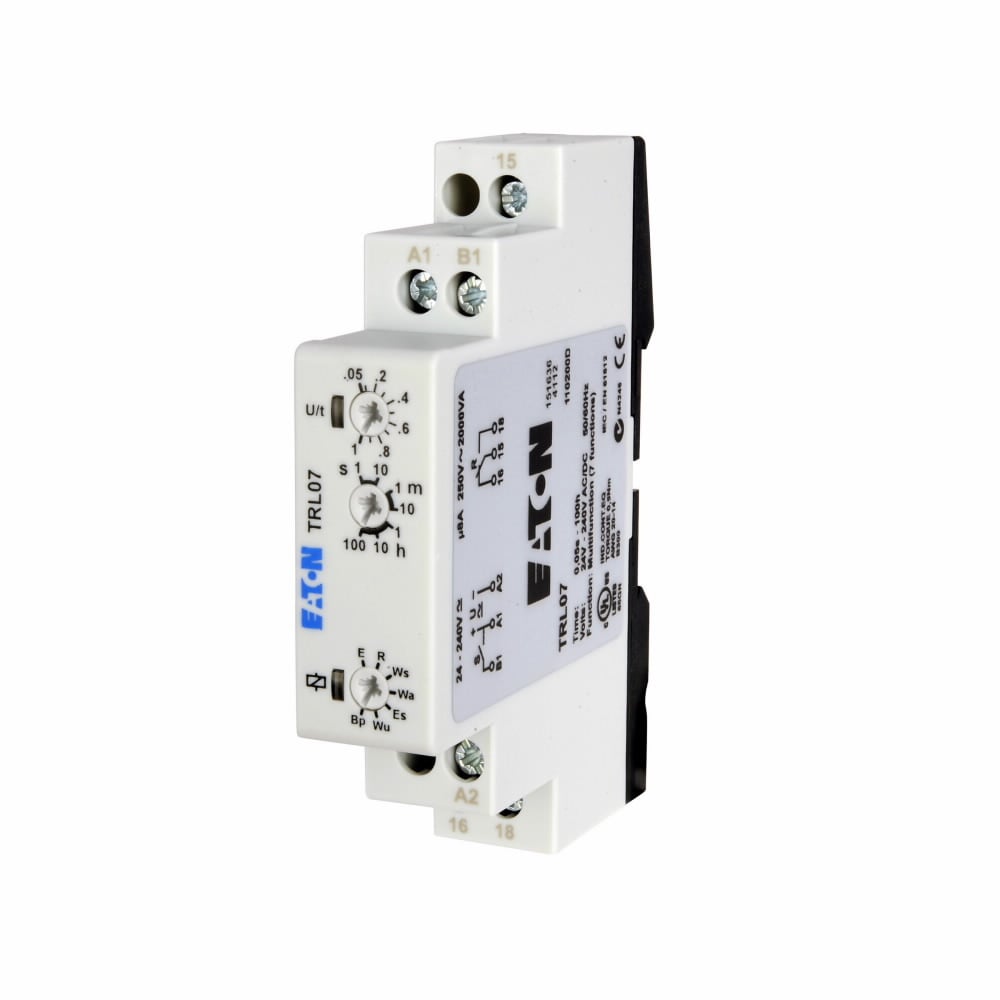

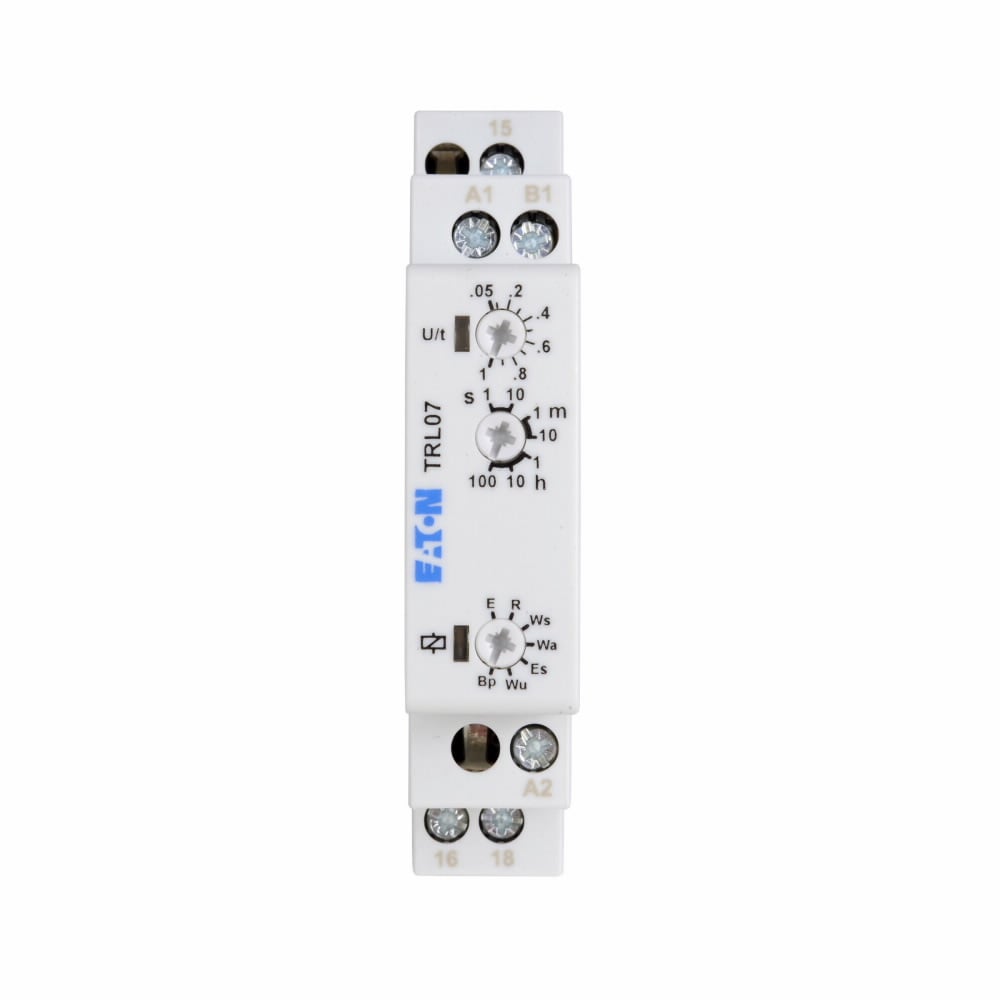

Eaton TRL07 EATON 7-function Universal TR Series Timing Relay, 24-240 Vac/dc, Compact DIN rail mount

Product Description

The Eaton TRL07 is a versatile timing relay designed for various control applications. It offers a time delay setting from 0.05 seconds to 100 hours and operates on an input voltage of 24 to 240 Vac/dc. This compact relay is suitable for DIN rail mounting, making it ideal for minimizing panel space.

• 7 user-selectable timing functions.
• DIN rail mount for easy installation.
• SPDT contact configuration for versatile control options.

Product Highlights

The Eaton TRL07 timing relay provides flexibility for automation and control in industrial applications, ensuring efficient operation for machinery and equipment.

Product Information

Standard Information

• Catalog Number: TRL07
• Manufacturer: Eaton

Technical Specifications

• Voltage Rating: 24 to 240 Vac/dc
• Timing Range: 0.05 s to 100 hr
• Current Rating: 8 A
• Contact Configuration: SPDT
• Mounting Type: DIN Rail
• Enclosure Rating: IP40
• Dimensions: 2.56 in L x 0.69 in W x 3.43 in H
• Functionality: 7 Functions
