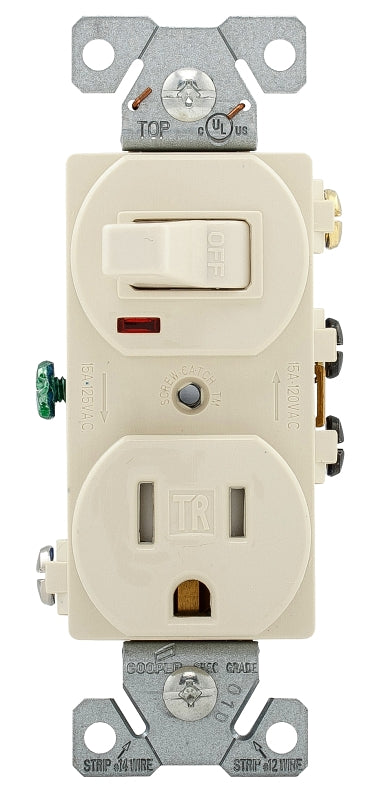

Eaton TR274LA commercial grade combination switch 15A

Product Description

The Eaton TR274LA commercial grade combination switch is a tamper-resistant, auto-grounding device with a neon pilot. Rated for 15A, it features back and side wiring and is suitable for commercial applications. The switch has maintained closure and a duplex style. It is made of thermoplastic and PVC.

• Tamper resistant
• Auto-ground
• Neon pilot

Product Highlights

This combination switch offers a convenient solution for controlling power and includes a receptacle for added functionality.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: EATON-TR274LA

Technical Specifications

• Product Name: Eaton commercial grade combination switch
• Catalog Number: TR274LA
• UPC: 032664750243
• Product Length/Depth: 1.3 in
• Product Height: 4.19 in
• Product Width: 1.08 in
• Compliances: RoHS Compliant
• Certifications: cULus Listed NOM
• Product Type: Commercial grade combination switch
• NEMA Rating: 5-15R
• Special features: Tamper resistant, auto-ground
• Type: Standard
• Amperage Rating: 15A
• Voltage rating: 120V switch, 125V receptacle
• NEMA configuration: 5-15R
• Number of poles: Single-pole
• Configuration: Receptacle Toggle switch
• Illumination: Neon pilot
• Application: Commercial
• Device grade: Commercial
• Wiring method: Back and side
• Contact type: Brass
• Switch type: Single-pole
• Mounting method: Flush
• Closure type: Maintained
• Connector type: Screw
• Material: Thermoplastic PVC
• Allowable wire size: #14-12 AWG
• Operating temperature: -20 to 60 °C
• Torque rating: 12-14 lbf-inch
• Style type: Duplex
• Actuator: Toggle
• Number Of Wires: 3
• Dielectric Strength: 2000 V
• Current Rating: 15 A
• Terminal Type: Screw
• Wire Size: 12 to 14 AWG
• Wiring Type: Back Side
