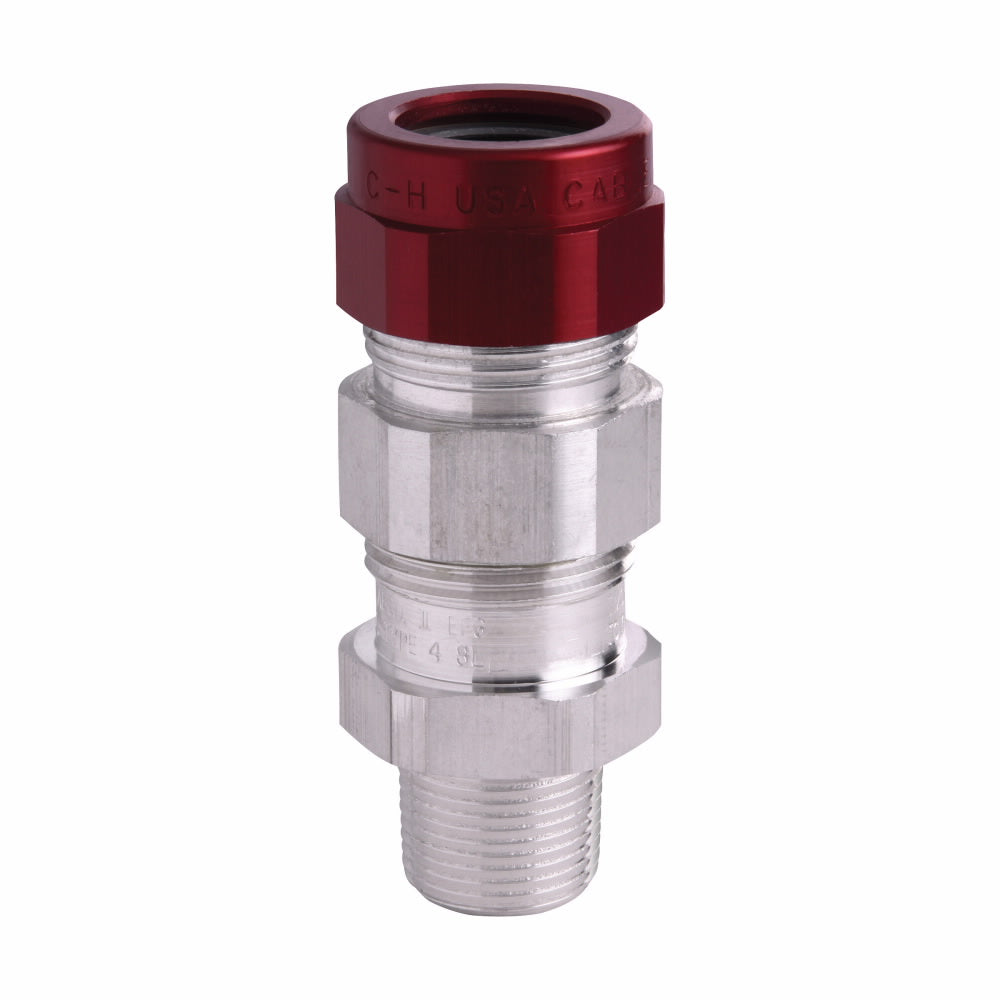

Eaton TMCX7247 TMCX Cable Gland 2-1/2 In NPT

Product Description

The Eaton Crouse-Hinds TMCX7247 is a cable gland designed for armored cables. It accommodates a range of cable sheath sizes and is suitable for various industrial applications. This cable gland features a male NPT connection and is made from aluminum and neoprene materials.

• Type: Cable gland for armored and non-armored barrier
• Outer sheath range: One point ninety-nine to two point seventy-two inches
• Temperature rating: Operates from negative twenty-five to sixty degrees Celsius

Product Highlights

This product is ideal for industrial settings, ensuring secure connections in environments with heavy-duty cable installations.

Product Information

Standard Information

• Brand: Eaton
• Manufacturer: Crouse Hinds

Technical Specifications

• MPN: TMCX7247
• Material: Aluminum/Neoprene
• Dimensions: Seven point five inches by four inches by four inches
• Weight: Four point six pounds
• Application: Suitable for industrial facilities
• Enclosure Rating: IP56; Class I Div 1 Group A B C D; Class II; Class III
• Temperature Rating: Negative twenty-five to sixty degrees Celsius
• Armor Range: One point ninety-three to two point forty-seven inches
