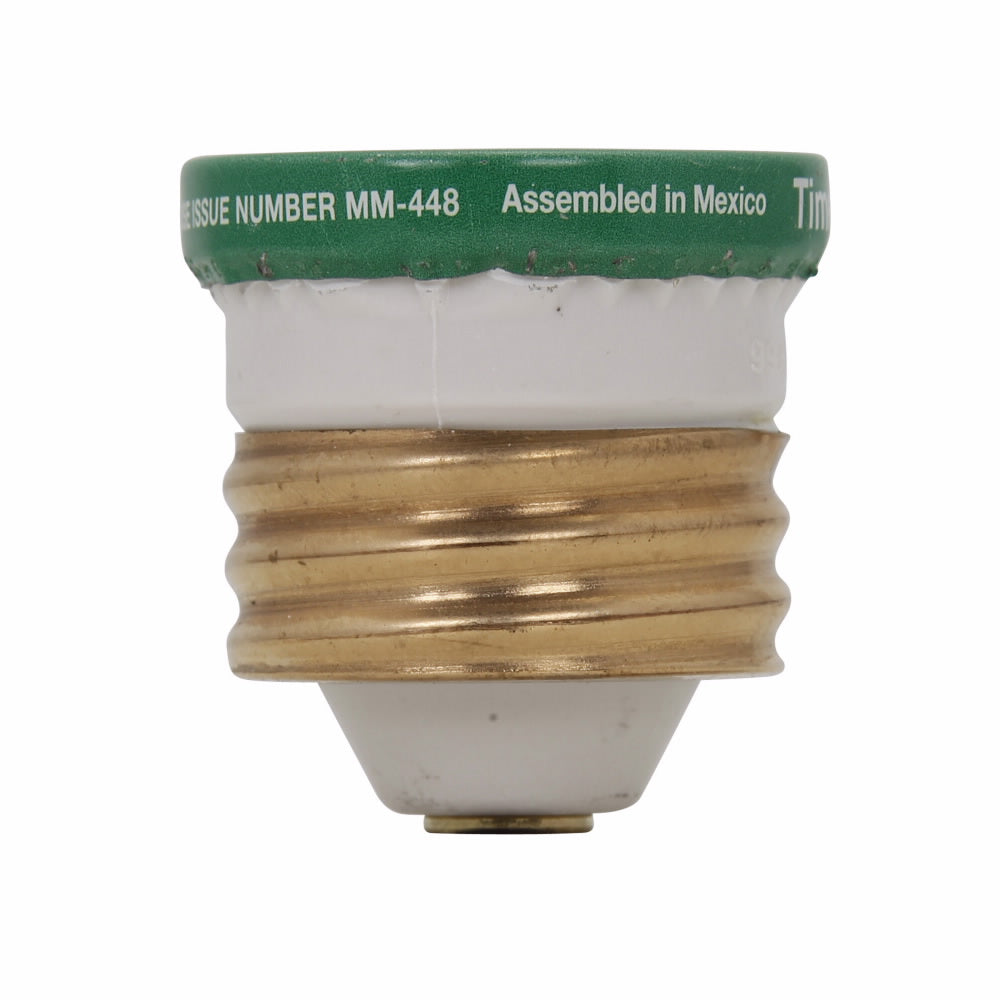

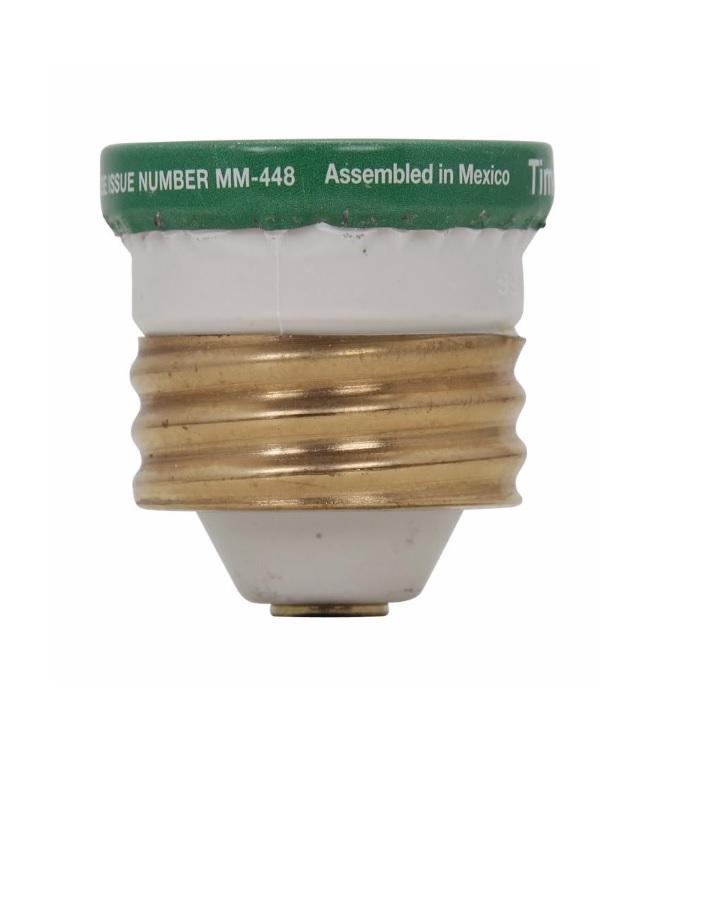

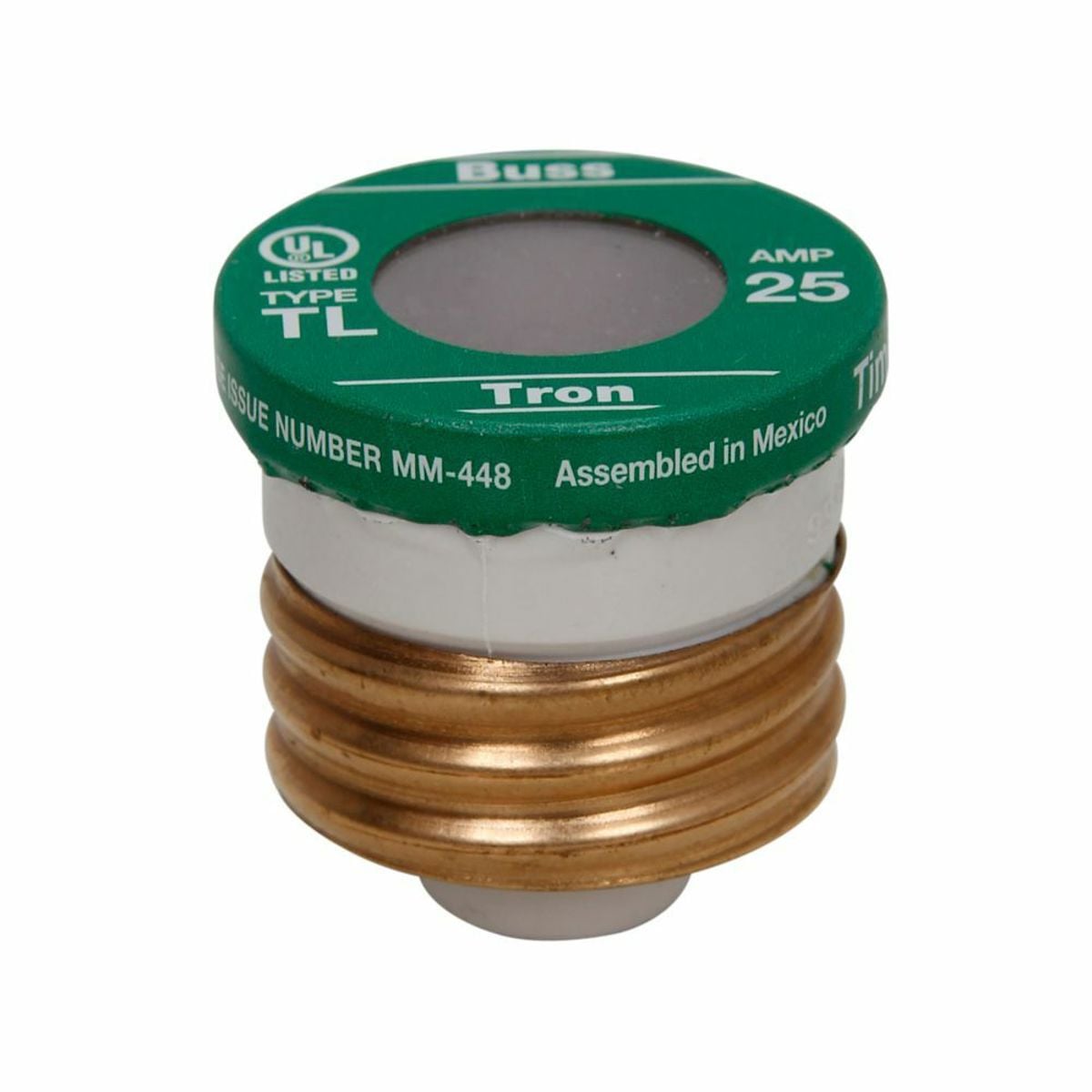

Eaton TL-25 Type TL Plug Fuse 25 A 125 Vac (Threaded mount)

Product Description

The Eaton TL-25 is a Bussmann series Type TL time-delay plug fuse rated 25 A at 125 Vac with a 10 kAIC (RMS symmetrical) interrupt rating and 10 kA short-circuit rating. It uses a single-element slow-blow design in an Edison plug format with a threaded mount, plastic body and brass threads. Typical applications include small motor and high inductive load circuits and box cover units for residential or light commercial use.

• 25 A current rating at 125 Vac with 10 kAIC (RMS symmetrical) interrupt rating and 10 kA breaking capacity
• Type TL time-delay (slow-blow) single-element Edison plug fuse; non-indicating and non-rejection
• Threaded mount Edison base with plastic body and brass threads; stud terminal; standards include UL 248-11 and CE

Product Highlights

Time-delay Edison plug fuse, 25 A 125 Vac, 10 kAIC interrupt rating, threaded mount with plastic body and brass threads

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TL-25

Technical Specifications

• Brand: Eaton
• Manufacturer Part Number: TL-25
• Series: TL
• Fuse Type: Type TL plug fuse (Edison plug)
• Function: Time delay (slow-blow)
• Current Rating: 25 A
• Voltage Rating: 125 Vac
• Interrupt Rating: 10 kAIC (RMS symmetrical)
• Short-Circuit Rating: 10 kA
• Mounting Type: Threaded mount (requires holder)
• Base Type: Edison base
• Body Material: Plastic
• Thread Material: Brass
• Terminal Type: Stud
• Element: Single
• Indicating: Non-indicating
• Rejection: Non-rejection
• Body Size / Dimensions: 1.25 in L x 0.25 in W x 0.25 in H
• Product Weight: 0.044 lb
• Applications: Small motor and high inductive load circuits; box cover units; residential or light commercial
• Standards/Approvals: UL 248-11 (Guide No. JEFV File No. E12112); CE; UL; CSA
• RoHS Compliance: RoHS compliant
