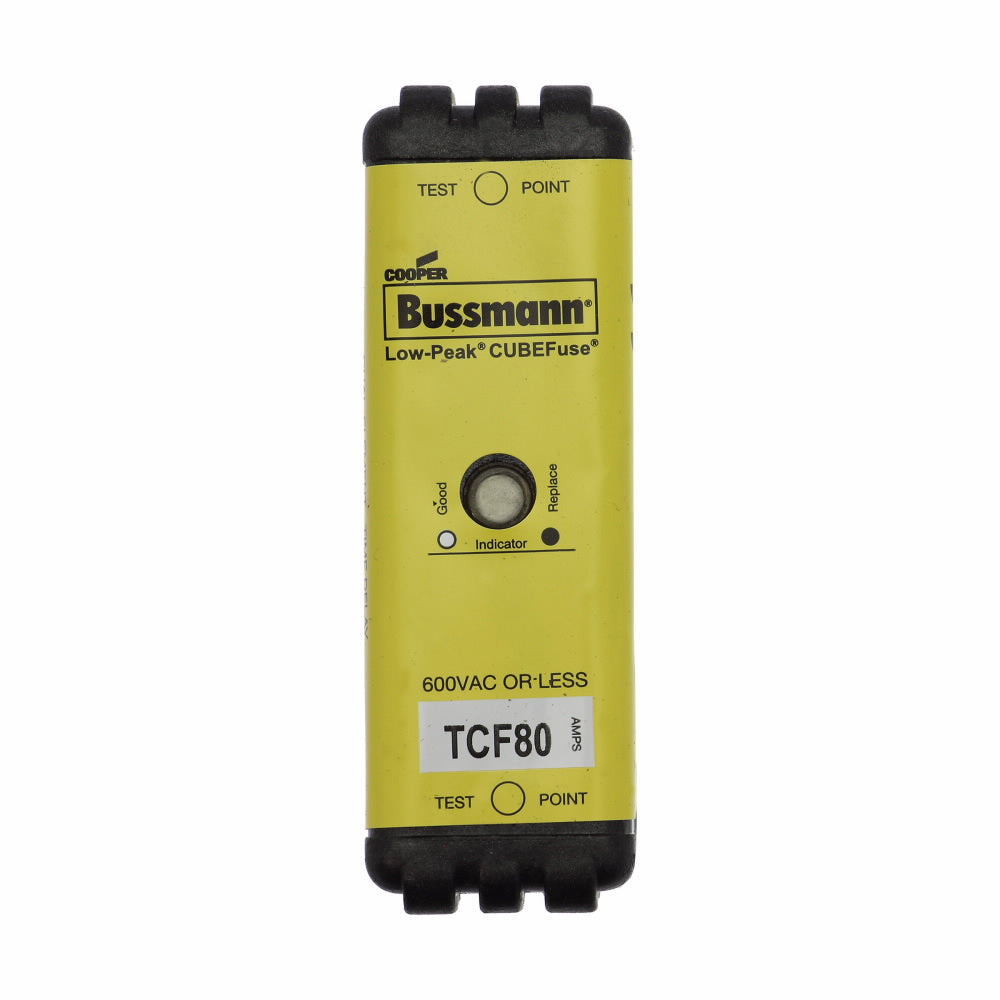

Eaton TCF80 Bus Cubefuse 80 Amp

Product Description

The Eaton TCF80 is a Bussmann CUBEFuse designed for electrical systems. It offers an 80 amp rating and can handle voltages up to six hundred volts AC or three hundred volts DC. This fuse is part of a series that features a unique indicating non-rejection design for enhanced performance.

• 80 Amp rating for reliable performance
• Indicating non-rejection design for optimal safety
• 600 VAC/300 VDC voltage rating for diverse applications

Product Highlights

This fuse provides time delay capabilities, which helps to manage temporary overloads and prevents nuisance circuit interruptions.

Product Information

Standard Information

• Manufacturer: Eaton
• Manufacturer Part Number: TCF80

Technical Specifications

• Amperage Rating: 80 A
• Voltage Rating: 600 VAC / 300 VDC
• Body Size: 3.01 inches L x 1 inch W x 1.26 inches H
• Body Type: Square Blade
• Response Time: 10 seconds at 500%
• Mounting Type: Chassis/DIN Rail
• Material: Glass Filled Polyethersulfone
• Standards/Approvals: CE Certified|CSA 1422-02|RoHS Compliant|UL File No. 53787|UL File No. E4273|UL Guide JFHR
