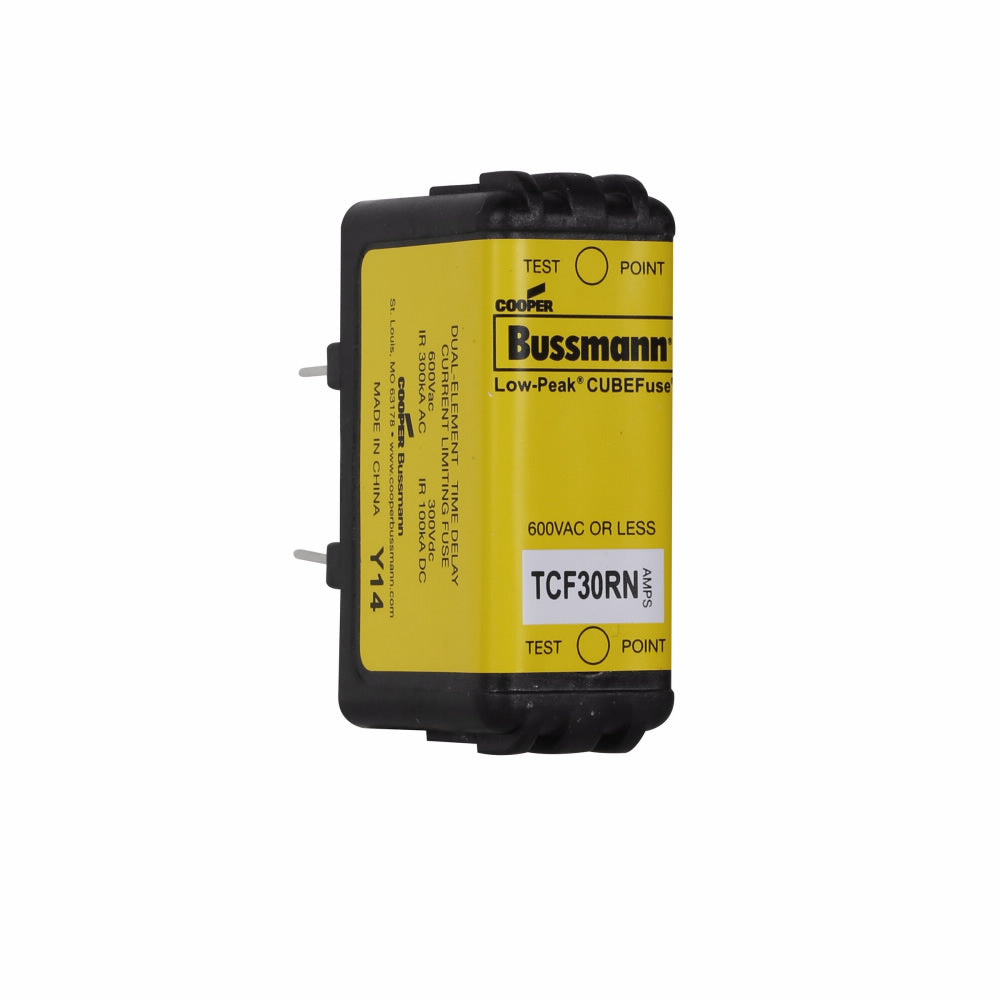

Eaton TCF30RN BUS 30A CUBE FUSE NON-IND

Product Description

The Eaton TCF30RN is a Bussmann CUBEFuse designed for time delay applications. It operates at thirty amps, with voltage ratings of six hundred volts alternating current (VAC) and three hundred volts direct current (VDC). This fuse features a high interrupt rating of up to three hundred kiloamperes (kA), ensuring safety in various electrical systems.

• Non-indicating time delay fuse
• Body size: 0.81 inches diameter by 2 inches length
• Mounting type: Chassis or DIN rail

Product Highlights

This product provides essential protection for electrical systems, minimizing nuisance trips while ensuring reliable performance under fault conditions.

Product Information

Standard Information

• Manufacturer: Eaton
• UPC: 05171222096

Technical Specifications

• Amperage Rating: 30 A
• Voltage Rating: 600 VAC/300 VDC
• Body Size: 0.81 inches diameter x 2 inches length
• Body Type: Square Blade
• Class: CF
• Response Time: 10 seconds at 500%
• Material: Glass Filled Polyethersulfone
• Standards/Approvals: CE Certified, CSA 1422-02, RoHS Compliant, UL File No. 53787, UL Guide JFHR
