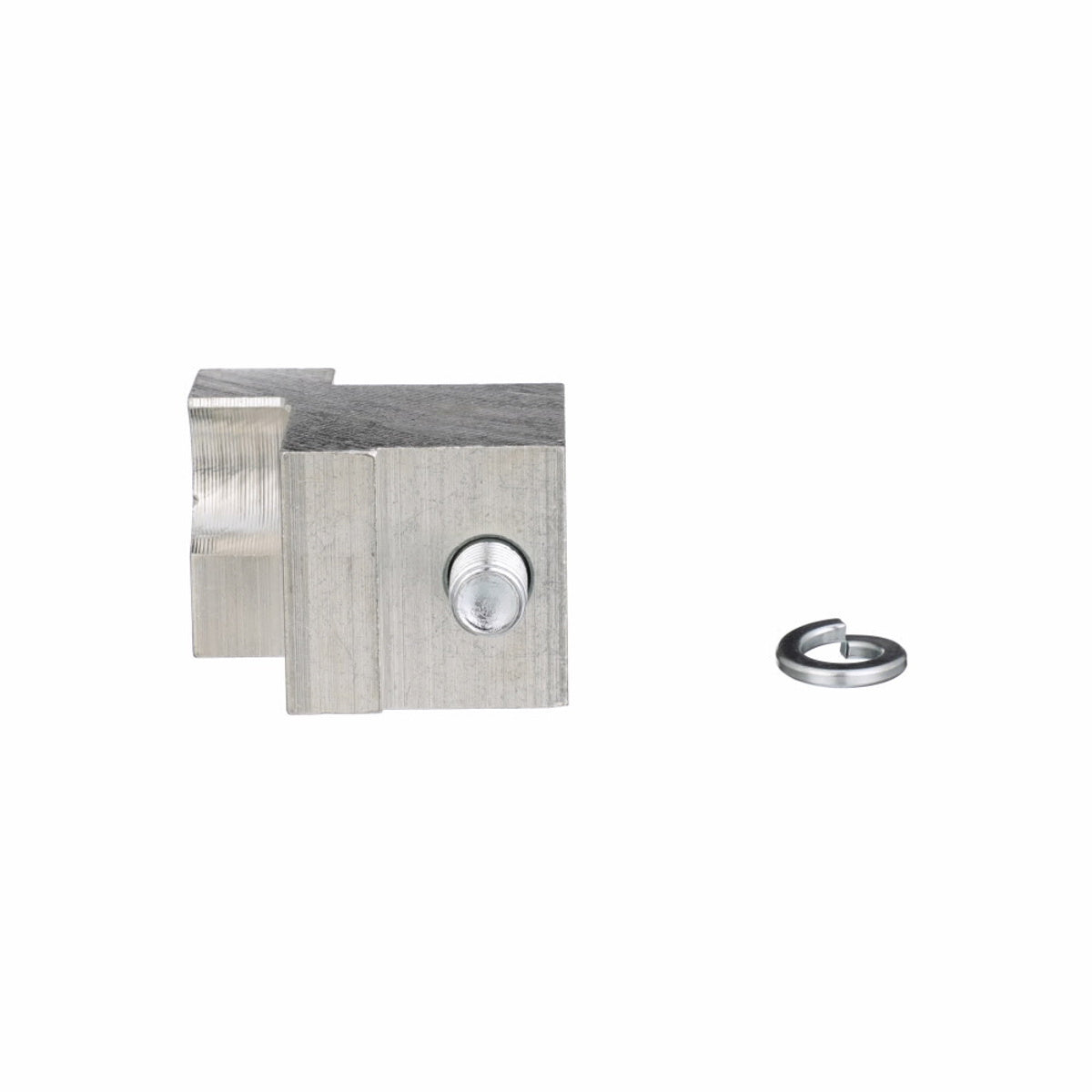

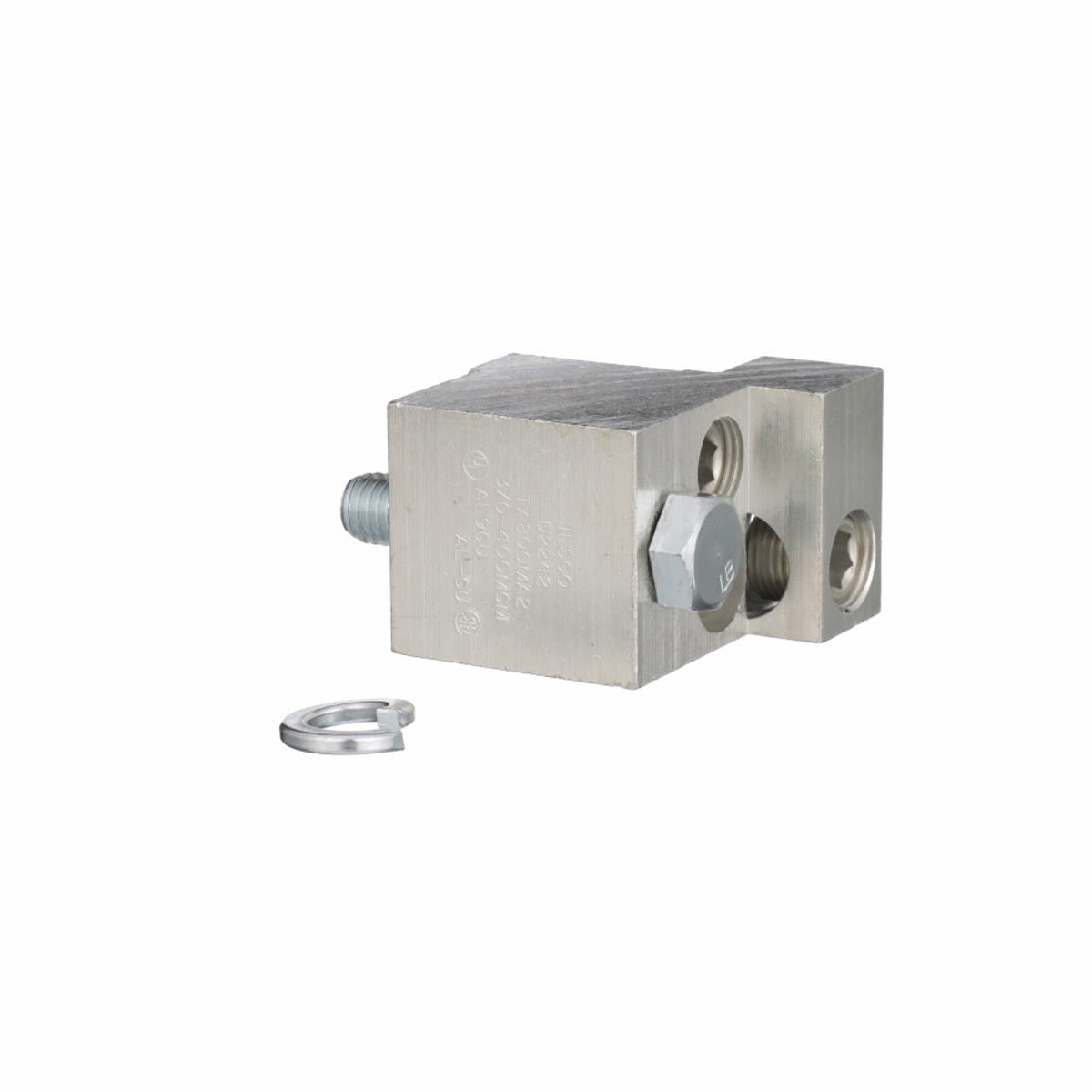

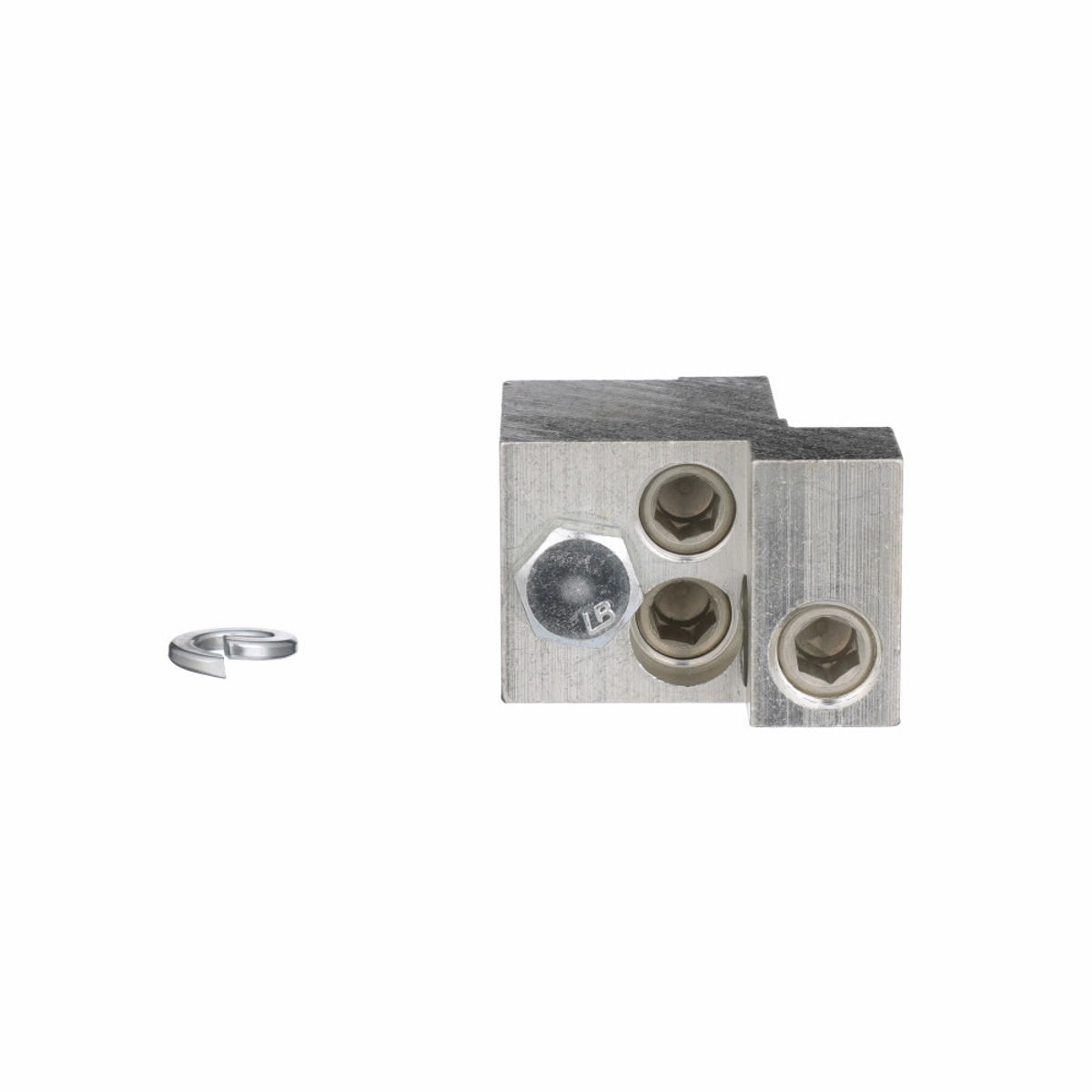

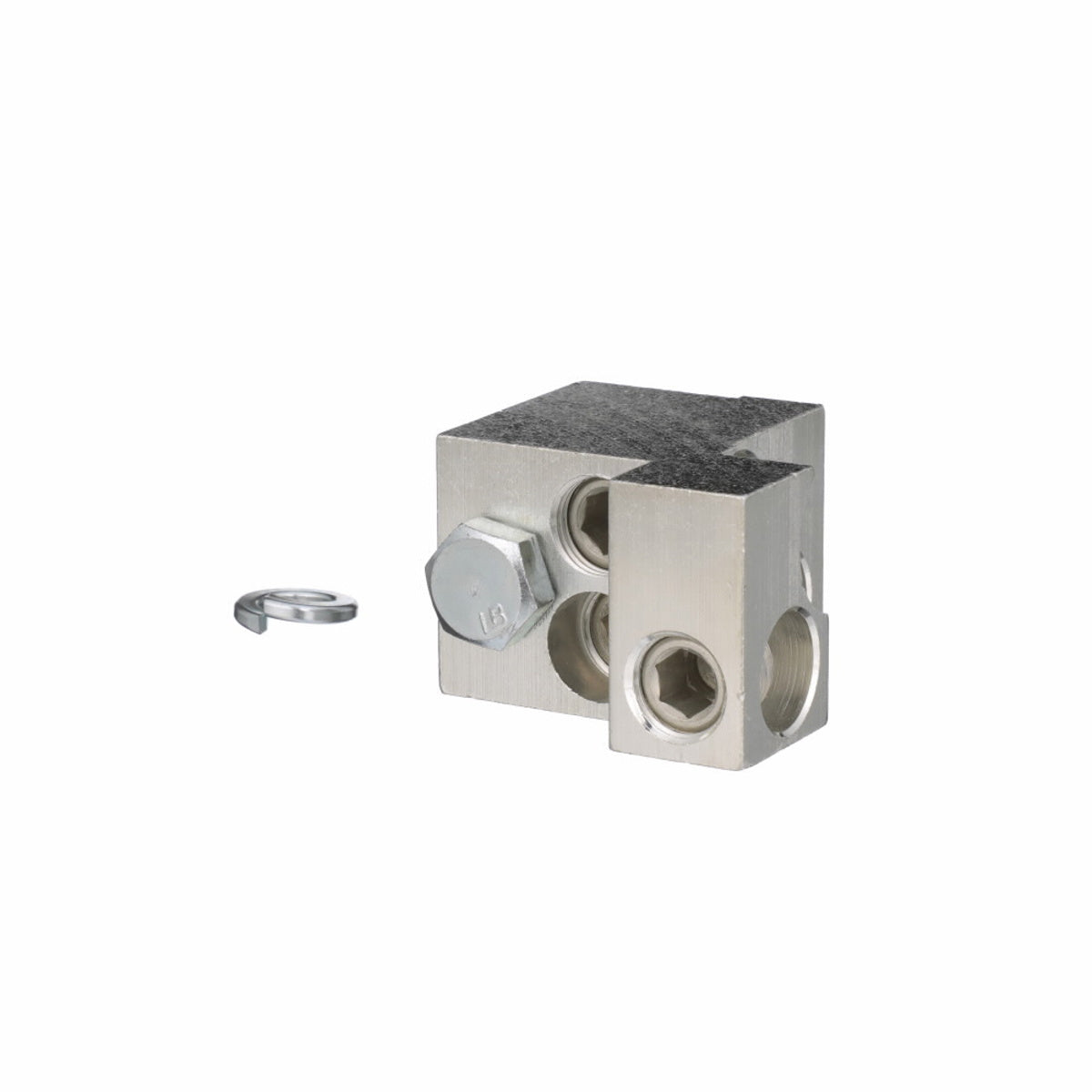

Eaton TA800MA2 Molded Case Circuit Breaker Accessory Terminal 800 A (2 accessory)

Product Description

The Eaton TA800MA2 is a molded case circuit breaker accessory terminal for C Series 800 A Type MAM, HMAM and MAMH breakers. It is a pressure-type aluminum line and load terminal rated 800 A that accepts three conductors from 3/0 AWG to 400 kcmil for copper or aluminum. The unit fits Frame J-K, Series C, measures approximately 2.6 x 2.5 x 3.4 inches, and is UL listed for circuit protection applications.

• Pressure-type aluminum terminal rated 800 A for line and load connections
• Accepts (3) conductors: 3/0 AWG to 400 kcmil, copper or aluminum
• Designed for Eaton C Series Type MAM, HMAM and MAMH breakers (Frame J-K, Series C); UL and CSA recognized

Product Highlights

800 A pressure terminal for C Series MAM/HMAM/MAMH breakers; accepts three conductors 3/0�400 kcmil; compact aluminum construction, UL listed.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TA800MA2
• Country of Origin: United States

Technical Specifications

• Manufacturer: Eaton
• MPN: TA800MA2
• Brand: Eaton
• Product Type: Molded case circuit breaker accessory terminal
• Current Rating: 800 A
• Conductor Range: 3/0 AWG to 400 kcmil (Cu/Al)
• Material: Aluminum
• Terminal Type: Pressure
• Suitable For Use With: C Series 800 A Type MAM, HMAM, MAMH molded case circuit breaker
• Frame: Frame J-K
• Series: Series C
• Dimensions: 2.6 in L x 2.5 in W x 3.4 in H
• Weight: 0.7 lb
• Poles: 1
• Voltage Rating: 600 VAC / 250 VDC
• Standards/Approvals: UL Listed, CSA, E2186
• UPC: 786679679272
• GTIN: 00786679679272
• Application: Circuit protection for panelboards, switchboards, motor control centers, busway; commercial/institutional buildings
• Country of Origin: United States
