Eaton TA602LD Lug Kits 500 A

Product Description

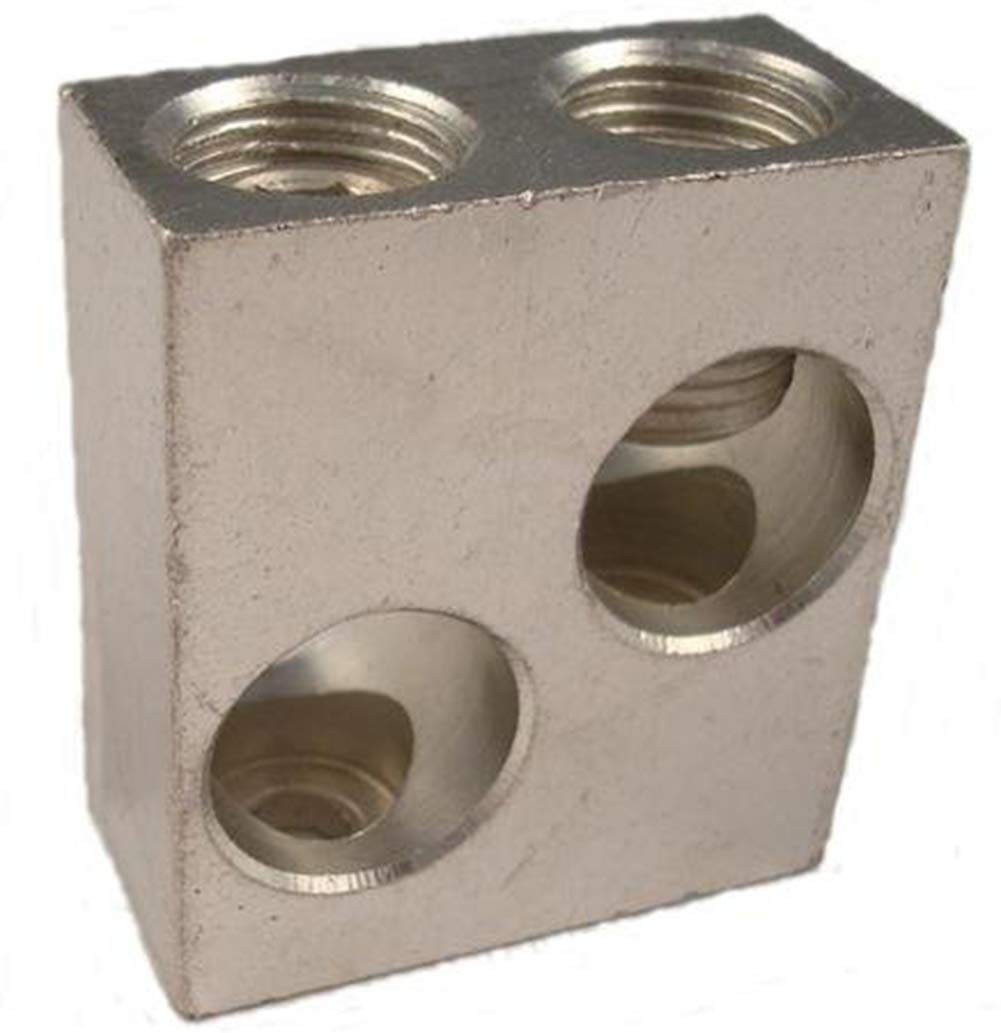

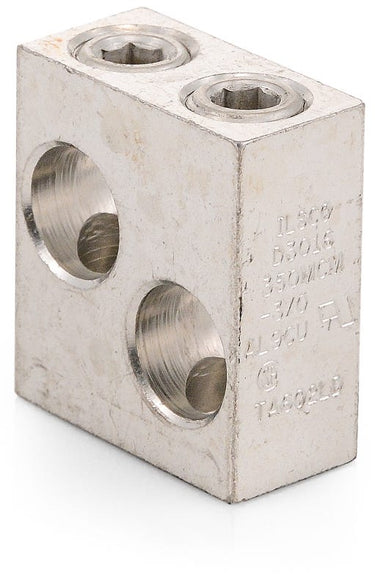

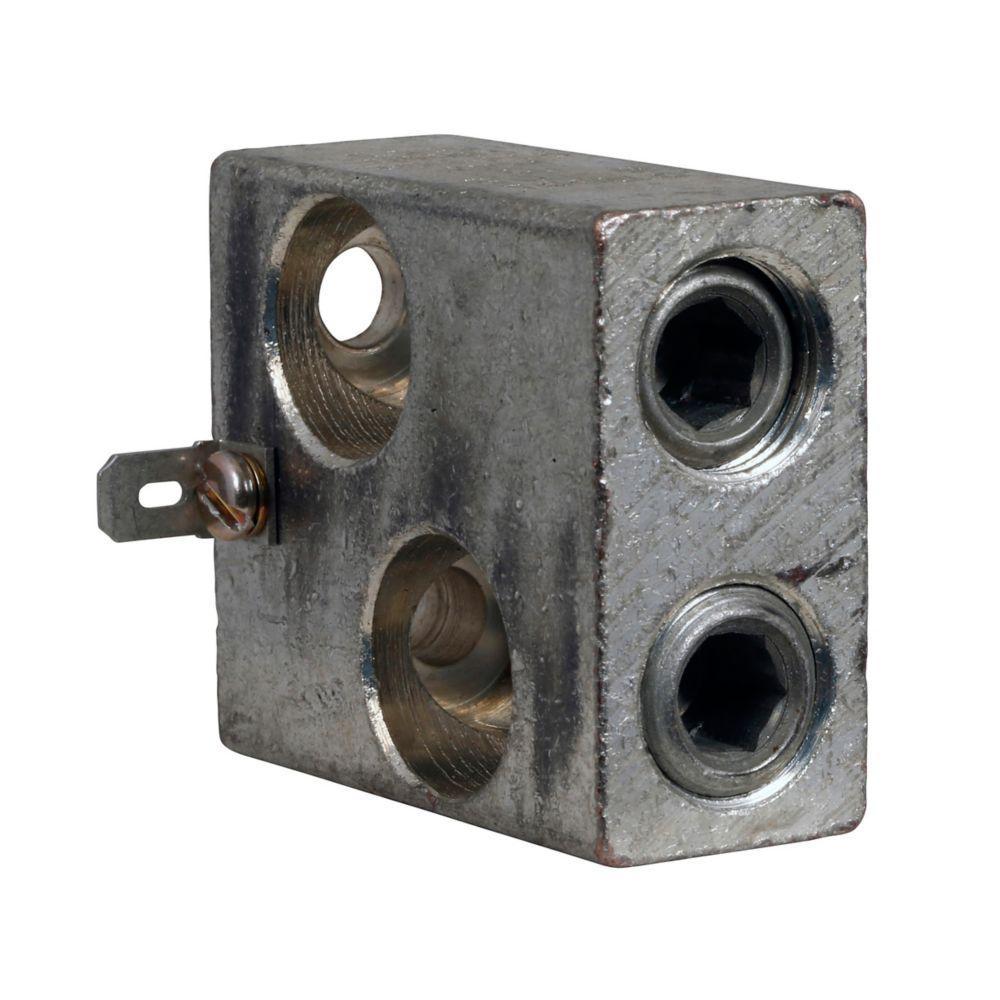

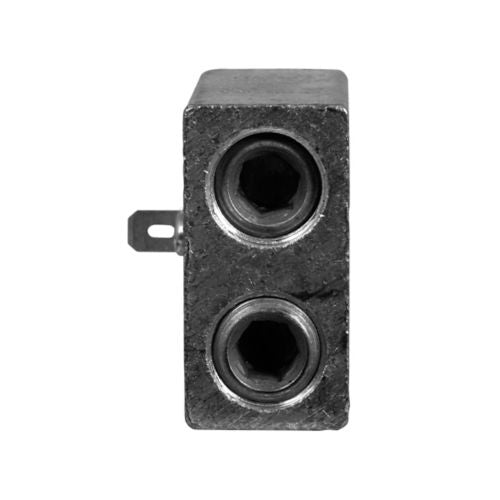

The Eaton TA602LD lug kit is for line and load terminals. It is made of aluminum and compatible with Cu/Al wire, accepting 3/0-350 AWG. Designed for 500 Amp L-Frame breakers, this kit includes 2 conductors and 1 lug, suitable for panelboard, switchboard, motor control center, and busway applications.

• Line and Load Terminals
• Aluminum, Cu/Al Wire
• Accepts 3/0-350 AWG

Product Highlights

The Eaton TA602LD lug kit ensures dependable branch circuit protection for systems up to 600 VAC.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: TA602LD
• Country of Origin: USA

Technical Specifications

• Wire Type: Aluminum, Cu/Al
• Conductors: 2
• Lug: 1
• Breaker Compatibility: For 500 Amp L-Frame Breakers
• Terminal Type: Line and Load Terminals
• Wire Gauge: Accepts 3/0-350 AWG
• Product Name: Eaton molded case circuit breaker accessory terminal
• Catalog Number: TA602LD
• UPC: 786679852064
• Product Length/Depth: 2.5 in
• Product Height: 1.7 in
• Product Width: 1.9 in
• Certifications: UL Listed
• Global Catalog: TA602LD
• Product Type: Molded case circuit breaker accessory
• Amperage Rating: 500 A
• Frame size: Frame J-K
• Series: C
• Type: One terminal and one cover per pole kit
• Brand: Eaton/Cutler-Hammer
• Amperage: 500
• Voltage: 600VAC
• Approval: UL
• Frame Type: HLDDC, LD, HLD, HLDB, LDCB, LDC, LES, CLD, CHLD, CLDC, LW, HLW
• Length (in): 2.5
• Width (in): 1.9
• Height (in): 1.7
• For Use With: HLDDC, LD, HLD, HLDB, LDCB, LDC, LES, CLD, CHLD, CLDC, LW, HLW Frame Molded Case Circuit Breakers
• Mpn: TA602LD
• Gtin: 786679852064
• Poles: 1
• Allowable Gauge Range: 3/0 - 350
• Conductor Range: 3/0 AWG to 350 kcmil
• Suitable For Use With: C Series 500 A Type LD, HLD and LDC Thermal Magnetic Molded Case Circuit Breaker
• Length: 2-1/2 in
• Width: 1.9 in
• Height: 1.7 in
• Material: Aluminum
