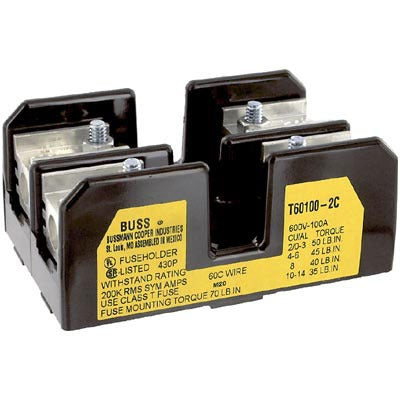

Eaton T60100-2C Class T modular fuse block 600V (2-pole)

Product Description

Eaton T60100-2C is a Class T modular fuse block rated for 600 VAC/VDC, intended for 61 to 100 A fuses in a two-pole configuration. It provides a 200 kA interrupt/short-circuit rating, box lug terminals accepting #2/0 AWG copper or aluminum conductors, and glass polyester construction. The unit is chassis mountable and accommodates Class T or JJS series cartridge fuses with a fuse length of 2.95 in and diameter of 3/4 in.

• 200 kA interrupt/short-circuit rating; rated 600 VAC/VDC for control and individual circuits
• Box lug connection supporting #2/0 AWG copper or aluminum conductors; two-pole configuration
• Glass polyester construction; accommodates 2.95 in length x 3/4 in diameter Class T or JJS series cartridge fuses

Product Highlights

Class T modular fuse block, 600 VAC/VDC, 61–100 A, two-pole, 200 kAIC interrupt rating, box lug for #2/0 AWG Cu/Al

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: T60100-2C
• Country of Origin: Mexico
