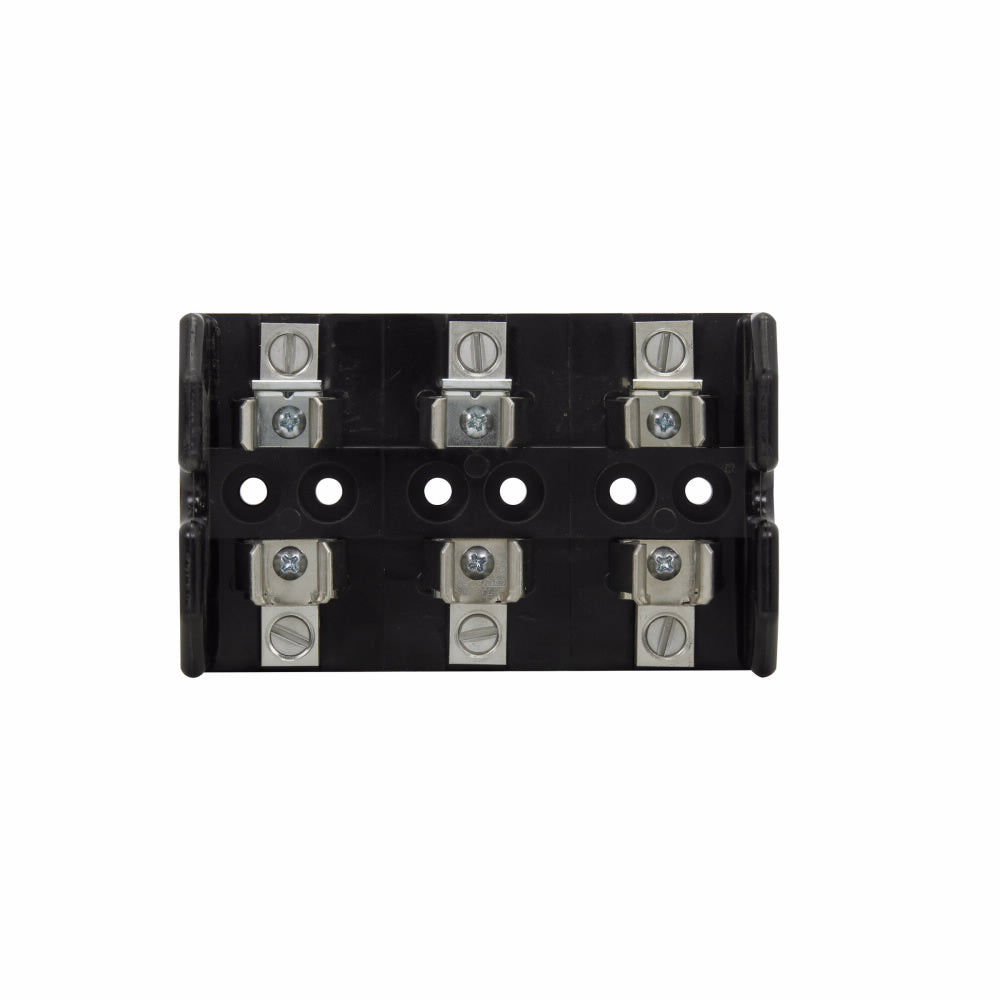

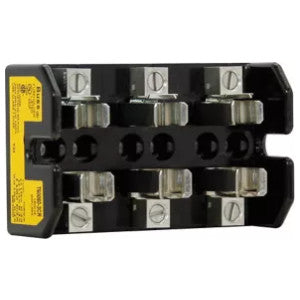

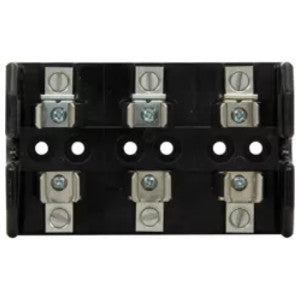

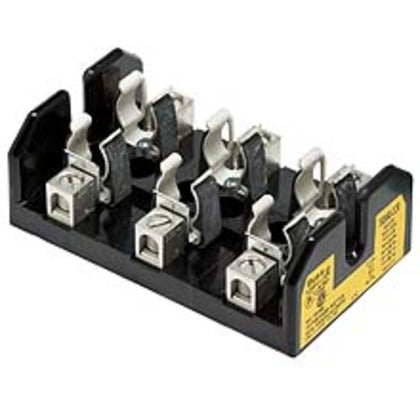

Eaton T60060-3CR Bussmann fuse block 600V 3 pole

Product Description

Eaton T60060-3CR is a Bussmann Class T modular fuse block rated for 600 Vac/Vdc. It supports 31–60 A fuses in a three-pole configuration and provides a 200 kAIC interrupting rating for industrial control and power distribution circuits. The unit is constructed of glass polyester with CR corrosion-resistant features, uses box lug terminations, accepts #2 AWG copper or aluminum conductors, and fits Class T cartridge fuses (0.81 in x 1.56 in).

• Class T modular fuse block, rated 600 Vac/Vdc for individual control and industrial circuits; supports 31–60 A fuses.
• Three-pole design with box lug termination; accepts #2 AWG copper or aluminum conductors and uses Class T cartridge fuses.
• 200 kAIC interrupt rating, glass polyester CR construction, chassis/panel/surface mounting options, fuse size 0.81 in diameter x 1.56 in length.

Product Highlights

Class T modular fuse block, 600 Vac/Vdc, 31–60 A, three-pole, 200 kAIC, box lug, accepts #2 AWG Cu/Al, glass polyester, CR

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: T60060-3CR
• Country of Origin: Mexico

Technical Specifications

• Brand: Eaton
• Manufacturer Part Number: T60060-3CR
• Series: Bussmann T600
• Product Type: Modular fuse block
• Fuse Class: Class T
• Voltage Rating: 600 Vac/Vdc
• Current Range: 31-60 A
• Poles: 3
• Terminal Type: Box lug
• Interrupting Rating: 200 kAIC
• Material: Glass polyester
• Corrosion Rating: CR (corrosion resistant)
• Conductor Size: #2 AWG Cu/Al
• Wire Range: 2 - 14 AWG (reported in some sources) - see notes
• Fuse Size: 0.81 in diameter x 1.56 in length
• Dimensions: 2.94 in L x 4.86 in W x 1.75 in H
• Pin Spacing: 1.63 in +/- 0.016 in
• Mounting Type: Chassis / Panel / Surface
• Weight: 0.55 lb
• Compatible Fuse Type: Class T cartridge fuses (JJS series referenced)
• Certifications: UL Listed, CSA Certified, RoHS Compliant, CE Marked
• Application: 600 Vac/Vdc or less control systems and individual control circuits
