Eaton SM100SFR Type Sm Safety Handle Mechanism Right Hand

Product Description

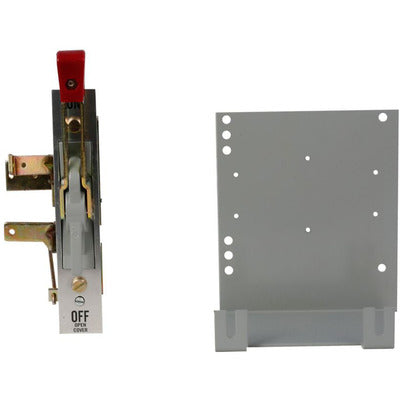

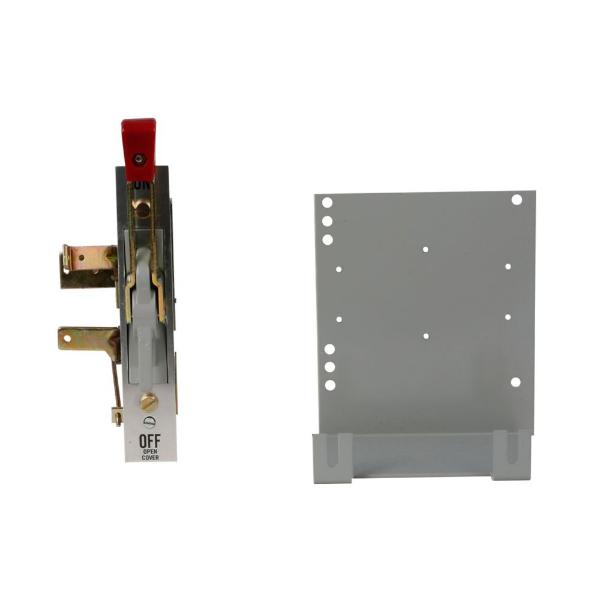

The Eaton SM100SFR Type Sm Safety Handle Mechanism is a right-hand handle mechanism. Designed to prevent tampering by unauthorized individuals and enhance personnel safety. It conforms to type 12 and JIC requirements, making it suitable for automotive and machine tool industries. It is also known as 786679404935 and CUTSM100SFR.

• Designed to prevent tampering by unauthorized individuals and provides optimum personnel safety
• Conforms to type 12 and JIC requirements
• Includes a predrilled mounting plate for simplified customer installation

Product Highlights

The Eaton SM100SFR safety handle mechanism is preassembled in a rugged cast housing and can be used on any size enclosure.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: SM100SFR
• Country of Origin: USA

Technical Specifications

• Type: Handle Mechanism
• UNSPSC: 39121616
• Application: Commercial, Institutional Buildings, Structures and Circuit Protection Applications
• Dimensions: 11.4 x .6 x 4.8
• Suitable For Use With: Type DS 30/60/100 A Fusible Disconnect Switch and Molded Case Circuit Breaker
• Primary brand: Eaton
• Order code / Manufacturer SKU: SM100SFR
• Manufacturer product status: Commercialized
• UPC code: 786679404935
• Manufacturer description: MCCB Miscellaneous Handle Mechanism Parts - Handle Mechanism - Type SM - Right Mounting - 30/60/100A Fusible Disconnect - door hardware series DH
• Product length/depth: 11.4"
• Product height: 4.8"
• Product width: 6.6"
• Product weight: 6.5 lb
• Compliances: Contact Manufacturer
• Amperage rating: 30 60 100A
• Mounting method: Right
• Frame size: Frame J-K
• Amps Rating: 30/60/100A
• Height: 4 4/5"
• Length: 11 2/5"
• Mounting Type: Right
• Width: 6 3/5"
