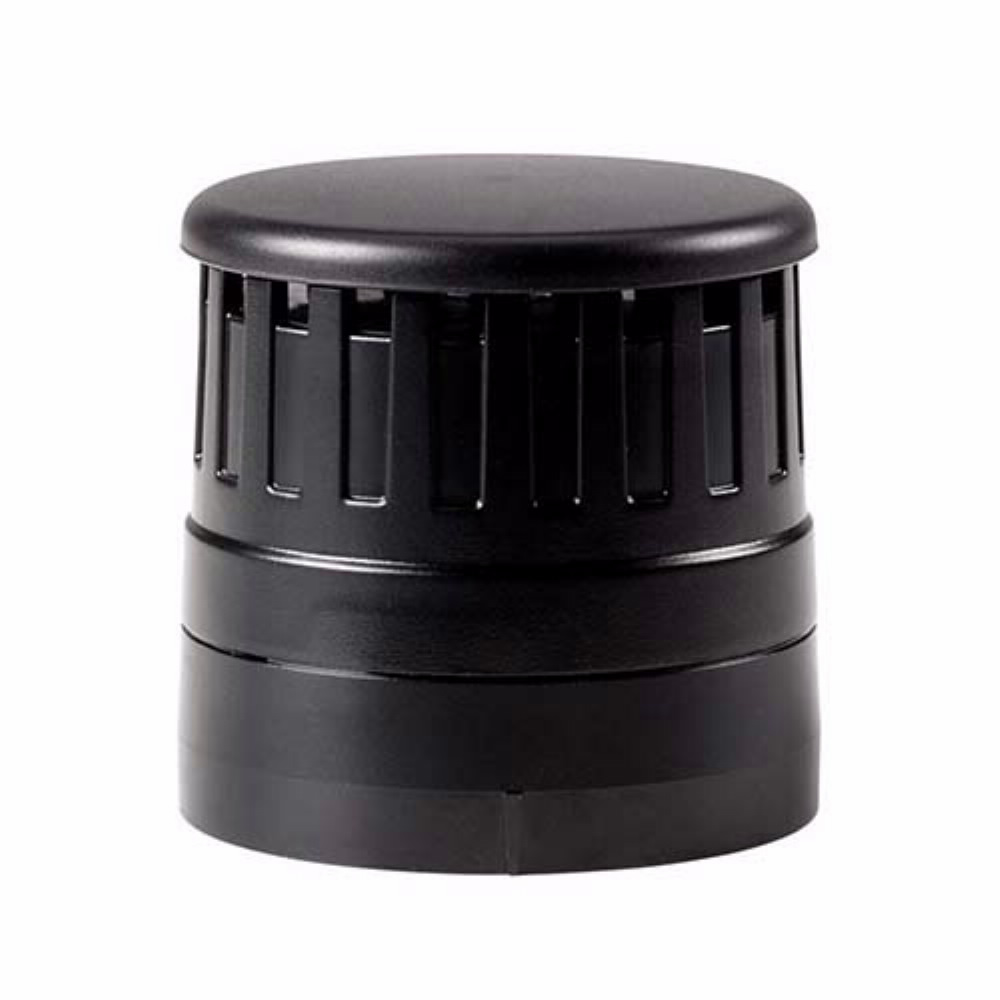

Eaton SL7-AP120 Stack Light Acoustic Module 110/120 Vac

Product Description

The Eaton SL7-AP120 is a stack light acoustic module designed for continuous tone alarm applications. With a voltage rating of 110/120 Vac and a maximum current of 41 mA, this module produces a loud signal at 100 dB. It features an internal DIP switch and potentiometer for easy adjustments. This device is suitable for use in control and automation systems where clear notification of system status is required.

• Voltage: 110/120 Vac
• Amperage: 41 mA
• Decibel Output: 100 dB

Product Highlights

This module is built to inform users about material requirements, system downtimes, and potential hazards, enhancing machine availability and control.

Product Information

Standard Information

• Brand: Eaton
• Catalog Number: SL7-AP120

Technical Specifications

• Voltage Rating: 110/120 V
• Current Rating: 41 mA
• Sound Level: 100 dB
• Temperature Rating: -22 to 140 deg F
• Material: Polycarbonate
• NEMA Rating: 4/4X/13/IP66
• Dimensions: 70 mm diameter
• Standards: cULus Listed, CE Certified, IEC Rated
