Eaton SL-25PK4 Time-delay Plug Fuse 25A 125V 4-pack

Product Description

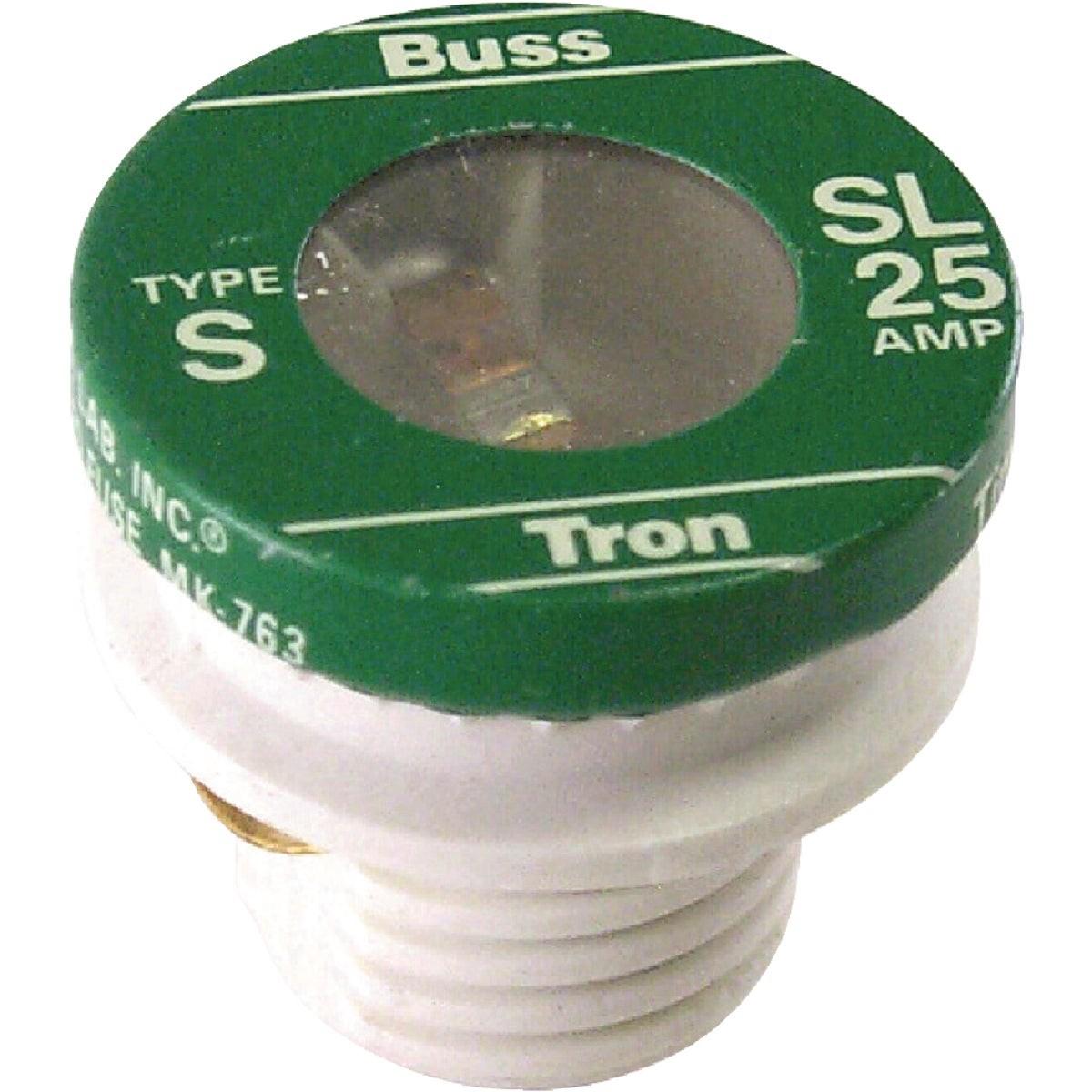

The EATON SL-25PK4 is a medium-duty, time-delay plug fuse rated at 25 amps and 125 volts AC, sold in a 4-pack. It uses a loaded link design with a rejection base that physically prevents installation of a higher-amperage fuse, reducing the risk of overcurrent damage to wiring and equipment. An extra-large clear window gives technicians and homeowners a quick visual indication of fuse status without removing the fuse from the socket. The SL-25PK4 carries a 10,000 ampere interrupting capacity (AIC) rating and is UL listed, making it suitable for residential electrical panels and load centers where code-compliant overcurrent protection is required.

This fuse is designed for residential circuits that serve electric motors, relays, and solenoids — loads that draw high inrush current at startup and require a time-delay element to avoid nuisance trips. Typical applications include kitchen appliance circuits, garage door opener circuits, utility room equipment, and similar motor-load branch circuits. The SL rejection base is compatible with standard Edison-base fuseholders that have been fitted with a rejection-base adapter, ensuring the correct amperage rating is maintained throughout the life of the installation.

Key Features

• Time-delay design handles motor inrush current without nuisance tripping
• Loaded link rejection base prevents installation of a larger-amperage fuse
• Extra-large clear window for fast visual blown-fuse identification
• 25A rating at 125V AC with 10,000 AIC interrupting capacity
• UL listed for residential overcurrent protection applications
• 4-pack quantity reduces return trips for common service calls

Compatibility

Designed for use in residential fusible panelboards and load centers equipped with SL-type rejection-base fuseholders. Suitable for branch circuits containing electric motors, relays, or solenoids in kitchens, garages, and utility rooms.

Installation Notes

Fuse replacement should be performed by a qualified electrician in accordance with NEC requirements. Always shut off the main disconnect or isolate the affected circuit before removing or installing a fuse. Confirm that the replacement fuse amperage matches the circuit conductor rating before installation. Do not defeat or bypass the rejection base feature by using non-SL fuseholders that accept standard Edison-base fuses.

Technical Specifications

• Amperage Rating: 25A
• Voltage Rating: 125V AC
• Interrupting Capacity: 10,000 AIC
• Fuse Type: SL Time-Delay Plug Fuse
• Base Type: Rejection Base (Tamper-Proof Porcelain Threads)
• Quantity per Package: 4
• Weight: 0.25 pounds
• Certifications: UL Listed

Standard Information

• Brand: EATON
• Manufacturer Part Number: SL-25PK4
