Eaton SGS75 CWD Sgl Eye Support Grip

Product Description

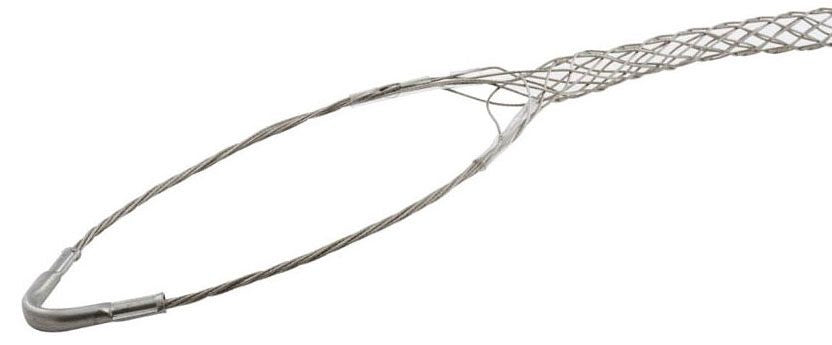

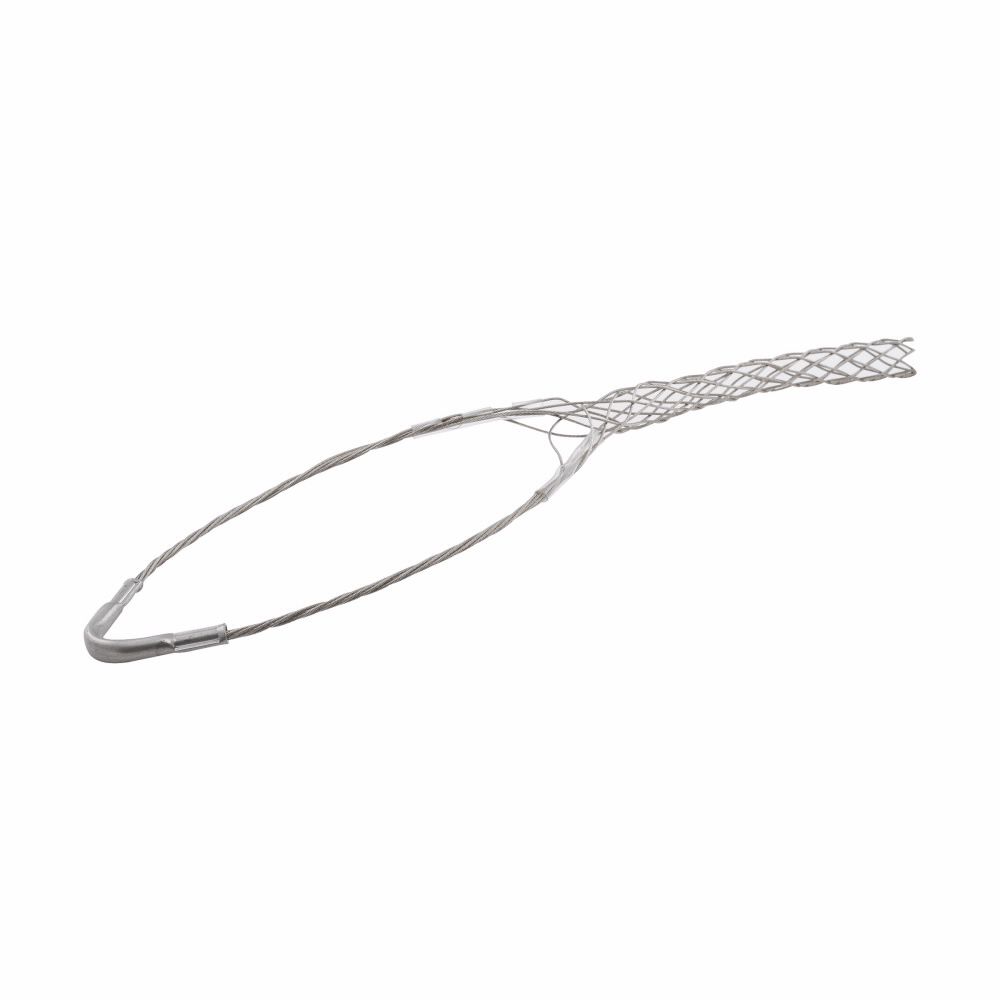

The EATON SGS75 is a standard support grip with a closed mesh single eye. Constructed from tin-coated bronze, it is designed to support utility distribution lines and can be used for cable TV or fiber optic cable support. It has a break strength of 1300 lbs and a cord diameter between 0.75-0.99".

• Closed Mesh Single Eye
• Cord diameter: 0.75-0.99 in
• Break strength: 1300 lbs

Product Highlights

Standard support grip made from tin-coated bronze with a closed mesh single eye, suitable for supporting utility distribution lines, cable TV, and fiber optic cables.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: SGS75
• Country of Origin: MEX

Technical Specifications

• Type: Standard Support Grip
• Brand: Eaton
• Color: Silver
• Finish: Metallic
• Material: Tin-Coated Bronze
• Product Name: Eaton standard support grip
• Catalog Number: SGS75
• UPC: 040893647104
• Product Length/Depth: 0.897 in
• Product Width: 1.364 in
• Product Weight: 0.175 lb
• Certifications: CSA Certified
• Product Type: Standard support grip
• Special features: Closed Mesh Single Eye
• Cord diameter: 0.75-0.99 in
• Bale length: 8 in
• Break strength: 1300 lbs
• Mesh length: 14 in
• Eye Type: Single
• Cable Diameter: 0.75" ~ 0.99" (19.0mm ~ 25.1mm)
• Mesh Type: Closed
