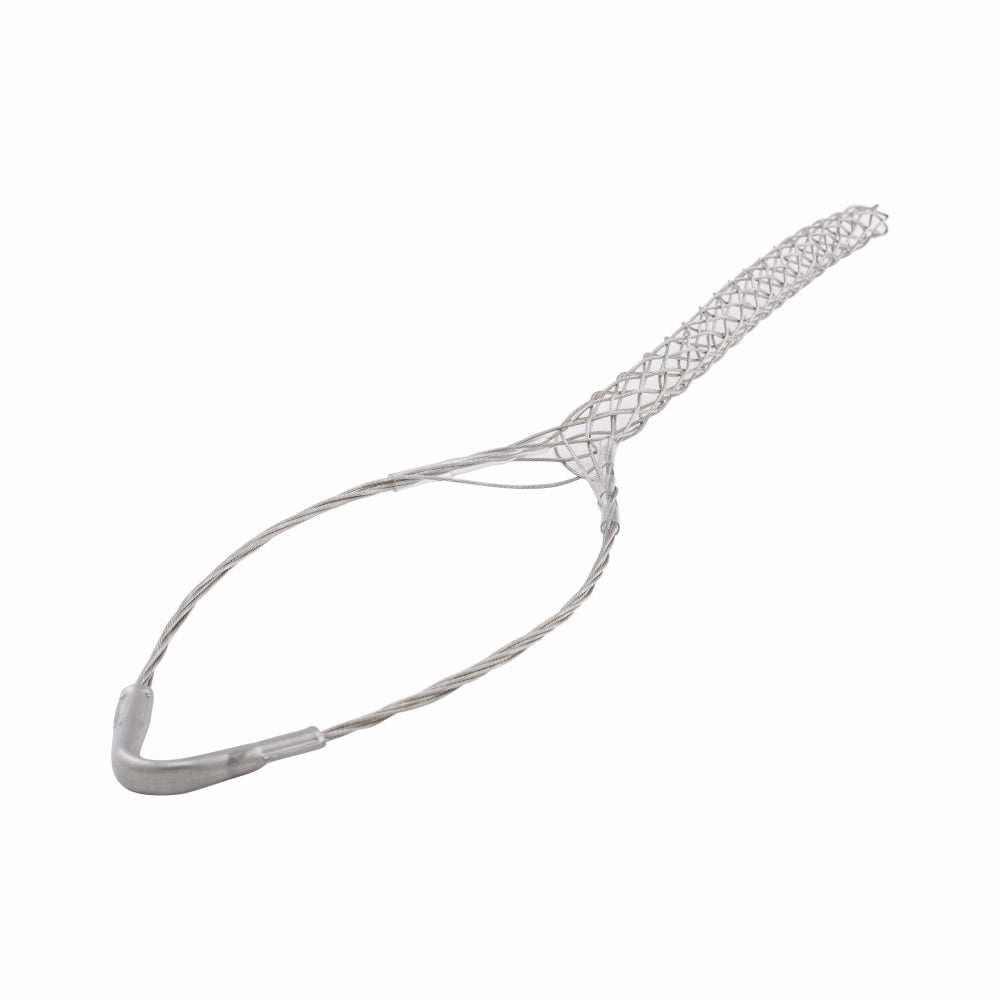

Eaton SGS63 Standard Support Grip 0.62 to 0.74 in

Product Description

The EATON SGS63 is a standard duty single eye support grip designed for electrical, fiber optic cable, and industrial applications. It features a bronze, tin-coated wire mesh that provides corrosion resistance and absorbs strain from vibration, expansion, and flexing. This support grip is suitable for cable sizes ranging from 0.62 to 0.74 inches.

• 960 lb breaking strength
• 11 in mesh length
• 8 in L bale

Product Highlights

EATON's SGS63 support grip is built for industrial applications, providing strain relief and cable support. It is ideal for vertical cable runs and applications where the cable bends.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: SGS63
• Country of Origin: US

Technical Specifications

• Application: For wire mesh grip, electrical and fiber optic cable and industrial applications
• Breaking Strength: 960 lb
• Cable Size: 0.62 to 0.74 in
• Finish: Tin Coated
• Manufacturer Part Number: SGS63
• Material: Bronze
• Mesh Length: 11 in
• Standards/Approvals: CSA Certified|NAFTA Compliant
• Type: Standard Duty Single Eye
• Product Type: Standard Support Grip
• Product Name: Eaton standard support grip
• Catalog Number: SGS63
• UPC: 040893647098
• Product Length/Depth: 0.764 in
• Product Height: 20.5 in
• Product Width: 1.912 in
• Certifications: CSA Certified
• Special features: Closed Mesh Single Eye
• Cord diameter: 0.62-0.74 in
• Bale length: 8 in
• Break strength: 960 lbs
• Product Series: Standard Duty
• Family Series: Eaton Grips, Standard Duty Series
• Description: Eaton standard support grip, Closed Mesh Single Eye, 8quot; bale, 960 lbs break, 0.62-0.74quot; cord diameter, 11quot; mesh length, Tin-Coated Bronze
• Mounting: Closed
• Eye Style: Single
• Approx. Break Strength: 960 lbs
• Approvals: CSA
