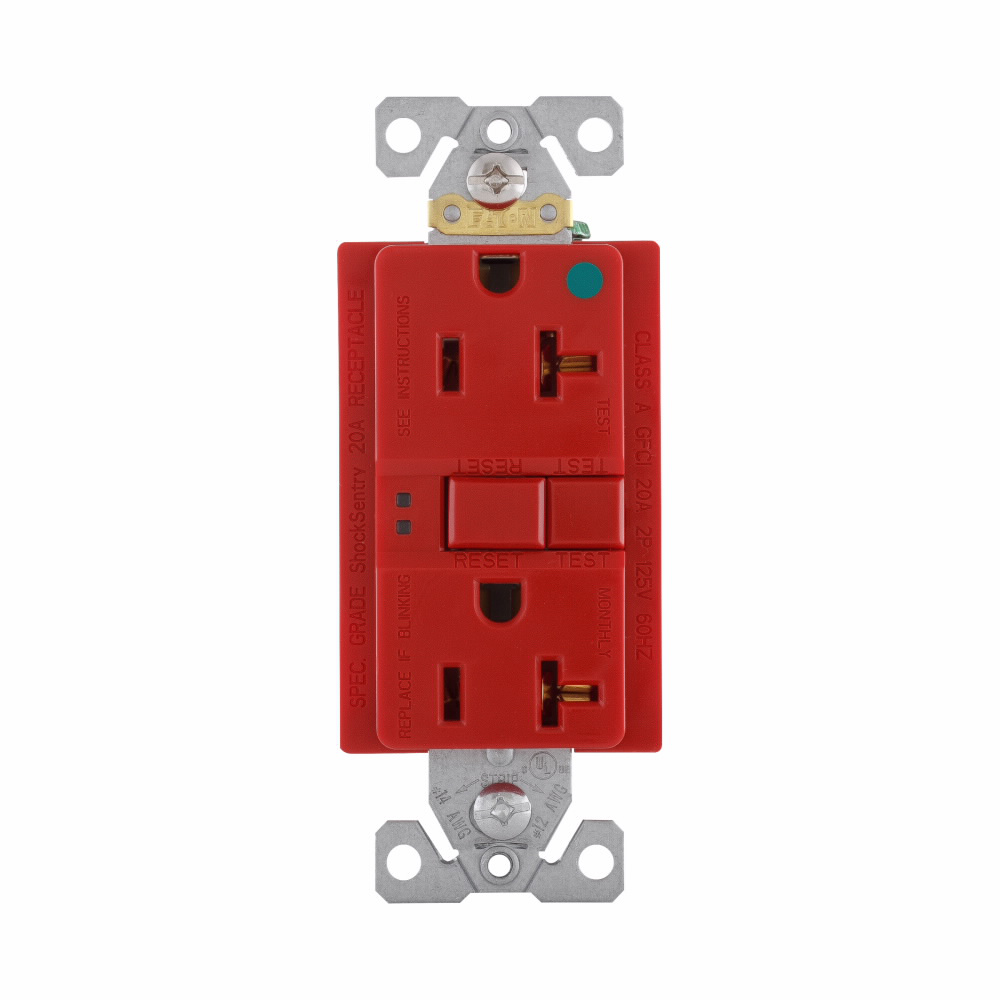

Eaton SGFH20RD EWD SGFH20RD GFCI HG ST Duplex 20A Replacement MPN

Product Description

The Eaton SGFH20RD is a duplex ground fault circuit interrupter (GFCI) receptacle designed for safety in residential and commercial applications. This model features a self-test mechanism to ensure proper functionality. It supports up to twenty amps and operates at one hundred twenty-five volts. The red color signifies its hospital-grade designation, making it suitable for healthcare environments.

• Self-test function ensures it is working properly.
• Compatible with 14 to 10 AWG wire sizes.
• Constructed from nylon and brass for durability.

Product Highlights

This GFCI receptacle provides protection against ground faults. It helps prevent electrical shock by cutting off power in unsafe situations. Its robust design meets strict safety standards.

Product Information

Standard Information

• Brand: Eaton
• MPN: SGFH20RD

Technical Specifications

• Amperage Rating: 20 A
• Application: Commercial, Institutional Buildings, Structures, Industrial and Other Applications
• Color: Red
• Dimensions: 1.98 in L x 2.83 in W x 4.68 in H
• Frequency Rating: 60 Hz
• Grade: Hospital
• Includes: Standard Unbreakable Wallplate
• Material: Brass/Nylon
• NEMA Rating: NEMA 5-20R
• Number of Poles: 2
• Number of Wires: 3
• Standards/Approvals: cULus Listed | NOM 426 | UL File No. 498 | UL 94V-2 Flammability Rating | UL File No. E60120
• Temperature Rating: -31 to 150.8 deg F
• Terminal Type: Back/Side Wire
• Type: Duplex Self-Test
• Voltage Rating: 125 VAC
