Product Description

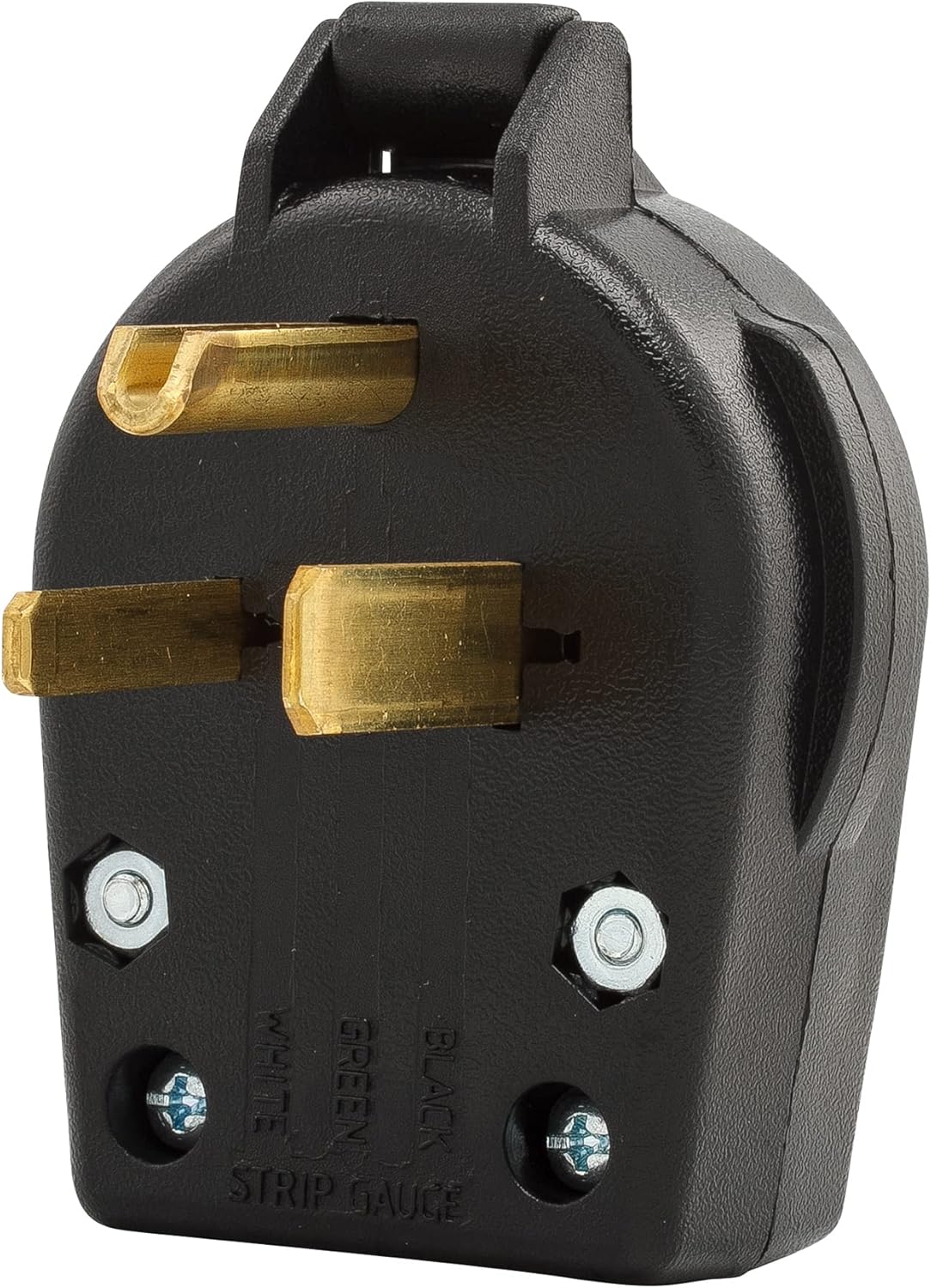

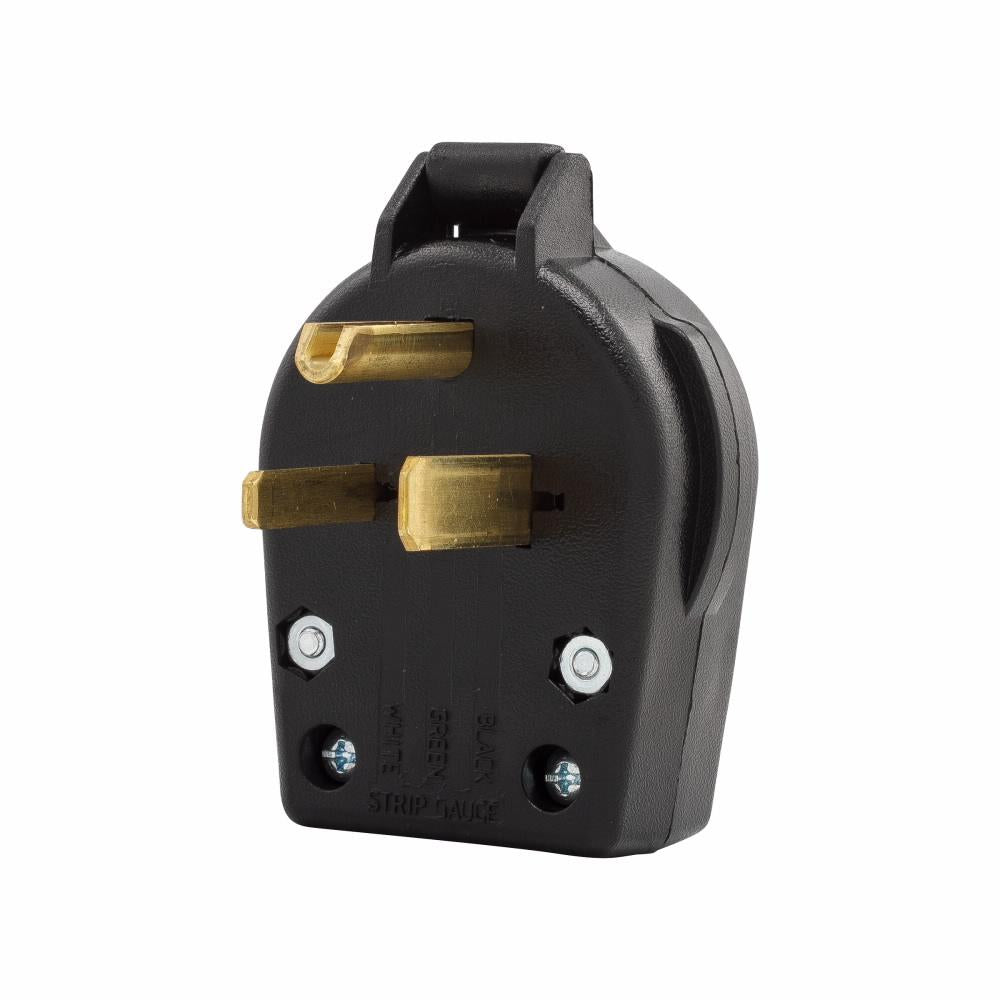

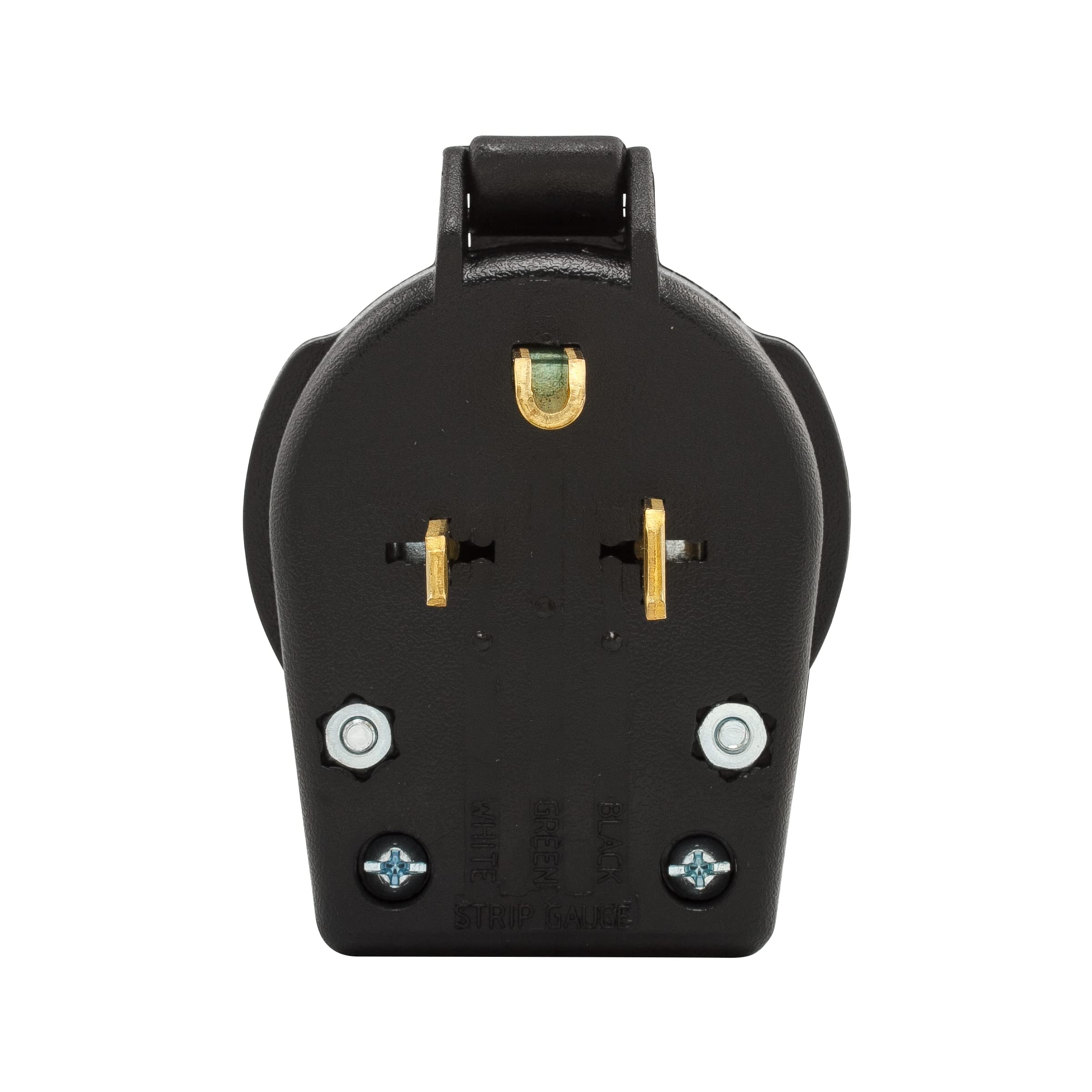

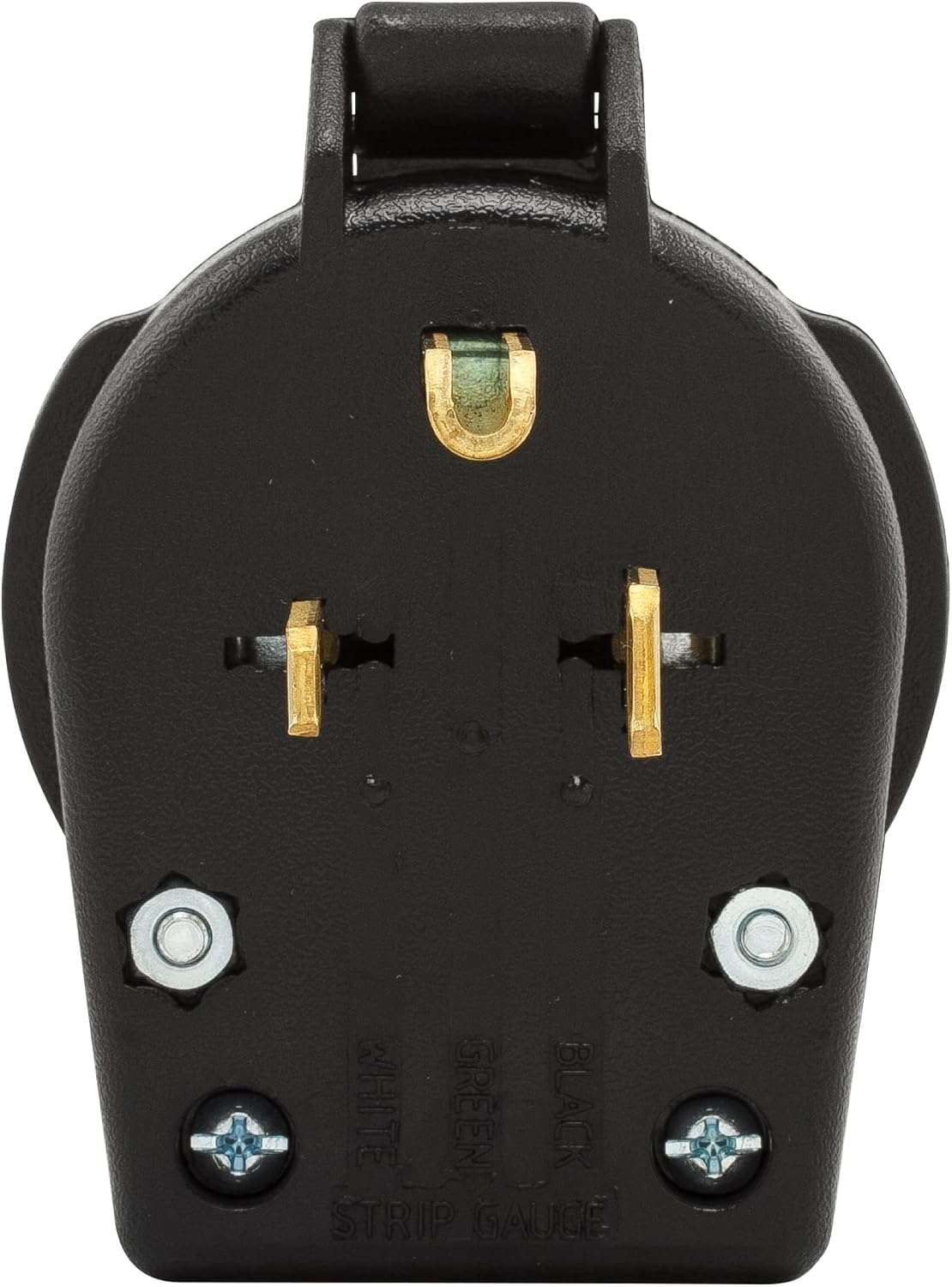

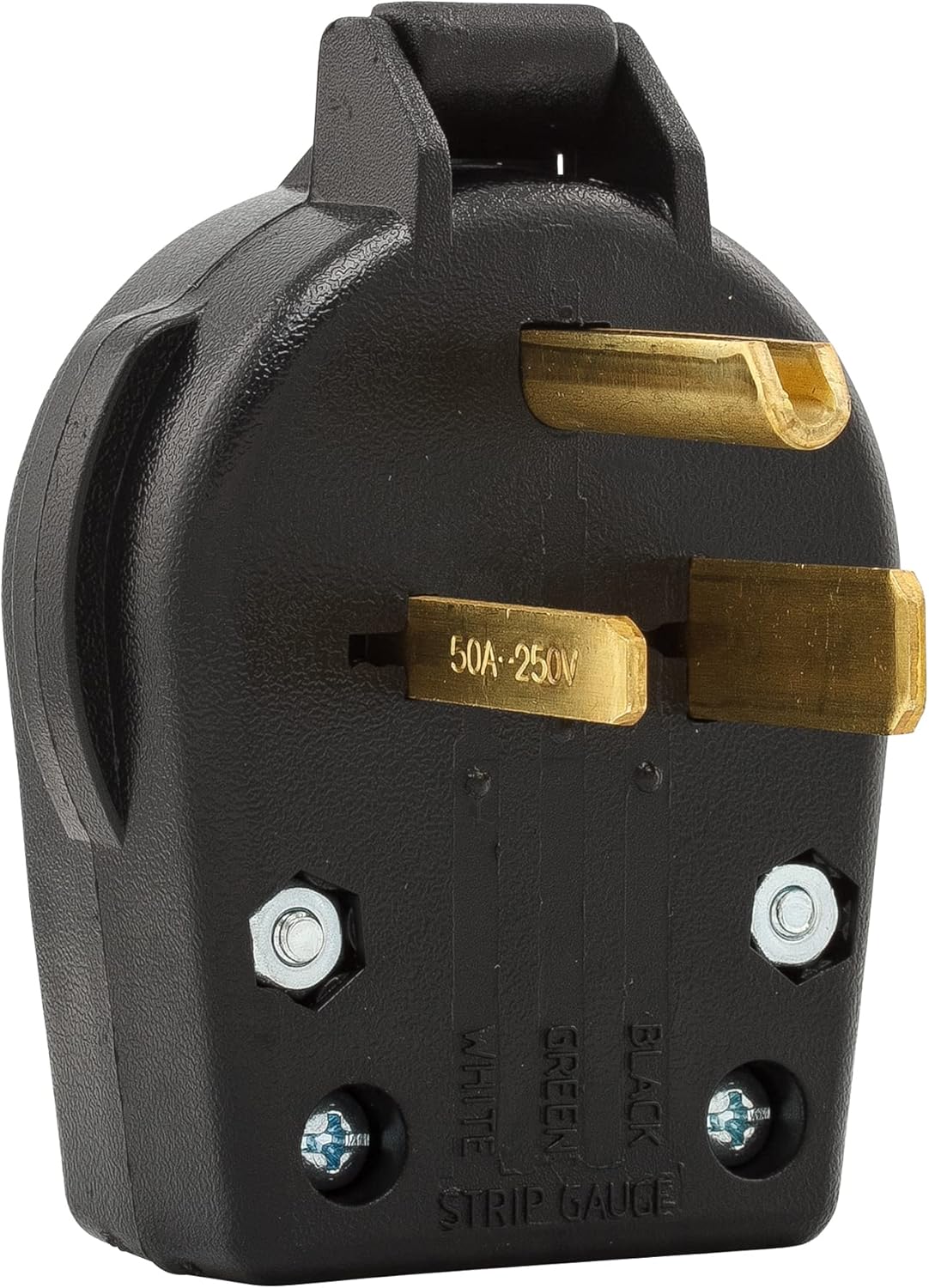

The Eaton S42-SP Arrow Hart heavy-duty universal NEMA power plug is designed for high-amperage industrial or commercial power connectivity. This angled universal straight blade plug supports 30/50A at 250V. Constructed from abuse-resistant thermoplastic, it ensures reliable performance and increased productivity. It is a 3-pole, 3-wire grounding plug.
- Constructed from abuse-resistant thermoplastic
- Terminals feature pressure plates to protect wires
- Universal plug includes blades for both 30 A and 50 A configurations
Product Highlights
The Eaton S42-SP is a heavy-duty NEMA power plug designed for commercial and industrial applications. It features a durable thermoplastic construction and supports multiple amperage configurations.
Product Information
Standard Information
-
Brand: EATON
-
Manufacturer Part Number: S42-SP
-
Country of Origin: MEX
Technical Specifications
-
Color: Black
-
Finish: Black
-
Voltage: 250 Volts
-
Amperage: 50 Amps
-
Number of Wires: 3
-
Power Source: Wired Electric
-
Connector Type: Plug in
-
Number Of Poles: 3
-
Amperage Capacity: 50 Amps
-
Specification Met: NEMA
-
Batteries Included?: No
-
Batteries Required?: No
-
Material: Thermoplastic
-
Amperage Rating: 30/50 A
-
Temperature Rating: -20 to 75 deg C
-
Grade: Commercial
-
NEMA Rating: NEMA 6-30P/6-50P
-
Voltage Rating: 250 VAC
-
AWG: NO.10-6
-
Wiring: Back wire
-
Plug Type: 6-30P; 6-50P
-
Connection: Screw
-
Contact Material: Brass
-
Design Type: Angled Straight Blade
-
Product Height: 3.37 in
-
Product Width: 2.87 in
-
Product Length/Depth: 1.38 in
-
Certifications: UL Listed
-
Product Type: Heavy-duty universal NEMA power plug
-
Device type: Plug
-
Type: Angled plug
-
Style type: Power, Universal angled body
-
Face/body material: PVC
-
Torque rating: 20 lbf-inch
-
NEMA Configuration: 6-30P, 6-50P
-
Volts AC: 120, 250
