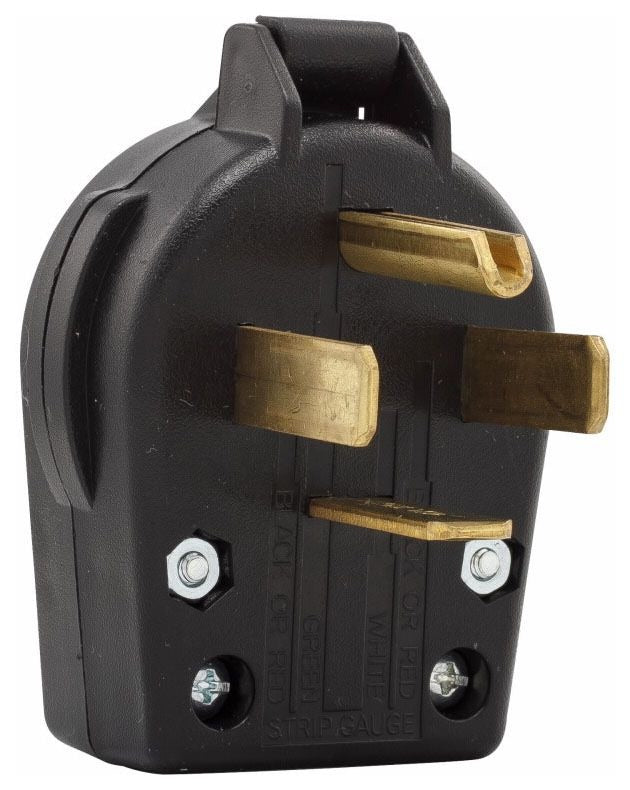

Eaton S20-SP Angle Plug 60 A 125/250 VAC (Angle)

Product Description

The Eaton S20-SP is an angle configuration NEMA 14-60P power plug rated 60 A at 125/250 VAC for commercial applications. It provides a 3-pole, 4-wire grounded connection with brass contacts housed in rugged high-strength thermoplastic. The plug accepts 10 to 6 AWG cord sizes, is UL 498 listed for Canada and the US, and is RoHS compliant. Overall dimensions are 2.87 in L x 1.38 in W x 3.37 in H.

• NEMA 14-60P angle plug rated 60 A, 125/250 VAC with 3 poles and 4 wires (grounding).
• Rugged high-strength thermoplastic housing with brass contact material; accepts 10 to 6 AWG cord sizes.
• Certifications: UL 498 (Canada and US) and RoHS compliant; overall dimensions 2.87 in L x 1.38 in W x 3.37 in H.

Product Highlights

Angle NEMA 14-60P 60 A plug with thermoplastic housing and brass contacts; accepts 10–6 AWG; UL 498 listed; RoHS compliant.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: S20-SP
• Country of Origin: Mexico
