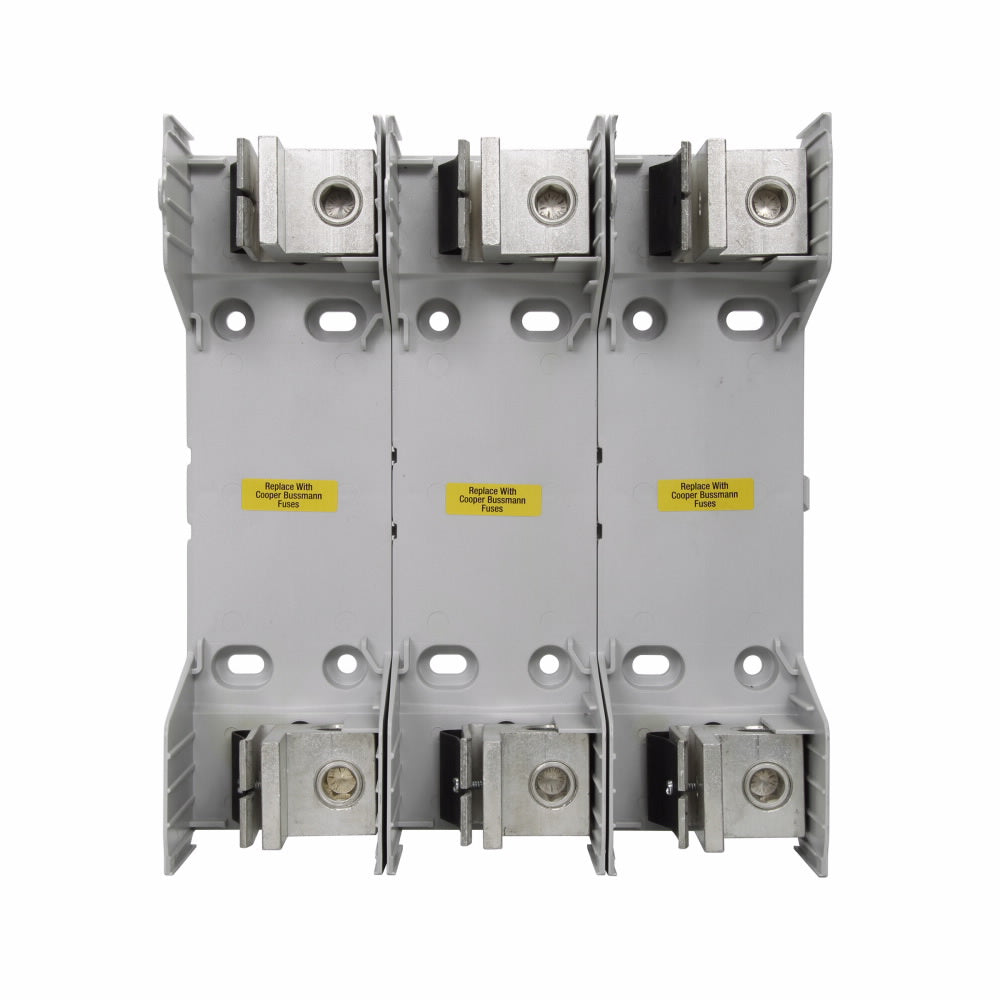

Eaton RM60400-3CR BUS FUSE HOLDER 600V 225 to 400 A

Product Description

Eaton RM60400-3CR is a bus fuse holder designed for modular applications. It operates at a voltage of six hundred volts and supports an amperage range of two hundred twenty-five to four hundred amps. This fuse holder features a knife blade end connection and supports three poles for efficient power management.

• Modular design allows for easy assembly.
• UL certified for safety standards.
• Includes multiple mounting options for flexibility.

Product Highlights

The Eaton RM60400-3CR bus fuse holder is suitable for use in electrical assemblies, panels, and OEM applications. It accommodates knife blade cartridge fuses and is designed to function within temperatures ranging from negative forty to positive one hundred twenty degrees Celsius.

Product Information

Standard Information

• Manufacturer: Eaton
• Voltage Rating: 600 V

Technical Specifications

• Amperage Rating: 225 to 400 A
• Connection Type: Knife Blade End
• Number of Poles: 3
• Material: Thermoplastic
• Dimensions: 8.7 in L x 10.4 in W x 4.9 in H
• Temperature Rating: -40 to 120 deg C
• Standards/Approvals: CSA Certified, cULus File No.E14853, RoHS Compliant
