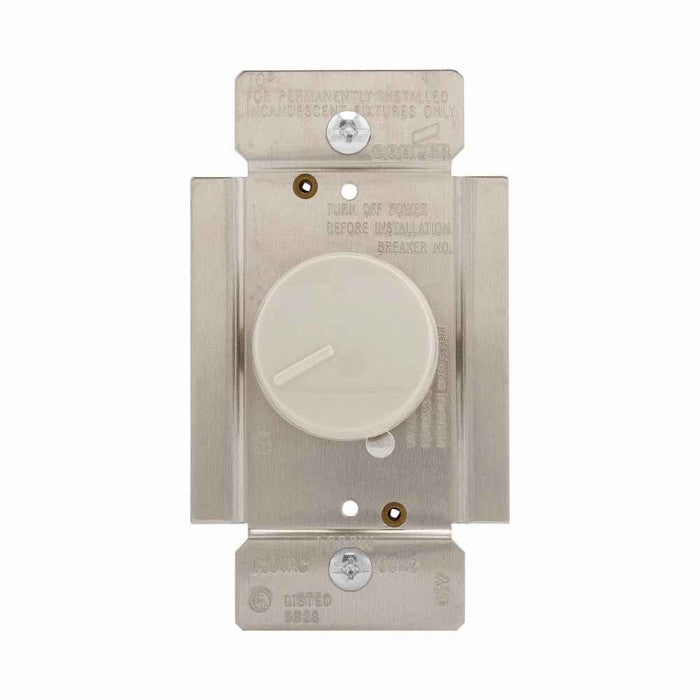

EATON RI101-LA Rotary Dimmer 1000W Light Almond

Product Description

The EATON RI101-LA is a rotary dimmer for single-pole use. This dimmer operates with incandescent and halogen loads at 120V and 60Hz. It incorporates power failure memory and features a non-preset configuration. The product includes wire lead connections and is designed for indoor applications. The casing is constructed from polycarbonate with a light almond finish.

• Rotary switch with non-preset operation.
• Compatible with incandescent and halogen loads.
• Equipped with power failure memory feature.

Product Highlights

Ideal for controlling lighting levels in homes and offices.

Product Information

Standard Information

• Brand: Eaton
• MPN: RI101-LA

Technical Specifications

• Voltage Rating: 120 V
• Frequency Rating: 60 Hz
• Wattage: 1000 W
• Amperage Rating: 5 A
• Switch Type: Single-pole
• Operating Temperature: 0 to 40 °C
• Environmental Conditions: Indoor
• Mounting Type: Flush Mount
• Material: Polycarbonate
• Wiring Method: Wire lead
• Allowable Wire Size: #16 AWG
• Closure Type: Maintained
• Load Type: INC HAL
• Special Features: Power failure memory, non-preset
• Dimensions: 2.75 inches x 2.75 inches x 4.75 inches
• Size: 1.7 inches wide x 1.3 inches deep
• Operation Type: 1-POLE
• Certifications: UL (Canada and US), UL 1472, CSA C22.2, NOM 426, cUL/UL Listed
