Product Description

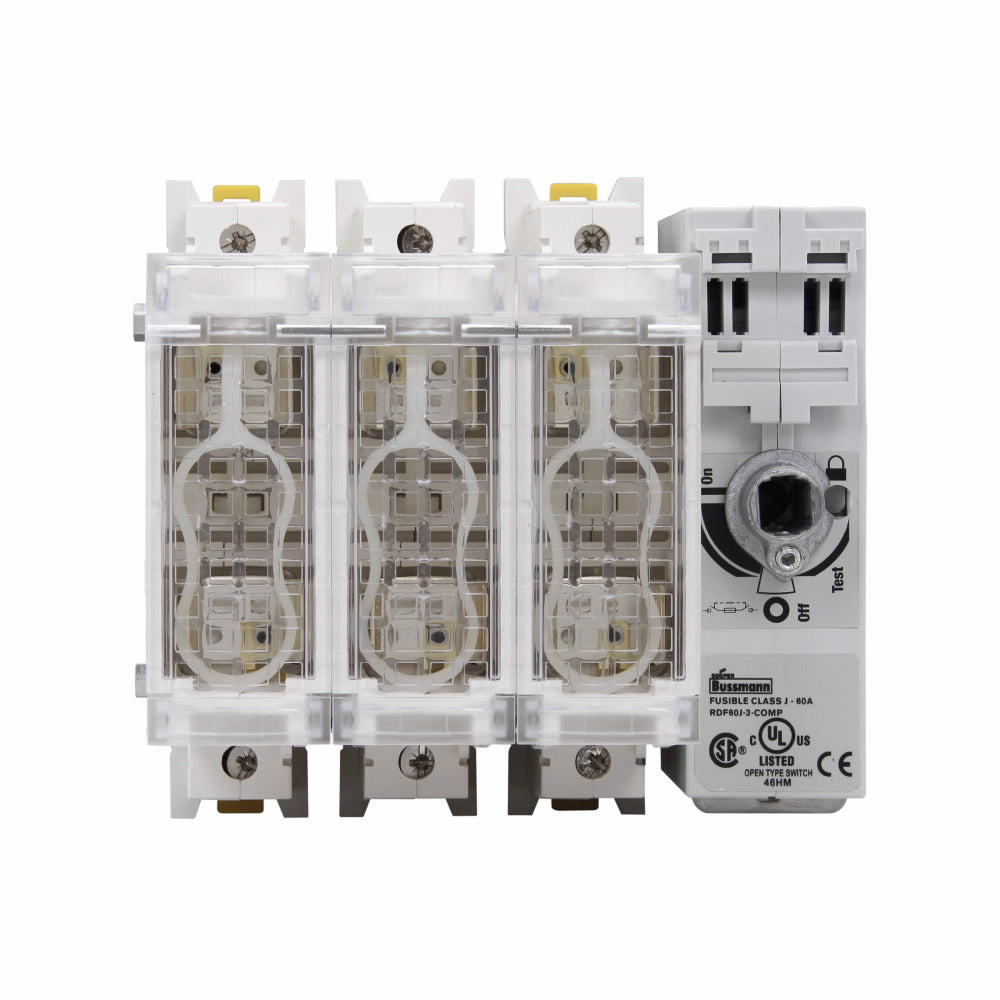

The Eaton RDF60J-3-COMP is a bus switch designed for safe and effective power management. This compact Class J fused switch operates at six hundred volts alternating current and two hundred fifty volts direct current with a maximum current rating of sixty amps.
- Handles various horsepower requirements including fifteen horsepower at two hundred twenty or two hundred forty volts alternating current.
- Suitable for multiple applications including main disconnect and branch circuit protection.
- Offers a comprehensive short circuit current rating of up to one hundred kA.
Product Highlights
This switch provides a reliable solution for controlling power in industrial settings.
Product Information
Standard Information
-
Manufacturer: Eaton
-
Manufacturer Part Number: RDF60J-3-COMP
Technical Specifications
-
Amperage Rating: 60 A
-
Voltage Rating: 600 VAC, 250 VDC
-
Dimensions: 5.67 in L x 4.73 in W x 5.35 in H
-
Horsepower: 15 hp at 220/240 VAC, 30 hp at 440/480 VAC, 50 hp at 600 VAC, 5 hp at 125 VDC, 10 hp at 250 VDC
-
Number of Poles: 3
-
Temperature Rating: -20 to 70 deg C
-
Contact Form: 1NO-1NC
-
Mounting Type: Flange
-
Short Circuit Current Rating: 100 kA
