Eaton R9C3030U Rotary Disconnect Switch 30 A

Product Description

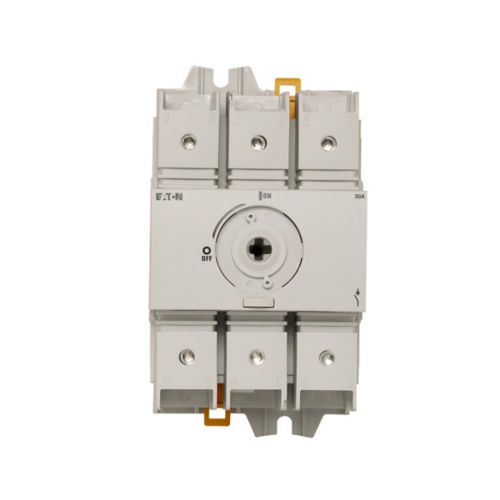

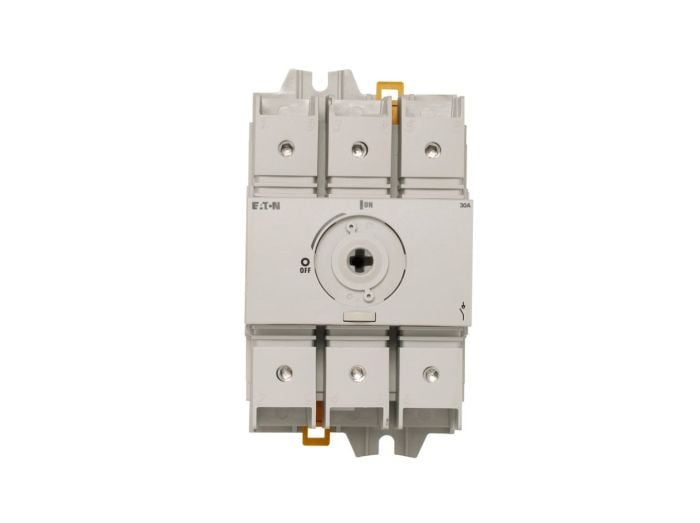

The Eaton R9C3030U rotary disconnect switch is a three-pole, non-fusible switch body from the R9 Series, designed for machine control circuits up to 600 VAC. It ensures load making or breaking and safety isolation for low voltage electrical circuits. Compact with a C frame, it measures 2.52 in L x 3.07 in W x 5.62 in H.

• Direct or external operation handle (padlockable in on position)
• Double breaking per phase
• Load break functionality

Product Highlights

The Eaton R9C3030U rotary disconnect switch offers a compact design and reliable performance for electrical isolation and control.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: R9C3030U
• Country of Origin: China

Technical Specifications

• Product Name: Eaton rotary disconnect switch
• Catalog Number: R9C3030U
• UPC: 786685402918
• Product Length/Depth: 2.52 in
• Product Height: 5.62 in
• Product Width: 3.07 in
• Certifications: CSA Certified UL 98 IEC Rated EN Listed
• Product Type: Rotary disconnect switch
• Number of poles: 3
• Series: R9 Series
• Amperage Rating: 30 A
• Voltage rating: 600 V
• Product Category: Switch Body
• Phase: 3
• UNSPSC: 39122217
• Approval: UL 98, CSA C22.2, CE
• Application: Elec Assemblies, Panels & EOEM - Electrical Assemblies, Panels and EOEMs
• Mounting Type: DIN Rail Mount
• Terminal Type: Line/Load
• Current Rating: 30 A
• Number of Wires: 2
• Mounting: Base/DIN Rail
• Type: C-Frame Non-Fusible
• Dimensions: 2.52 in L x 3.07 in W x 5.62 in H
• Horsepower: 25 hp, 27 hp
• Actuator Type: Rotary Handle/Shaft
• Manufacturer Part Number: R9C3030U
• Manufacturer: Eaton - Cutler Hammer
• Family Series: Eaton Disconnect Switches, R9 Series
• Description: Eaton rotary disconnect switch, 30 A, Non-fusible, Three-pole, Switch body, R9 Series, 600 V, C frame
• Poles: 3
• AC Voltage: 600 VAC
• Fusible: No
• Approvals: CE, CSA, UL
• Current Type: AC
• Operator: Rotary Handle/Shaft
• Operator Included: Not Included
• Operator Position: External
• Fuse Provision: Non-Fusible
• Cont. Amps: 30A
• Terminals: Line-Load
• UNSPSC Code: 39120000
• Unit of Measure: EA
• Maximum Current: 30 A
• Special Features: Compact, Direct or External Operation Handle, Padlockable in on Position, Double Breaking Per Phase
• Voltage Rating: 600 V
• UPC Code: 786685402918
• Primary Type: Disconnect
• Rotary Switch: Rotary Switch
• Standards: UL 98
