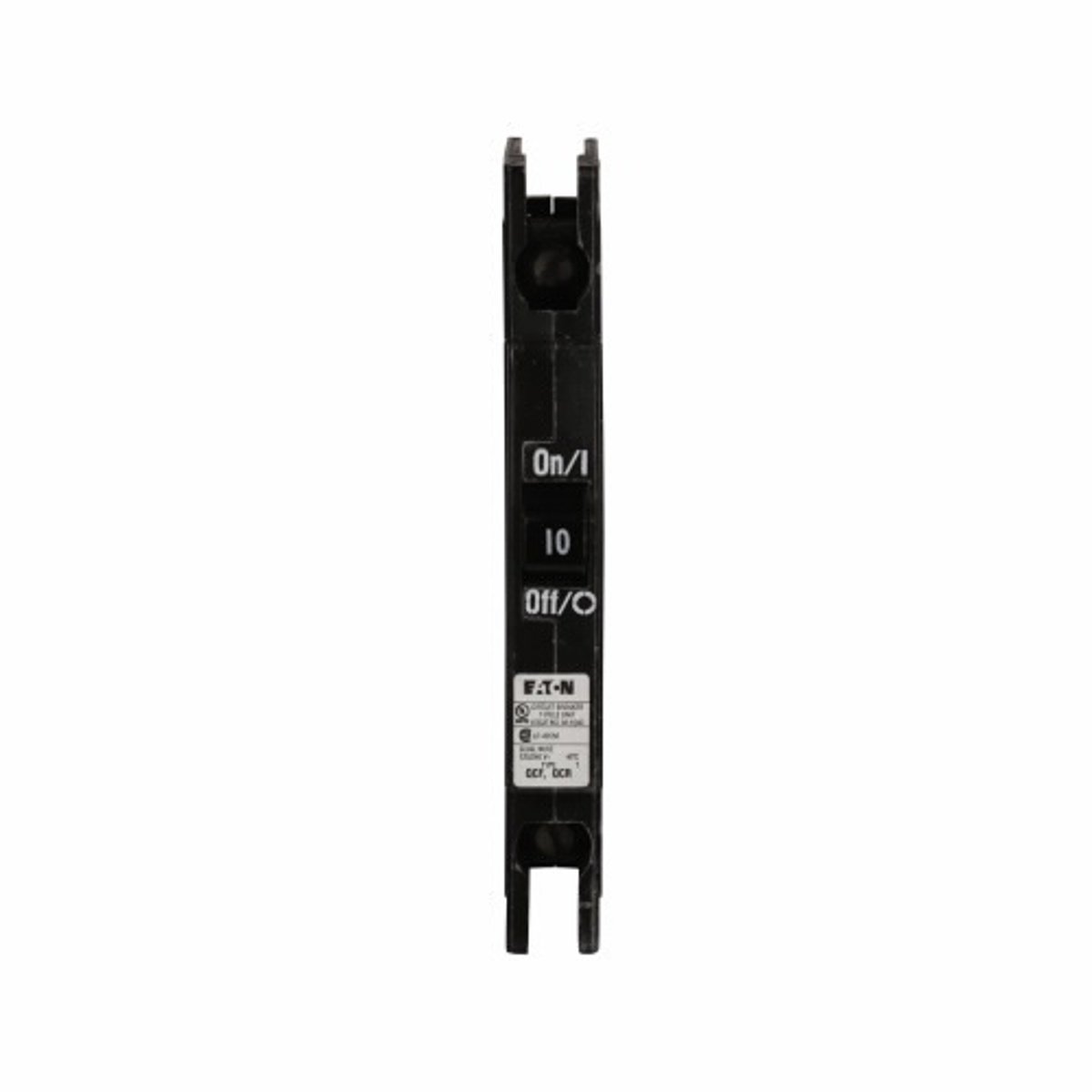

Eaton QCR1010T Miniature Circuit Breaker, 10 Amp, 1 Pole, 120/240V

Product Description

The Eaton QCR1010T is a miniature circuit breaker with a wide selection of UL ratings suitable for loadcenters, fuseboxes, or similar devices. Each pole provides steel frame calibration and arc chutes with 5 - 100A continuous in one-, two-, and three-pole designs. It is suitable for industrial applications.

• Ring or Spade Lug Terminals
• Cable-in/cable-out
• HACR Rated

Product Highlights

The Eaton QCR1010T circuit breaker is a 10 amp, single-pole unit with a 120/240V voltage rating and a 10 kAIC interrupt rating. It features ring or spade lug terminals and cable-in/cable-out connection.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: QCR1010T
• Country of Origin: Dominican Republic

Technical Specifications

• Catalog Number: QCR1010T
• Manufacturer: Eaton
• Brand: Eaton
• Amperage Rating: 10 A
• Application: Marine Vessels and Equipment - Marine Vessels and Equipment - Other|Other|Generation - Renewable Energy - Alternative Energy|Generation - Conventional Energy - Conventional Energy|Datacenters - IT Space: CI and Hyper Converged
• Connection: Cable-in/cable-out
• Interrupt Rating: 10 kAIC
• Number of Poles: 1
• Special Features: Ring or Spade Lug Terminals
• Standard: CSA Certified,UL Listed,HACR Rated
• UPC: 782114154496
• GTIN: 00782114154496
• Item Type: Thermal magnetic circuit breakers
• Trip Type: Thermal-magnetic
• Voltage Rating: 120/240 V
• Product Length/Depth: 5 in
• Product Height: 1.1 in
• Product Width: 3.3 in
• Compliances: HACR Rated
• Certifications: CSA Certified UL Listed
• Product Type: Thermal magnetic circuit breakers
• Circuit breaker type: QCR
• Mounting Method: Rear
• Terminals: Ring or spade lug
• Type: Industrial circuit breaker
• Number of Positions: 1
• Number of Gangs: 1
• Number of Throws: 1
• Maximum Amperage: 10
• Operation Method: On/Off
• Material: Nylon
• Suitable For: Interior
• Voltage: 240
• Model: QCR1010T
• Series: CB
• AC Voltage Rating: 240V AC
• DC Voltage Rating: 240V DC
• Max. AIR Rating: 10kA
• Terminal Connection: Ring Or Spade Lug
• Width: 4 in
• Depth: 5 in
• Height: 2 in
• Frame Size: QCR
• Item: Miniature Circuit Breaker
• Breaker Amperage Rating: 10 Amp
• Breaker Number of Poles: Single Pole
• Breaker Voltage Rating: 240 VAC
• Component: Thermal Magnetic Circuit Breaker
• Breaker Overcurrent Protection Rating: 10 Ka
• Actuator Type: Toggle
• Current Rating: 10 A
• Mounting Type: DIN Rail Mount
