Eaton PJ82V Wallplate 2G Duplex Poly

Product Description

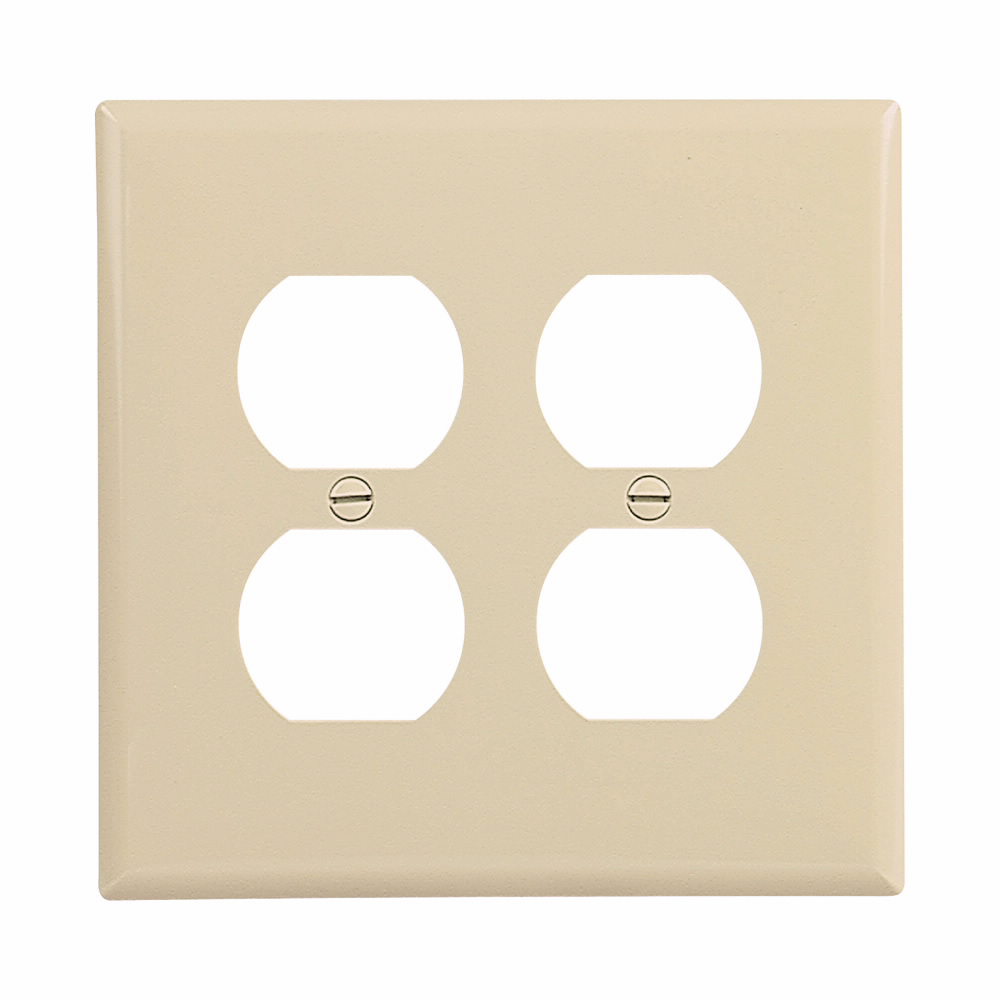

The Eaton PJ82V is a duplex receptacle wallplate made of polycarbonate material. This mid-size, two-gang wallplate is designed for commercial applications. It features a screw-catch design for easy installation and a high-gloss finish that resists soil. Matching mounting screws are included.

• Midway Size
• 2 Gangs
• Polycarbonate/Thermoplastic

Product Highlights

Durable polycarbonate construction reduces breakage. The screw-catch feature simplifies installation. High gloss finish resists dirt.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: PJ82V
• Country of Origin: CHN

Technical Specifications

• Type: Mid Size, Specification Grade
• Brand: Eaton
• Width: 4.94 in
• Height: 4.87 Inch
• Material: Polycarbonate
• Sub Brand: Arrow Hart
• Thickness: 0.08 in
• Applications: For Commercial
• Number of Gangs: 2 Gang
• Temperature Rating: -40 to 70 degrees C
• MPN: PJ82V
• Configuration: Duplex Receptacle
• Designated Size: Mid
• Finish: High Gloss
• RoHS Compliant: Yes
• Flammability Rating: 5 Volt Amp
• Includes: Matching Mounting Screw
• Applicable Standard: UL (Canada and US), UL 514C, CSA C22.2
• Series: Pj82
• Gang: 2
• Listing: cul, UL
• Size: 4.87 in H x 4.94 in W
• Cutout: 1.13 in H x 1.34 in W Duplex Receptacle
• Number of Ports: 4
• Construction: Superior Impact Resistance
• Standard & Approvals: UL Listed to UL 514D File No. E33216, cUL, UL File E33216 Certified to C22.2 File No. 42.1, RoHS Compliant
• Application: Commercial, Industrial, Institutional and Other High-Traffic Areas
• UNSPSC: 39121704
• First Gang to Edge: 1-3/8 in
• Operating Temperature: -40 to 70 deg C
• Suitable for: Duplex Receptacle
• Mounting Type: Screw
