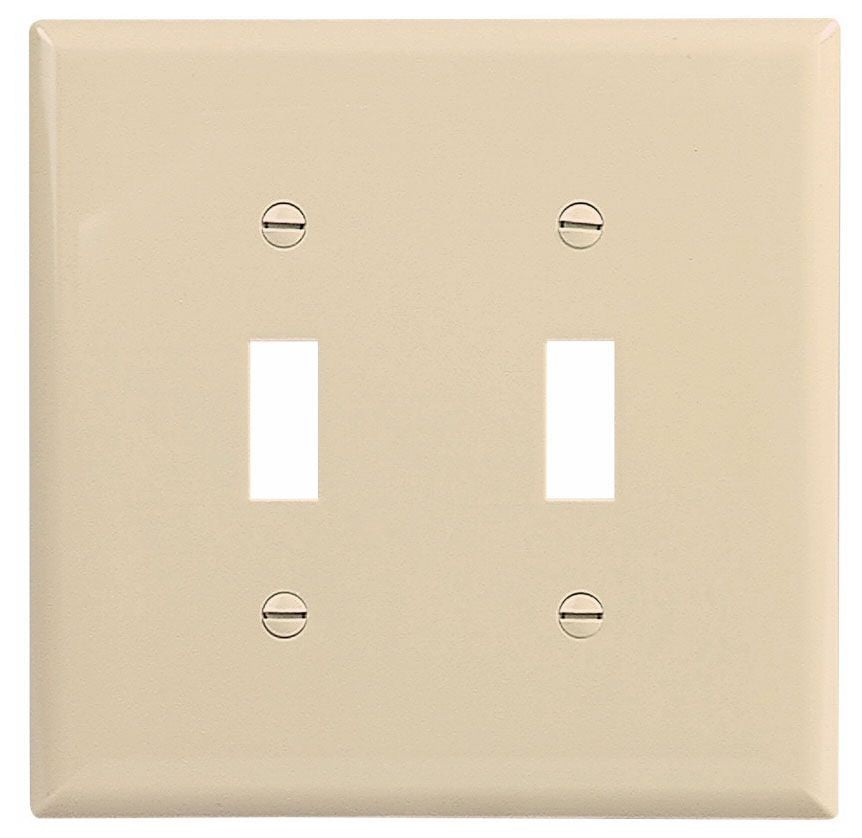

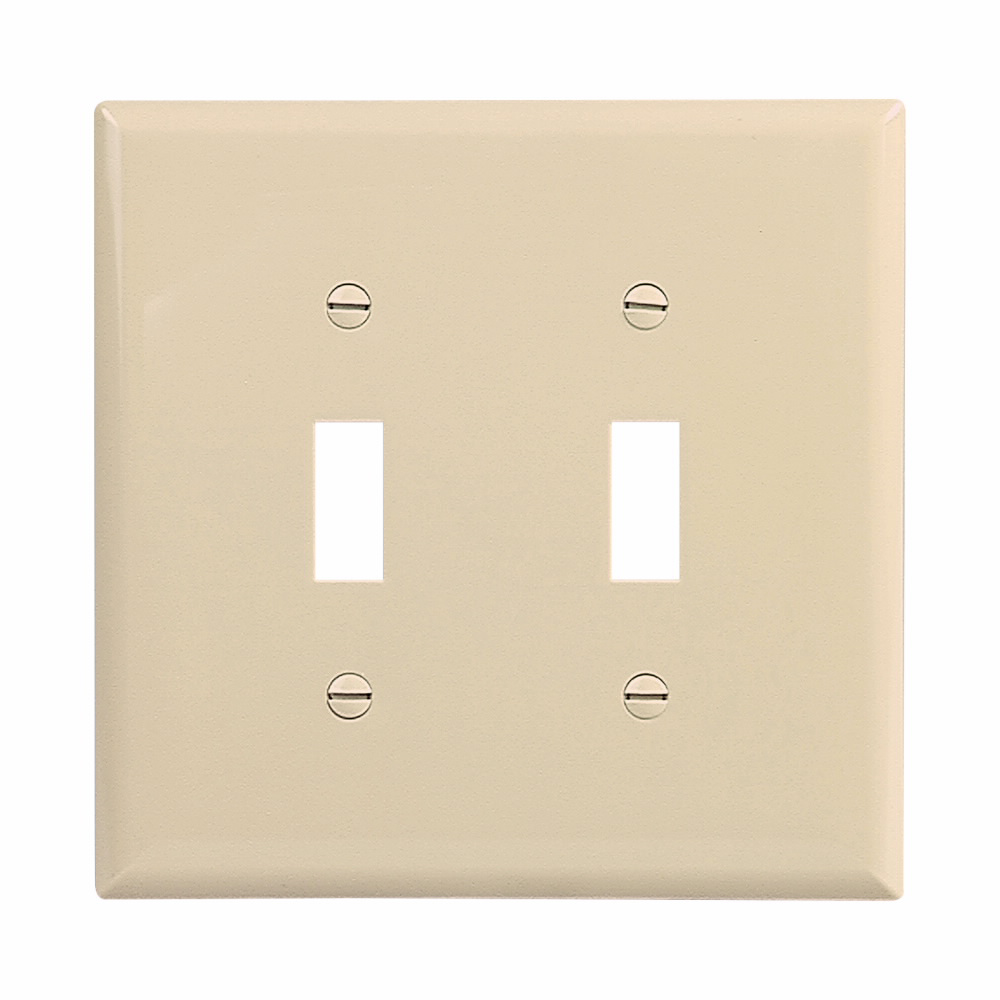

Eaton PJ2V Wallplate 2 Gang Toggle Poly M

Product Description

The EATON PJ2V wallplate is a mid-size, 2-gang toggle wallplate made from polycarbonate material. It features high structural rigidity, long-term form retention, and superior impact and abrasion resistance. Its rugged construction reduces installation costs due to less plate breakage and resists bowing for a smooth, flat installation. Matching mounting screws are provided.

• Made of virtually unbreakable polycarbonate
• Features an exclusive time-saving screw-catch
• High gloss finish is soil resistant

Product Highlights

This EATON polycarbonate wallplate offers durability and ease of installation for commercial applications. It is warp resistant and RoHS compliant.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: PJ2V
• Country of Origin: CHN

Technical Specifications

• Type: Mid Size, Specification Grade
• Brand: Eaton
• Width: 4.94 in
• Cutout: 0.40 In W X 0.93 In H
• Height: 6-1/4 Inch
• Material: Polycarbonate
• Sub Brand: Arrow Hart
• Thickness: 0.08 in
• Applications: For Commercial
• Construction: Warp Resistant
• Mounting Type: Screw
• Number of Gangs: 2 Gang
• Temperature Rating: -40 to 70 degrees C
• MPN: PJ2V
• Size: Midway
• Standard & Approvals: UL Listed to UL 514D File No. E33216, cUL, UL File E33216 Certified to C22.2 File No. 42.1, RoHS Compliant
• Application: Commercial, Industrial, Institutional and Other High-Traffic Areas
• Includes: Mounting Screws
• Compliances: RoHS Compliant
• Certifications: UL Listed, cULus Listed
• Product Type: Toggle wallplate
