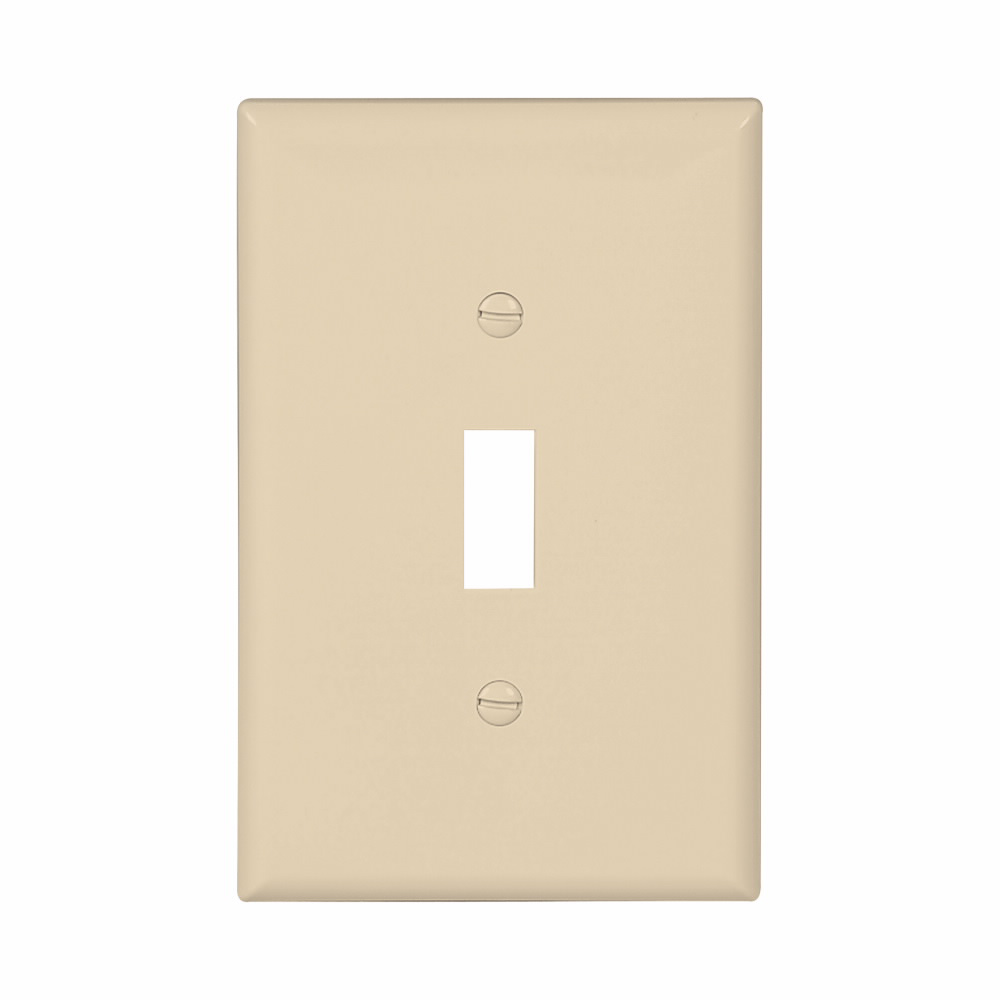

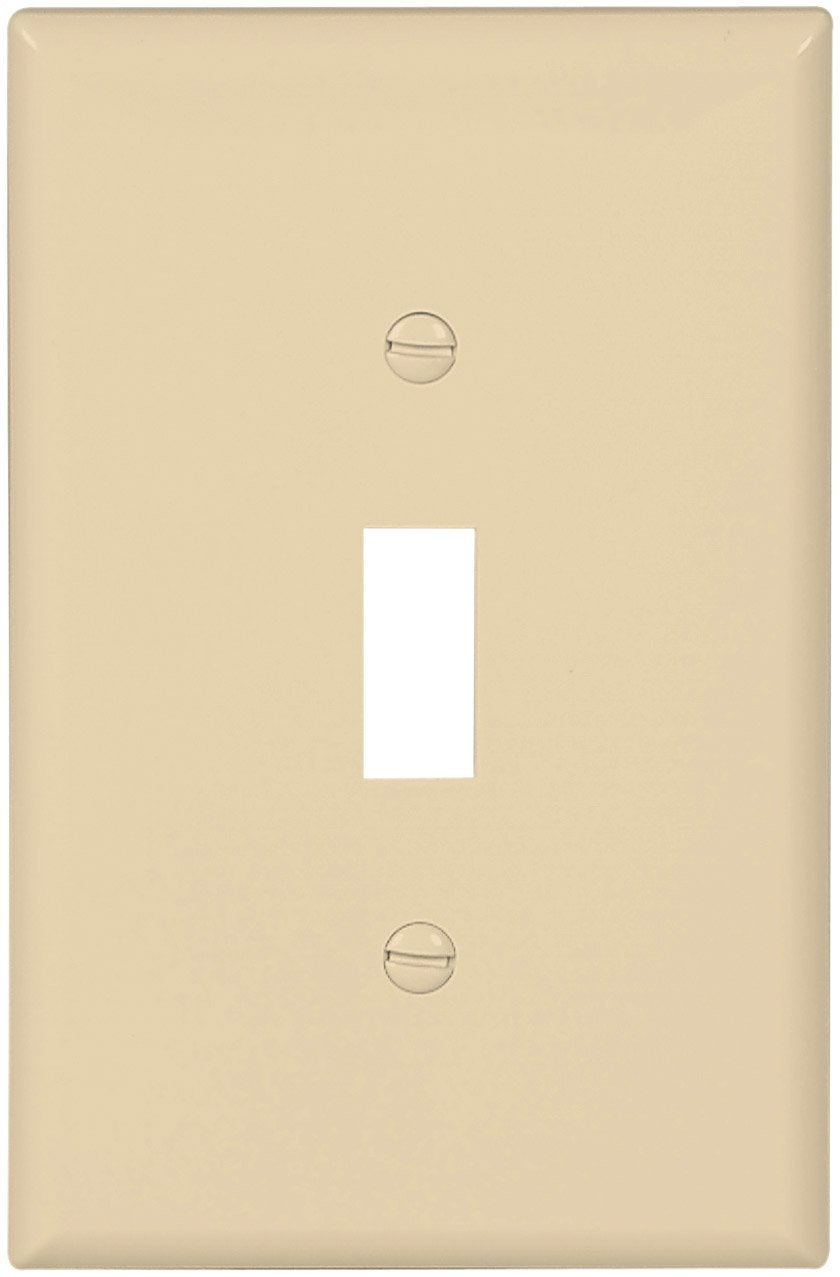

Eaton PJ1V Mid-Size Polycarbonate 1-Gang Toggle Switch Wallplate

Product Description

The Eaton PJ1V Mid-Size 1-Gang Toggle Switch Wallplate is constructed of polycarbonate. The wallplate has a single gang and is suitable for toggle switches. It features a screw-catch that holds mounting screws captive for quick installation. The polycarbonate wallplate has a warp resistant design.

• Constructed of polycarbonate
• Features a screw-catch for easy installation
• Warp resistant design

Product Highlights

This Eaton wallplate is durable and easy to install. Ideal for residential and commercial applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: PJ1V
• Country of Origin: CHN

Technical Specifications

• Material: Polycarbonate (PC)
• Switch Type: Toggle
• Configuration: Single
• Installation Type: Screw-In
• Item Model Number: PJ1V
• Part Number: PJ1V
• Type: Mid-Size
• Brand: Eaton
• Width: 3.12 in
• Height: 4.87 Inch
• Sub Brand: Arrow Hart
• Thickness: 0.078125 in
• Number of Gangs: 1 Gang
• Temperature Rating: -40 to 158 Deg F
• Gangs: 1
• Series: PJ
• Designated Size: Mid
• Finish: High Gloss
• RoHS Compliant: True
• Flammability Rating: 5 Volt Amp
• Applicable Standard: UL (Canada and US), UL 514C, CSA C22.2
• Manufacturer: EATON
• Model / MPN: PJ1V
• Number of Items: 1.0
• Number of Ports: 1
• Size: 4.87 in H x 3.12 in W
• Cutout: 0.93 in H x 0.4 in W Toggle
• Construction: Warp Resistant
• Application: Commercial, Industrial, Institutional and Other High-Traffic Areas
• Standard & Approvals: UL Listed to UL 514D File No. E33216, cUL, UL File E33216 Certified to C22.2 File No. 42.1, RoHS Compliant
• Product Length/Depth: 0.08 in
• Product Height: 4.87 in
• Product Width: 3.12 in
• Product Weight: 0.046 lb
• Compliances: RoHS Compliant
• Certifications: UL Listed, cULus Listed
• Product Type: Toggle wallplate
• Wallplate size: Mid-size
• Mounting Type: Flush
• Operating Temperature: -40 to 90 deg C
• Orientation Type: Vertical
• Suitable for: Toggle Switch
