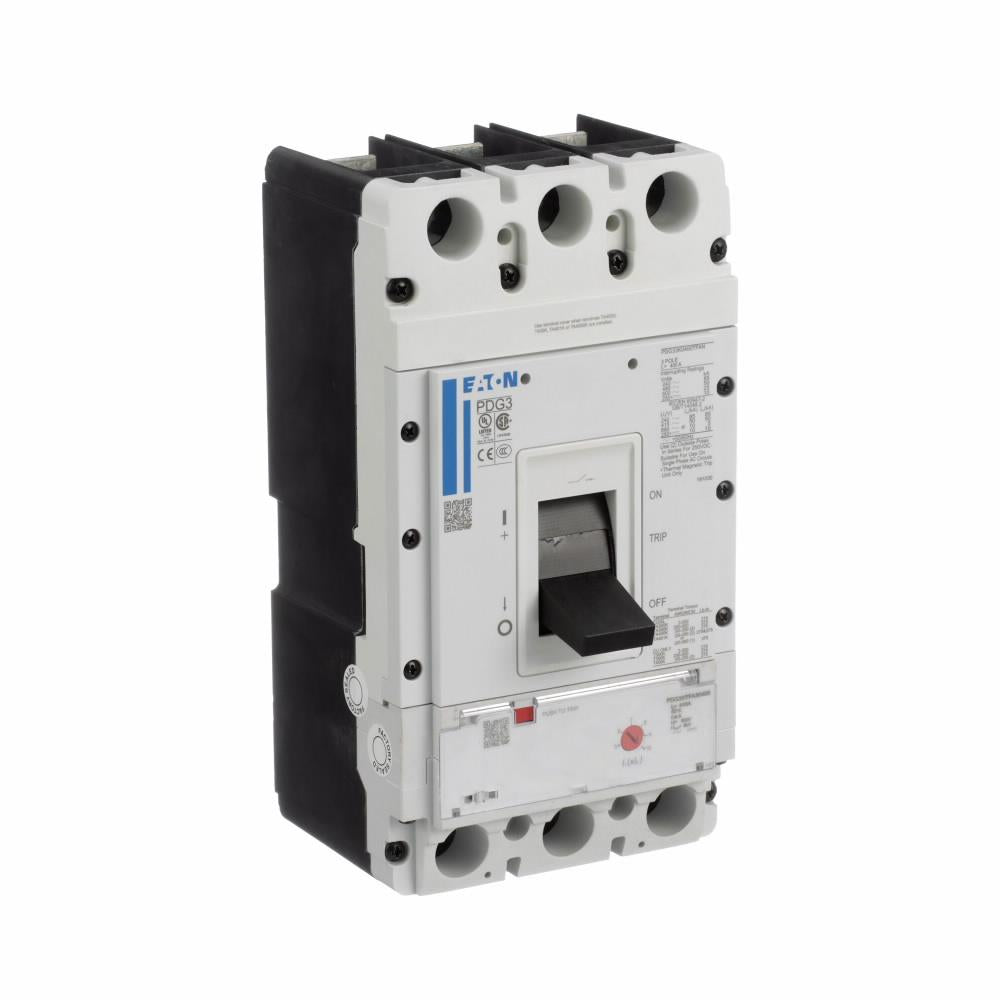

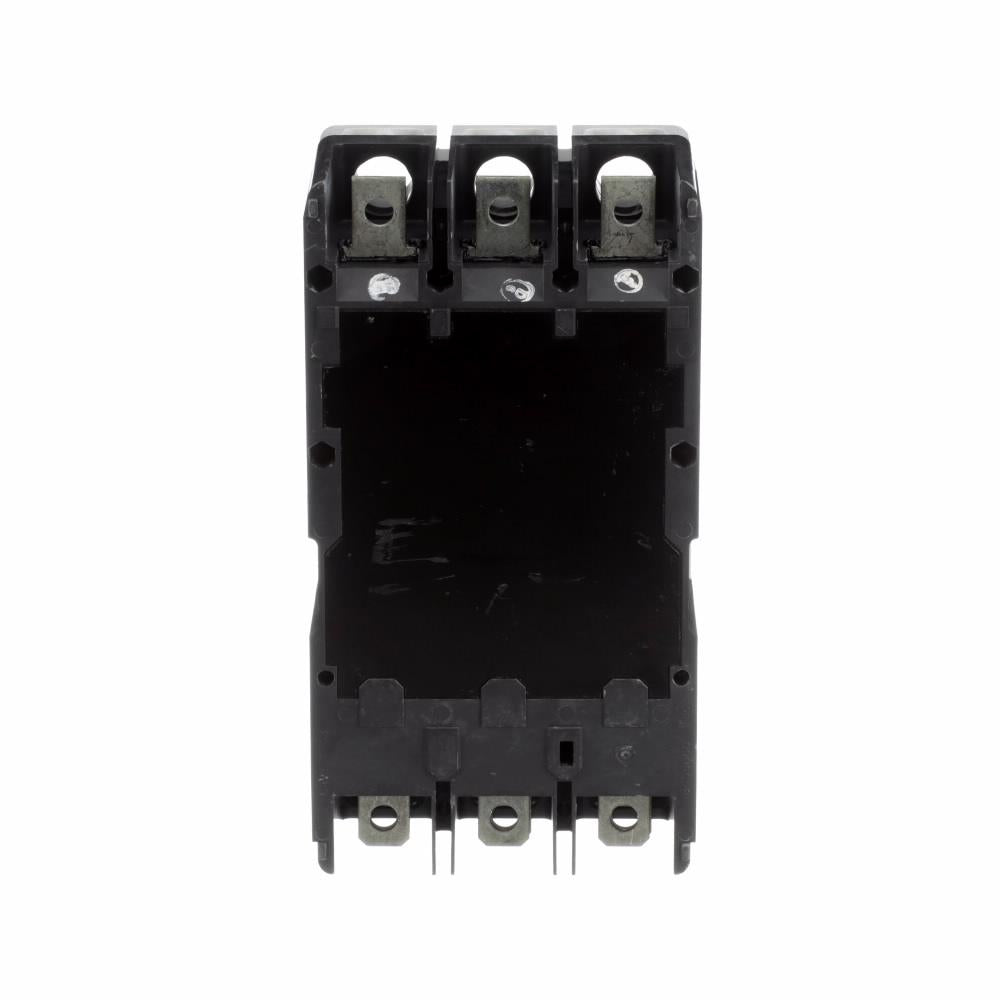

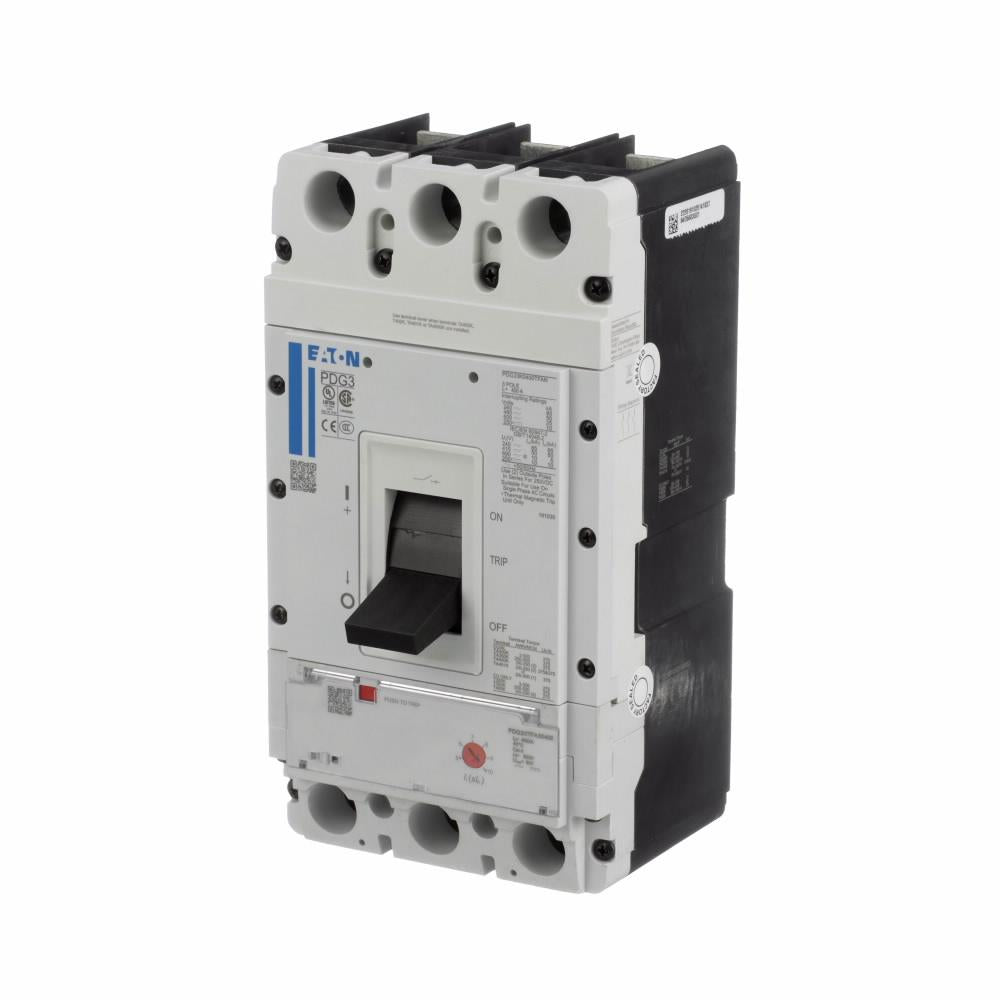

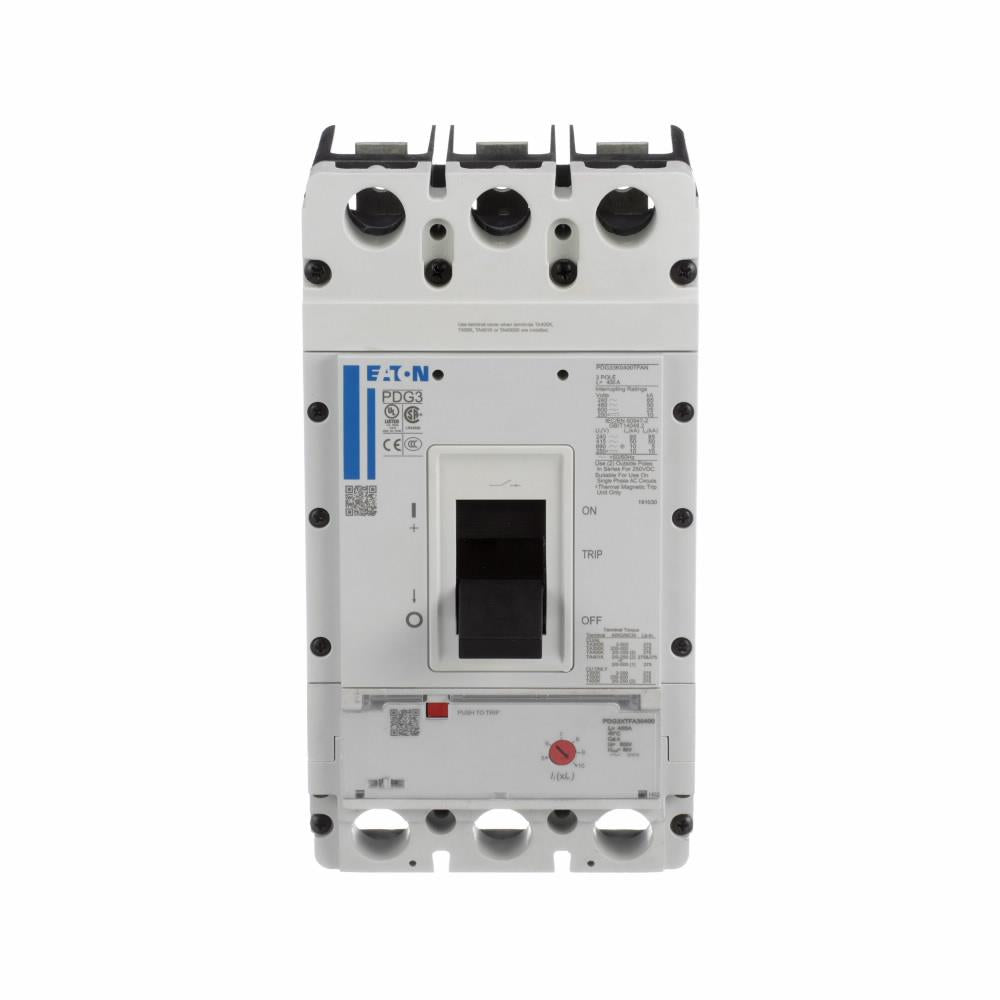

EATON PDD33F0200TFAL Power Defense 200 A Circuit Breaker

Product Description

The EATON PDD33F0200TFAL is a molded case circuit breaker designed for efficient performance in various applications. This model features a voltage rating of two hundred forty volts and offers three poles with a thirty-five kiloamp interrupt rating. It includes a thermomagnetic trip unit that enhances your facility's safety by minimizing the risk of arc flash events.

• Rated for two hundred A with a thirty-five kA interrupt rating.
• Includes a thermomagnetic trip unit for reliable performance.
• Compatible with wire sizes from three to three hundred fifty AWG.

Product Highlights

This breaker is suitable for use in distribution equipment, allowing for safe and effective management of electrical circuits. It meets various safety standards and is capable of handling different load types.

Product Information

Standard Information

• Brand: EATON
• MPN: PDD33F0200TFAL

Technical Specifications

• Amperage Rating: 200 A
• Voltage Rating: 240 VAC
• Interrupt Rating: 35 kA
• Frame Type: 3
• Trip Type: T-M (Fxd-Adj) TU
• Dimensions: 10.1 in H x 5.5 in W x 4.3 in D
• Temperature Rating: -20 to +70 deg C
• Enclosure Type: IP2X
• Material: Glass Polyester
• Connection Type: Load
• Wire Size: 3 to 350 AWG, 26.7 to 177 sq-mm
