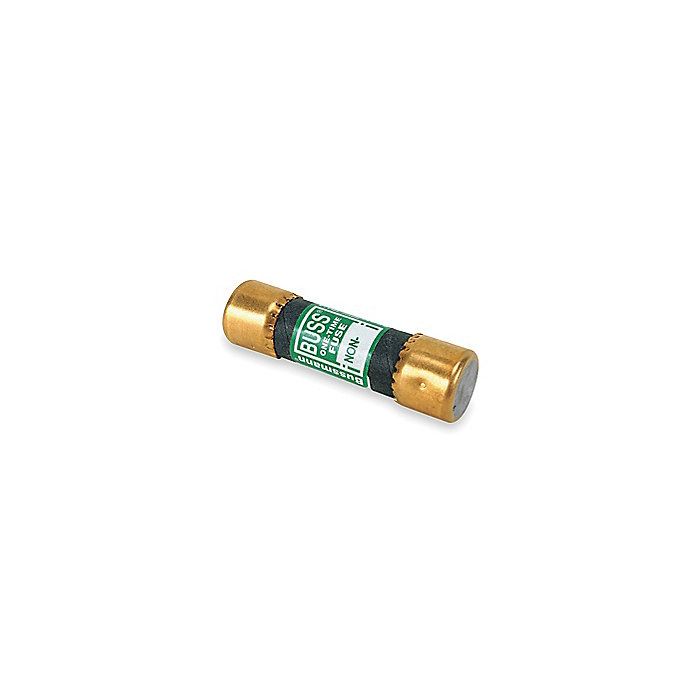

Eaton NON-20 non-current limiting one-time electrical fuse 20 A 250 VAC/125 VDC class K5 cylindrical body

Product Description

The EATON NON-20 is a Bussmann non-current limiting one-time electrical fuse designed for general purpose applications. This 20 A fuse operates at 250 VAC and 125 VDC, providing circuit protection with an interrupting rating of 50 kA. It features a Class K5 classification and a cylindrical body, making it suitable for various electrical systems requiring reliable overcurrent protection. This fuse is non-indicating and utilizes a ferrule terminal for holder mounting.

• Non-Current Limiting design for basic circuit protection.
• One-Time Electrical Fuse for single-event overcurrent protection.
• Rated for 20 A, 250 VAC, and 125 VDC with a 50 kA interrupting rating.

Product Highlights

The EATON NON-20 fuse offers reliable, non-current limiting overcurrent protection for general purpose electrical applications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: NON-20
• Country of Origin: Mexico

Technical Specifications

• Brand: EATON
• MPN: NON-20
• Amperage Rating: 20 A
• Voltage Rating: 250 VAC/125 VDC
• Interrupting Rating: 50 kAIC at 125 Vdc 50 kAIC at 250 Vac
• Class: K5
• Body Type: Cylindrical
• Series: NON
• Type: One-Time Fuse
• Limiting Type: Non-Current-Limiting
• UPC: 05171210157
• Model: NON20
• Application: Bus
• Body Diameter: 0.56 in
• Body Length: 2 in
• Element: Single
• Indicating Type: Non-Indicating
• Material: Melamine
• Mounting Type: Holder
• Rejection Type: Non-Rejection
• Standards/Approvals: cUL Listed|UL Listed|CE Certified
• Connection: Ferrule end x ferrule end
• UL Guide: JDDZ, File E4274
• CSA Certified: Class 1421-01, File 53787
