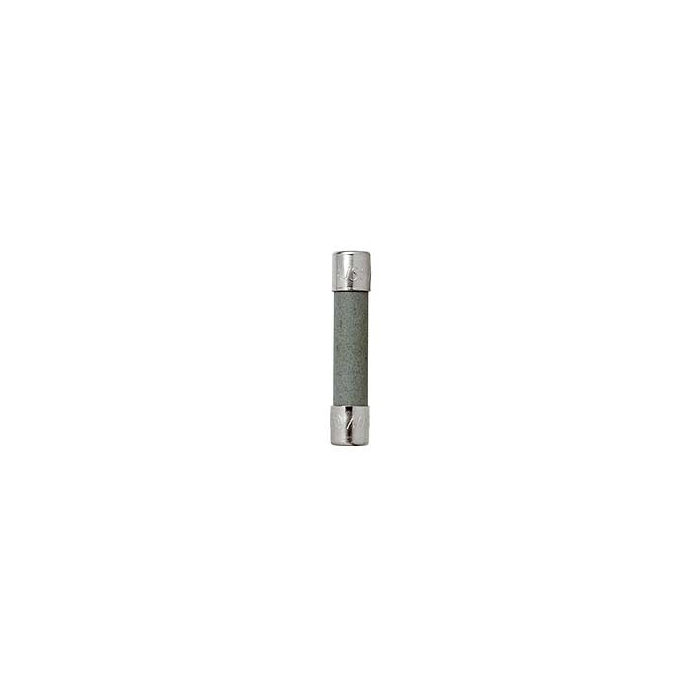

Eaton MDA6-R 6 amp 250V ceramic time delay fuse 1/4 inch x 1 1/4 inches

Product Description

The EATON MDA6-R is a ceramic tube fuse designed for reliable circuit protection. This 6 Amp, 250 Volt AC time-delay fuse features nickel-plated bronze endcaps and a compact physical size of 1/4 inch by 1 1/4 inches. It offers an interrupting rating of 200 AIC at 250 VAC and 10,000 AIC at 125 VAC, making it suitable for various electrical applications requiring robust overcurrent protection. The fuse is UL Listed and CSA Certified, ensuring compliance with safety standards.

• 6 Amps, 250 Volts AC ceramic tube fuse with time delay characteristic.
• Nickel-plated bronze endcaps and compact 1/4 inch x 1 1/4 inch physical size.
• High interrupting ratings: 200 AIC at 250 VAC and 10,000 AIC at 125 VAC.

Product Highlights

EATON MDA6-R 6 Amp 250V ceramic time delay fuse with UL and CSA certifications.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: MDA6-R

Technical Specifications

• SKU: MDA-6-R
• Amperage: 6 Amps
• Voltage: 250 Volts AC
• Fuse Type: Ceramic Tube Fuse
• Characteristic: Time Delay
• Endcaps Material: Nickel-plated bronze
• Physical Size: 1/4 inch x 1 1/4 inches
• AC Voltage Rating: 250V
• Interrupting Rating (250 VAC): 200 AIC
• Interrupting Rating (125 VAC): 10,000 AIC
• UL Listed: MDA 2/10 - 20A (Guide JDYX, File E19180)
• UL Recognized: MDA 25 - 30A (Guide JDYX2, File E19180)
• CSA Certification: MDA 2/10 - 20 (Class No. 1422-01)
• CSA Component Acceptance: MDA 25-30A (Class No. 1422-30)
