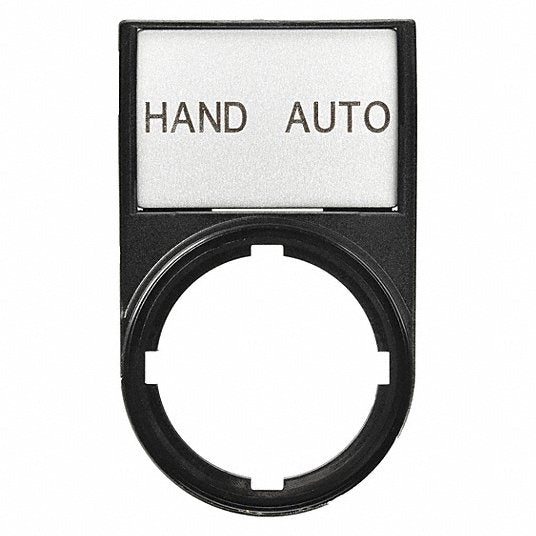

Eaton M22S-ST-D11 M22 Pushbutton Legend Plate HAND AUTO/ D11

Product Description

The Eaton M22S-ST-D11 pushbutton legend plate is a M22 modular pushbutton legend plate. This complete 22.5 mm legend plate features a black button and HAND AUTO inscription with D11 etching code. It is rated IP66, NEMA 4X, and 13.

• Legend plate Holder with Insert
• For use with selector switches
• Heavy-Duty Construction with a Minimum of IP66 and UL NEMA Type 4X/13 on Front of Panel Operators

Product Highlights

The M22S-ST-D11 legend plate is designed for use with selector switches and features a legend plate holder with insert.

Product Information

Standard Information

• Brand: EATON
• Manufacturer Part Number: M22S-ST-D11
• Country of Origin: Germany

Technical Specifications

• Product Name: Eaton M22 pushbutton legend plate
• Catalog Number: M22S-ST-D11
• UPC Code: 786685277257
• Product Height: 1.38 in
• Product Diameter: 1.18 in
• Compliances: CE Marked Bureau Veritas GoST-R
• Certifications: CCC Marked CSA Certified Lloyd's Register Certified
• Catalog Notes: For use with selector switches
• Product Type: Pushbutton accessory
• Special features: Legend plate Holder with Insert
• Type: M22
• Button color: Black
• Series: M22
• Inscription: HAND AUTO
• Environmental rating: IP66, NEMA 4X, NEMA 13
• Etching code: D11
• Size: 22.5 mm
• Accessory Type: Legend Plate
• Brand: Eaton
• Legend: Hand Auto
• Manufacturer Part Number: M22S-ST-D11
• Mounting Hole Size: 22.5 mm
• Shape: Toumbstone
• IP/NEMA Rating: IP66, NEMA 4X
• Family / Style: M22
• For Use With/Related Products: M22 Series
• Packaging: Bag
• Part Status: Active
• Compatible with Series: M22
• Background Color: Black
• Keyway Type: Notch
• Language: English
• Legend Color: Black
• Material: Polyester
• Panel Mounting Hole Diameter: 22 mm
• Product Type 2: Legend Plate
• Manufacturer: Eaton
• Type 2: Contact Blocks and Other Accessories
• Overall Height: 1.4375 in
• Overall Width: 1.3125 in
